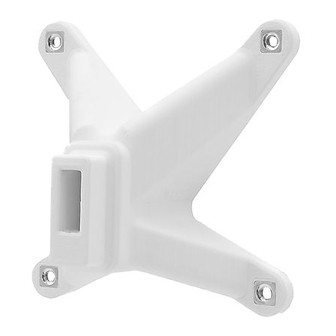

hp-27cr VESA adapter
Assembly
instructions
The VESA adapter is compatible with the following All-in-One PCs from
hp
(hp.com):
24-cr0706ng All-in-One, 27-cr0005ng All-in-One, 27-cr0006ng All-in-One,
27-cr0007ng All-in-One, 27-cr0008ng All-in-One, 27-cr0019na All-in-One,
27-cr0205ng All-in-One, 27-cr0700ng All-in-One, 27-cr0701ng All-in-One,
27-cr0703ng All-in-One
With the VESA adapter, you can easily attach your HP All-in-One PC to a monitor
arm with a VESA hole pattern (75 x 75 mm). Use the supplied screws and nuts for
this.
If you want to attach your VESA adapter directly to the wall, use suitable screws
and wall plugs (not included).
www.3idee.eu

Advertisement

Table of Contents
loading

Related Manuals for 3idee hp-27cr

Summary of Contents for 3idee hp-27cr

  • Page 1 VESA adapter Assembly instructions The VESA adapter is compatible with the following All-in-One PCs from (hp.com): 24-cr0706ng All-in-One, 27-cr0005ng All-in-One, 27-cr0006ng All-in-One, 27-cr0007ng All-in-One, 27-cr0008ng All-in-One, 27-cr0019na All-in-One, 27-cr0205ng All-in-One, 27-cr0700ng All-in-One, 27-cr0701ng All-in-One, 27-cr0703ng All-in-One With the VESA adapter, you can easily attach your HP All-in-One PC to a monitor arm with a VESA hole pattern (75 x 75 mm).

  • Page 2: Important Safeguards

    Assembly instructions Important Safeguards Please read these instructions carefully and keep them for future reference. If you pass the product on to third parties, these instructions should always be included. Failure to follow these instructions may result in injury or damage to persons or the product, for which we cannot accept any liability.

  • Page 3: Waste Disposal

    For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area. 4. Manufacturer Information 3idee Technologies S.à r.l. 5 Um Lenster Bierg L-6125 Junglinster Luxembourg 5.

  • Page 4: Scope Of Delivery Accessories

    Assembly instructions Scope of Delivery Accessories 4x M4x14 Screw with cross 2x M3x20 Screw with cross recess (SP2) recess (SP11)

  • Page 5: Horizontal Mounting

    Assembly instructions Horizontal / Vertical Alignment Please note: Not all VESA adapters and monitors are designed for vertical (upright) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can quickly be exceeded if not installed properly. We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.

  • Page 6: Assembly Instruction

    Assembly instructions Assembly Instruction Step 1 (Preparations before assembly) Place your All-in-One PC on a safe, soft surface. Remove the monitor stand if it is already attached. Step 2 (Preparations before assembly) Loosen the 2 screws that secure the black clip. (Figure 1) Figure 1 Step 3 (Preparations before assembly) First pull the latching mechanism forward and remove the...
  • Page 7 Assembly instructions Step 5 Now attach the VESA adapter using the 2x M3x20 screws supplied from the screw bag (SP11). (Figure 4) Figure 4 Step 6 The two USB ports, which are located directly next to the VESA adapter, are difficult to access once the All-in-One PC has been attached to a monitor arm or wall mount.
  • Page 8 Assembly instructions Step 9 Now check that you have tightened all screws properly. (Figure 8) Figure 8...
