Summary of Contents for thomann STAIRVILLE Beam Moving Head B2R

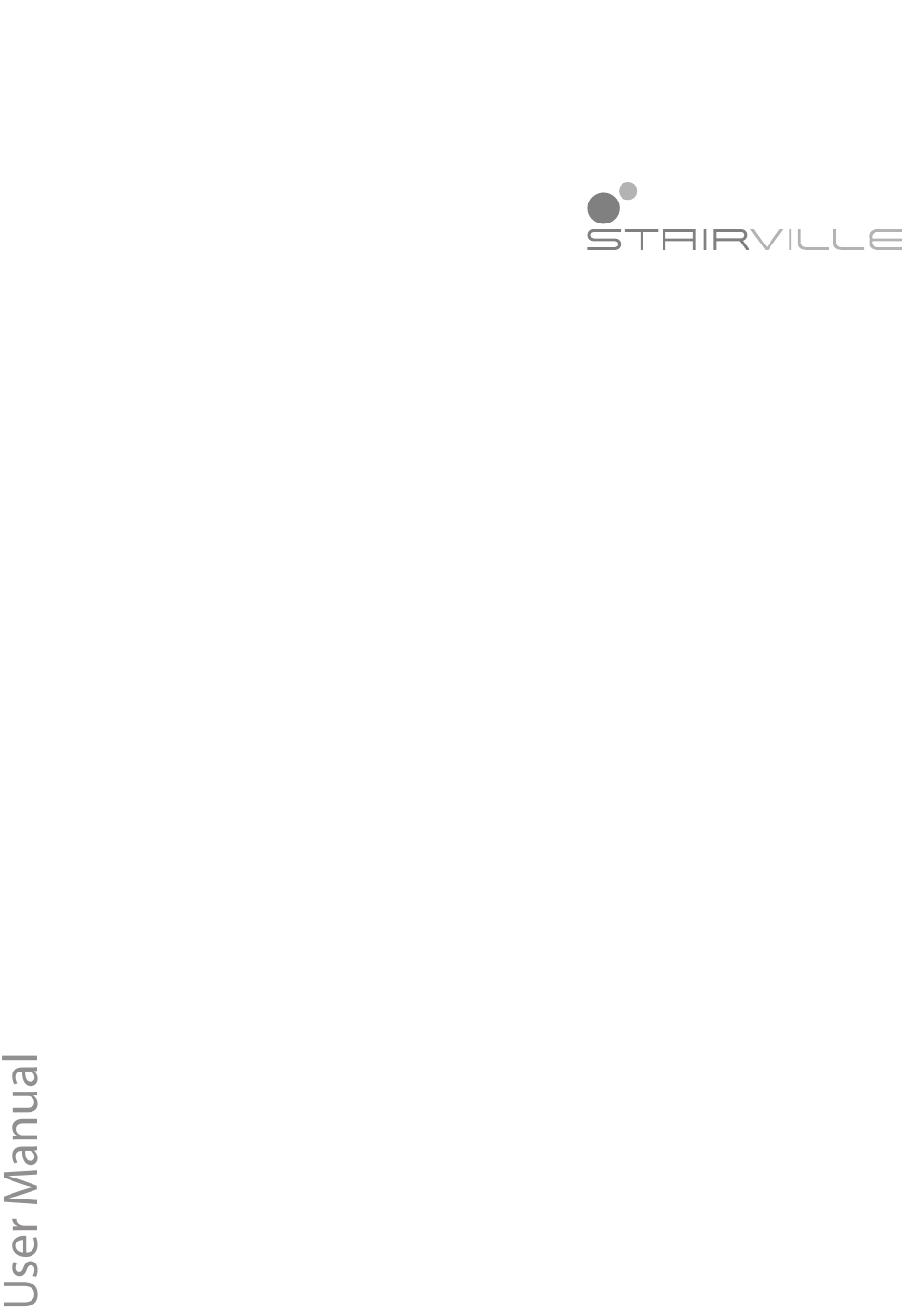

  • Page 1 Beam Moving Head B2R Moving Head...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 19.10.2023, ID: 409533 (V4)
  • Page 3: Table Of Contents

    Table of contents Table of contents General information......................5 1.1 Symbols and signal words................... 5 Safety instructions......................... 6 Features............................8 Installation..........................9 Starting up..........................11 Connections and controls....................12 Operating..........................13 7.1 Starting the device....................... 13 7.2 Operating modes......................13 7.3 Device settings.......................
  • Page 4 Beam Moving Head B2R Moving Head...
  • Page 5: General Information

    Our products and documentation are subject to a process of continuous develop‐ ment. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document.
  • Page 6: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended for use as a freely moving multifunctional spotlight. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage.
  • Page 7 Safety instructions CAUTION! Risk of injury due to unexpected movements of the device! The device head may perform fast movements and generate very bright light. This is the case immediately after the device is switched on, in automatic or remote operation, and when a connected DMX controller is switched off. Persons who are in the immediate vicinity of the device may be injured or frightened by this.
  • Page 8: Features

    Features Features The moving head is particularly suitable for professional lighting tasks, for example at events, on rock stages, in theatres and musicals or in night clubs. Special features of the device: Control via DMX (13 channels) and via buttons and display on the unit Operating modes: Stand-Alone, Sound-Control, Master/Slave, DMX (13 channels) PAN movement: 540°...
  • Page 9: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. Lift the device only at the base.
  • Page 10 Installation NOTICE! Risk of overheating and fire due to improper placement of the light source. Light sources that are operated in the immediate vicinity of flammable materials and are not sufficiently ventilated, can overheat and cause fires. Make sure that flammable materials are more than 12 m away. The dis‐ tance to inflammable materials must be at least 2 m.
  • Page 11: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device.
  • Page 12: Connections And Controls

    Connections and controls Connections and controls ö SIGNAL DMX IN DMX OUT POWER IN POWER OUT MENU DOWN ENTER % & ' ) ( 1 Light aperture 2 Grab handle 3 Display [SIGNAL] | Indicator LED. This LED lights up on incoming signal. [MIC] | Built-in microphone for sound-control.
  • Page 13: Operating

    Operating Operating 7.1 Starting the device CAUTION! Risk of injury due to unexpected movements of the device! The device head may perform fast movements and generate very bright light. This is the case immediately after the device is switched on, in automatic or remote operation, and when a connected DMX controller is switched off.
  • Page 14: Device Settings

    Operating SOUND mode Press [MENU] to open the main menu. Use [UP] and [DOWN] to select the ‘Sound’ menu item and confirm with [ENTER]. Use [UP] and [DOWN] to select the ‘Program’ menu item and confirm with [ENTER]. Now use [UP] and [DOWN] to select one of the available programmes ‘1’ … ‘9’ and confirm with [ENTER].
  • Page 15: Device Info, Reset

    Operating DMX failure Use [UP] and [DOWN] to select the ‘DMX Fail’ menu item and confirm with [ENTER]. Now use [UP] and [DOWN] to select the device response to a DMX signal failure: ‘Hold’ : the device continues to operate in the current mode with the last active DMX values until the signal returns.
  • Page 16: Menu Overview

    Operating ö & 7.6 Menu overview DMX Mode AutoMode SoundMode Slave Settings Info Reset Lamp Address Program Program B2R X.X ReverPan in 10s in 00s ReverTilt Speed Speed B-light XYAUTO DMX Fail Hold Sensor SoundMod Blackout 7.7 Functions in 13-channel DMX mode Channel Value Function...
  • Page 17 Operating Channel Value Function Colour wheel 0…4 White 5…9 White + red 10…14 15…19 Red + orange 20…24 Orange 25…29 Orange + Cyan 30…34 Cyan 35…39 Cyan + Green 40…44 Green 45…49 Green + Light green 50…54 Light green 55…59 Light green + Lavender 60…64 Lavender...
  • Page 18 Operating Channel Value Function 8…11 Gobo 2 12…15 Gobo 3 16…19 Gobo 4 20…23 Gobo 5 24…27 Gobo 6 28…31 Gobo 7 32…35 Gobo 8 36…39 Gobo 9 40…43 Gobo 10 44…47 Gobo 11 48…51 Gobo 12 52…55 Gobo 13 56…59 Gobo 14 60…63...
  • Page 19 Operating Channel Value Function 0…9 Prism closed 10…91 Clockwise rotation 92…173 Counter-clockwise rotation 174…255 Rotation alternately clockwise/counter-clockwise 0…255 Focus, linear Reset 0…79 No function 80…100 Auto mode 101…127 No function 128…149 Lamp on 150…180 Lamp off 181…199 No function 200…255 Reset Beam Moving Head B2R Moving Head...
  • Page 20: Maintenance

    Maintenance Maintenance 8.1 Installing and replacing the lamp DANGER! Risk of death from electrical current! The device contains parts where high voltage is present. Disconnect the device completely from the power supply before opening or removing covers. Do not reconnect the unit until the covers are fully refitted and tightly closed.
  • Page 21 Maintenance WARNING! Danger of burns and eye injuries caused by high light intensity! The light source used in this device produces visible and invisible light beams of high intensity. Looking directly into the light source can damage the eyes. Extended skin exposure can result in burns. Never look directly into the light source.
  • Page 22 Maintenance Procedure Remove one of the covers from the head of the unit. To do this, loosen the four cross-head screws using a suitable screwdriver. Then carefully remove the cover from the unit. Tilt the head to the opposite side. Loosen the four Phillips screws and remove this cover also.
  • Page 23 Maintenance Carefully press down on the light source from above, so that the retainers slightly bend back. Tilt the light source slightly towards you to release it from the bracket. Carefully guide the light source upwards out of the bracket. Unscrew the power supply cables from the old light source and connect the power cables to the new light source.
  • Page 24 Maintenance Close the housing with the two covers and secure them with four cross-head screws each. Beam Moving Head B2R Moving Head...
  • Page 25: Technical Specifications

    Technical specifications Technical specifications Light source Discharge lamp type Osram Sirius HRI, 132 W Light source properties Colour temperature 8500 K Optical properties Beam angle 3° Rotation angle (pan), max. 540° Inclination angle (tilt), max. 270° Dimmer 0 … 100 %, linear Shutter 0.5 …...
  • Page 26: Plug And Connection Assignment

    Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equipment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...
  • Page 27: Troubleshooting

    DMX interface circuit. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Beam Moving Head B2R Moving Head...
  • Page 28: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating envi‐ ronment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.
  • Page 29: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging material For the packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 30 Notes Beam Moving Head B2R Moving Head...
  • Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
