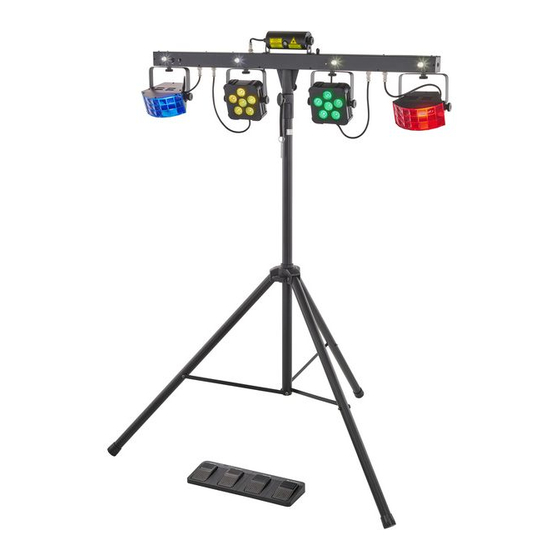

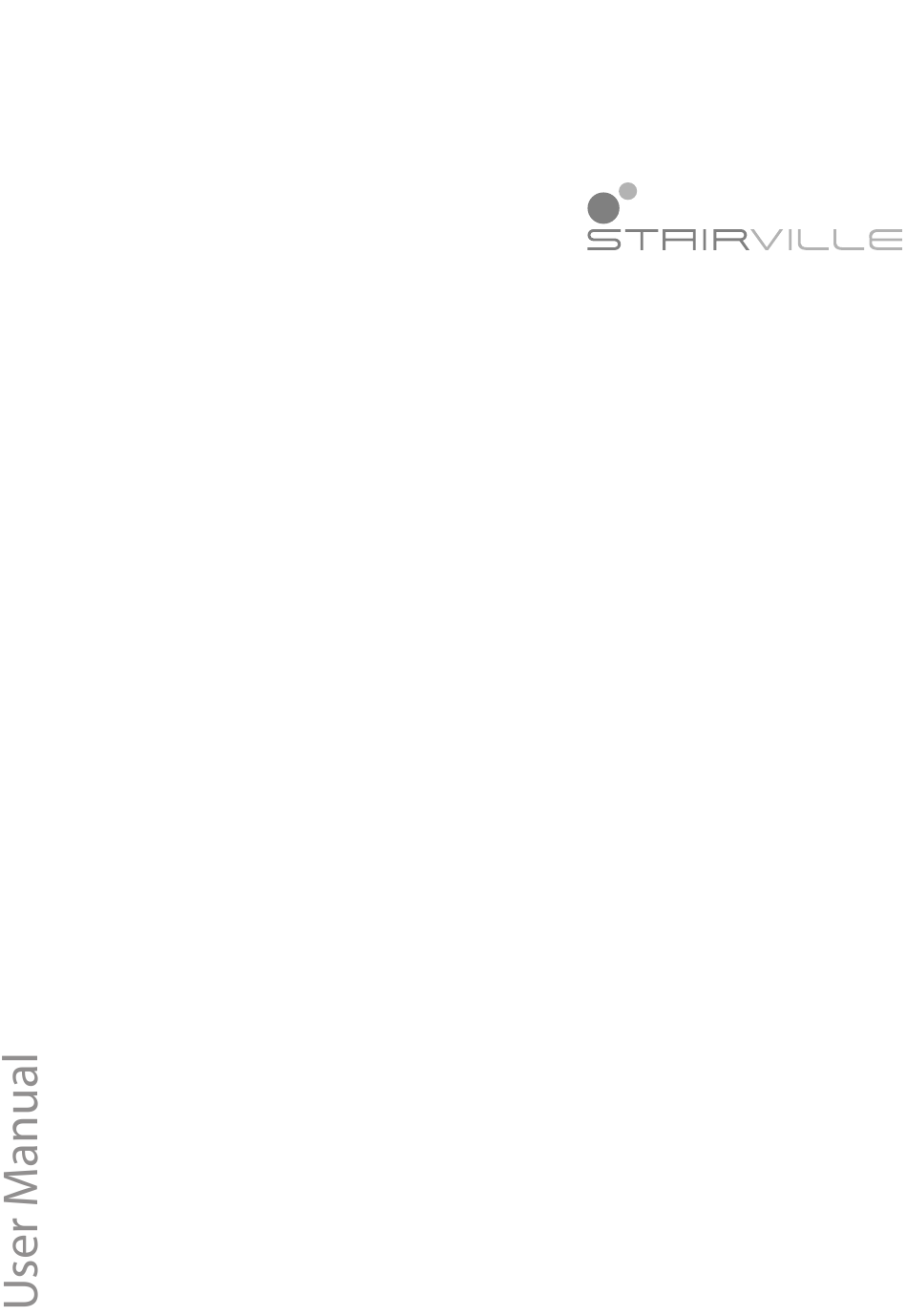

- Page 1 LED BossFx-1 Bundle LED Lighting Set...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 05.10.2023, ID: 424577 (V5)
-
Page 3: Table Of Contents
Table of contents Table of contents General information......................4 1.1 Symbols and signal words................... 4 Safety instructions......................... 5 Features............................8 Installation..........................9 Starting up..........................13 Connections and controls....................14 Operating..........................16 7.1 Starting and stopping operation................16 7.2 Main menu........................16 7.3 Menu overview...................... -
Page 4: General Information
Our products and documentation are subject to a process of continuous develop‐ ment. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. -
Page 5: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED tech‐ nology and for the projection of laser light effects. The device is designed for profes‐ sional use only and is not suitable for use in households. Use the device only as described in this user manual. - Page 6 Safety instructions WARNING! Risk of eye damage caused by high light intensity! The device generates highly intense light radiation. Looking directly into the light source can damage the eyes. Never look directly into the light source. WARNING! Risk of epileptic fit due to flashing lights! The device emits flashing lights (strobe effects).
- Page 7 Safety instructions Duties of the operator As the operator of the laser system, you must comply with legal occupational safety obligations as per the OStrV (in Germany). The following applies in particular: Before putting into service, draw up an assessment of the risk posed by the direct and indirect effects of laser beams in line with the regulations applicable at the operating location.
-
Page 8: Features
Features Features Special features of the device: 2 LED spots each with 6 tricolour LEDs, 9 W each Derby effect with each 6 tricolour LEDs, 3 W each Stroboscope with 4 LEDs, 2 W each (white and ultra-violet) Grading laser with two laser diodes (green and red) Control via DMX (4 different modes), buttons and display on the unit, the sup‐... -
Page 9: Installation
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. WARNING! Risk of injury due to missing or incorrectly dimensioned laser safety glasses! - Page 10 Installation WARNING! Risk of injury due to inadequate warning signals! Persons unable to assess the dangers of a class 3R laser are at increased risk of injury and irreversible damage if such persons are not informed of the use of the laser. Indicate the use of the laser by means of audible or visible warning sig‐...
- Page 11 Installation NOTICE! Data transfer errors due to improper wiring! If the DMX connections are wired incorrectly, this can cause errors during the data transfer. Do not connect the DMX input and output to audio devices, e.g. mixers or amplifiers. Use special DMX cables for the wiring instead of normal microphone cables.
- Page 12 Installation Inserting the battery into the remote Push the lock of the battery holder towards the centre of the housing and pull out control the battery holder like a drawer. Insert the batteries. The battery is correct if the posi‐ tive pole points to the housing base of the remote control.
-
Page 13: Starting Up
This equipment uses a frequency range that is free of charge and registration within the European Union. For more information, please visit: http://www.thomann.de. Make sure that no metal objects are located between transmitter and receiver. Avoid interference by other radio and in-ear systems. -
Page 14: Connections And Controls
Connections and controls Connections and controls Front ö DMX OUT DMX IN MICROPHONE SENSITIVITY REMOTE FUNCTION SETTING POWER INPUT: 100-240V~50/60Hz/130W MENU DOWN ENTER LOCK FUSE: T3.15AL250V &' ( , +) 1 Laser aperture 2 Strobe LEDs 3 Microphone for sound control 4 [IR] | Infrared sensor for the remote control signals 5 [POWER OUTPUT] | IEC chassis socket for the power supply of further devices 6 IEC chassis plug for the power supply with fuse holder... - Page 15 Connections and controls Wireless foot switch & POWER TRANSMITTER AUTO MUSIC COLOR BLACKOUT ö 1 [AUTO] | Activates “Automatic” mode (playback of pre-programmed automatic shows). 2 [MUSIC] | Activates “Sound control” mode (playback of sound-controlled automatic shows). 3 [COLOR] | Starts the automatic colour change or stops it again. 4 [BLACKOUT] | Blacks out all LEDs or turns them back on again.
-
Page 16: Operating
Operating Operating 7.1 Starting and stopping operation WARNING! Risk of injury due to improper operation! There is a risk of injury if the device is not operated properly. Only operate the laser after approval has been granted, and under the supervision of a laser protection representative. - Page 17 Operating The following table shows the setting options in the menu. Main menu Menu level 2 Menu level 3 Meaning ‘Aut’ Operating mode “pre-programmed automatic show” ‘AutP’ Selection of an automatic show for the LED spots and derby effects ( ‘AP01’ … ‘AP18’ ) ‘S.01’...
-
Page 18: Menu Overview
Operating Main menu Menu level 2 Menu level 3 Meaning ‘dXXX’ Setting the DMX address 3-channel: ( ‘001’ … ‘510’ ) 5-channel: ( ‘001’ … ‘508’ ) 10-channel: ( ‘001’ … ‘503’ ) 28-channel: ( ‘001’ … ‘485’ ) ‘SLA’ “Slave”... -
Page 19: Functions In 3-Channel Dmx Mode
Operating 7.4 Functions in 3-channel DMX mode Channel Value Function Operating mode 0…9 Blackout 10…31 Automatic show for the LED spots and derby effects 32…65 Automatic show for the laser 66…95 Automatic show for the strobe LEDs 96…127 Automatic show for all components 128…159 Sound-controlled automatic show for the LED spots and derby effects 160…191... - Page 20 Operating Channel Value Function 140…159 AL05 160…255 AL06 Automatic show for the strobe LEDs, if channel 1 = 66…95 0…14 AF01 15…29 AF02 30…44 AF03 45…59 AF04 60…74 AF05 75…89 AF06 90…104 AF07 105…119 AF08 120…134 AF09 135…149 AF10 150…164 AF11 165…255 AF12...
- Page 21 Operating Channel Value Function 160…169 SP17 170…255 SP18 Sound-controlled automatic show for the laser, if channel 1 = 160…191 0…39 SL01 40…79 SL02 80…119 SL03 120…139 SL04 140…159 SL05 160…255 SL06 Sound-controlled automatic show for the strobe LEDs, if channel 1 = 192…223 0…14 SF01 15…29...
-
Page 22: Functions In 5-Channel Dmx Mode
Operating 7.5 Functions in 5-channel DMX mode Channel Value Function LED spots and derby effects 0…255 Red intensity (0% to 100%) 0…255 Green intensity (0% to 100%) 0…255 Blue intensity (0% to 100%) 0…191 Dimmer (0% to 100%), colour selection with channel 1…3 192…200 Sound-controlled strobe effect (white) 201…249... -
Page 23: Functions In 10-Channel Dmx Mode
Operating 7.6 Functions in 10-channel DMX mode Channel Value Function LED spots and derby effects 0…255 Red intensity (0% to 100%) 0…255 Green intensity (0% to 100%) 0…255 Blue intensity (0% to 100%) 0…191 Overall brightness (0% to 100%) 192…200 Sound-controlled strobe effect 201…249 Strobe effect with increasing speed... - Page 24 Operating Channel Value Function 5…9 LEDs on 10…255 Strobe effect with increasing speed LED BossFx-1 Bundle LED Lighting Set...
-
Page 25: Functions In 28-Channel Dmx Mode
Operating 7.7 Functions in 28-channel DMX mode Channel Value Function Derby effect 1 0…255 Red intensity (0% to 100%) 0…255 Green intensity (0% to 100%) 0…255 Blue intensity (0% to 100%) 0…9 No function 10…255 Strobe effect with increasing speed Motor control 0…4 Stopped... - Page 26 Operating Channel Value Function 134…255 Anti-clockwise rotation, speed increasing Laser Red laser 0…4 Blackout 5…9 Laser on 10…255 Strobe effect with increasing speed Green laser 0…4 Blackout 5…9 Laser on 10…255 Strobe effect with increasing speed Motor control 0…4 Stopped 5…127 Clockwise rotation, speed increasing 128…133...
- Page 27 Operating Channel Value Function 5…9 LEDs on 10…255 Strobe effect with increasing speed LED BossFx-1 Bundle LED Lighting Set...
-
Page 28: Technical Specifications
Technical specifications Technical specifications Light source LED spots: 12 × 9 W RGB LEDs 1500 mm Derby effects: 12 × 3 W RGB LEDs Laser: Green 30 mW / 532 nm, red 100 mW / 650 nm Stroboscope LEDs: 4 × 2-W LEDs (white and ultraviolet) Control DMX, infrared remote control, wireless footswitch, but‐... - Page 29 Technical specifications Further information Colour spectrum Animation laser Grating laser ILDA Power rating 101 to 300 Analogue modulation LED BossFx-1 Bundle LED Lighting Set...
-
Page 30: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equipment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’... -
Page 31: Troubleshooting
Troubleshooting Troubleshooting WARNING! Risk of injury due to improper troubleshooting! There is a risk of injury if troubleshooting is not performed properly. Have all work and repairs on class 3R lasers performed by trained experts. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: Symptom Remedy... -
Page 32: Cleaning
Cleaning Cleaning WARNING! Risk of injury due to improper cleaning! There is a risk of injury if cleaning is not performed properly. To avoid unintentional laser radiation, switch off the laser before you start cleaning the device. Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. -
Page 33: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging material For the packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 34 Notes LED BossFx-1 Bundle LED Lighting Set...
- Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
