Summary of Contents for thomann Varytec Blitz Bar 300 IP

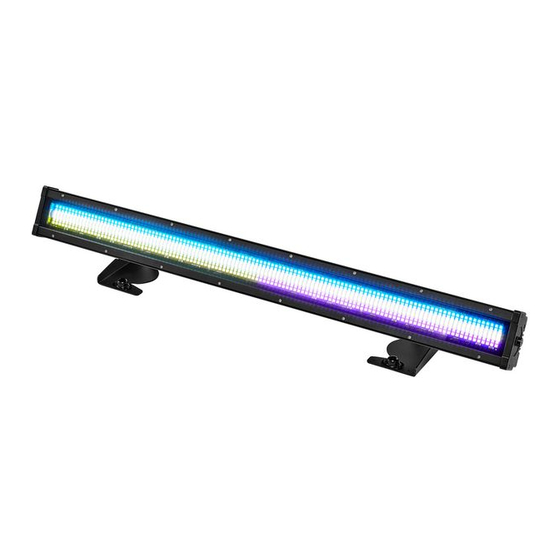

- Page 1 Varytec Blitz Bar 300 IP Strobe...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 05.06.2023, ID: 565046...
-
Page 3: Table Of Contents
7.1 Starting the device........................... 22 7.2 Main menu............................22 7.2.1 DMX address..........................23 7.2.2 DMX mode............................24 7.2.3 Automatic mode........................... 25 7.2.4 Sound control..........................26 7.2.5 Manual colour settings....................... 27 7.3 System settings..........................29 7.4 System information......................... 30 Varytec Blitz Bar 300 IP Strobe... - Page 4 7.6 Functions in 9-channel mode...................... 32 7.7 Functions in 14-channel mode....................35 7.8 Functions in 168-channel mode....................39 Technical specifications........................41 Plug and pin assignments........................44 Troubleshooting............................45 Cleaning............................... 47 Protecting the environment......................48 Varytec Blitz Bar 300 IP Strobe...
-
Page 5: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Varytec Blitz Bar 300 IP... -
Page 6: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 7: Symbols And Signal Words
ð Automatic operation is started. Switch off the device. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. Varytec Blitz Bar 300 IP Strobe... - Page 8 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – dangerous optical radiation. Warning – suspended load. Varytec Blitz Bar 300 IP Strobe...
- Page 9 General information Warning signs Type of danger Warning – danger zone. Varytec Blitz Bar 300 IP Strobe...
-
Page 10: Safety Instructions
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device when covers, safety equipment or optical components are missing or damaged. Varytec Blitz Bar 300 IP Strobe... - Page 11 The ambient temperature must always be below 40 °C (104 °F). NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. Varytec Blitz Bar 300 IP Strobe...
- Page 12 Possible damage due to installation of a wrong fuse The use of different types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used. Varytec Blitz Bar 300 IP Strobe...
-
Page 13: Features
20 built-in chase programmes in automatic mode and sound control Flash rate: 0…25 Hz OLED display with four touch-sensitive buttons Two swivelling mounting brackets with lateral adjustment Fanless due to convection cooling With Omega bracket for safe suspended mounting Varytec Blitz Bar 300 IP Strobe... -
Page 14: Installation
When installing and operating, make sure to follow the standards and regulations that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. Varytec Blitz Bar 300 IP Strobe... - Page 15 Always work from a stable platform whenever installing, moving or servicing the unit. While you do this the area underneath the device must be cordoned off. The safety cable must be attached to the bracket. Varytec Blitz Bar 300 IP Strobe...
- Page 16 Installation Please note that this device must not be connected to a dimmer. Varytec Blitz Bar 300 IP Strobe...
-
Page 17: Starting Up
Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). Varytec Blitz Bar 300 IP Strobe... - Page 18 Connect the DMX output of the master device to the DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. Varytec Blitz Bar 300 IP Strobe...
-
Page 19: Connections And Operating Elements
Connections and operating elements Connections and operating elements Front ö ö 1 RGB LEDs 2 CW LEDs Varytec Blitz Bar 300 IP Strobe... - Page 20 6 [MENU] | Activates the main menu for selecting the operating mode 7 [UP] | Increases the displayed value by one. 8 [DOWN] | Decreases the displayed value by one. 9 [ENTER] | Selects an option of the respective operating mode, confirms the displayed value. Varytec Blitz Bar 300 IP Strobe...
- Page 21 Connections and operating elements 10 [POWER OUT] | Lockable output socket (Power Twist) for powering further devices 11 [DMX OUT] | DMX output, designed as XLR panel socket, 3-pin Varytec Blitz Bar 300 IP Strobe...
-
Page 22: Operation
When the display shows the desired value, confirm with [ENTER]. To exit a menu item without making changes, press [MENU]. All previously made settings are retained even when you disconnect the device from the power grid. Varytec Blitz Bar 300 IP Strobe... -
Page 23: Dmx Address
DMX address for the various DMX modes. Mode Highest possible DMX address 9-channel mode 14-channel mode 168-channel mode When the display shows the desired value, confirm with [ENTER]. Varytec Blitz Bar 300 IP Strobe... -
Page 24: Dmx Mode
Press [UP] or [DOWN] until the display shows ‘DMX’ , then confirm with [ENTER]. Press [UP] or [DOWN] to select the desired DMX mode. Menu level 3 Function ‘9CH’ 9-channel mode ‘14Ch’ 14-channel mode ‘168Ch’ 168-channel mode When the display shows the desired value, confirm with [ENTER]. Varytec Blitz Bar 300 IP Strobe... -
Page 25: Automatic Mode
[ENTER]. ð The display shows ‘SP’ . Use [UP] or [DOWN] to set the run speed of the program in the range of ‘Sp 01’ (slow)… ‘Sp 99’ (fast) and confirm with [ENTER]. Varytec Blitz Bar 300 IP Strobe... -
Page 26: Sound Control
[ENTER]. ð The display shows ‘SP’ . Use [UP] or [DOWN] to set the run speed of the program in the range of ‘Se 01’ (slow)… ‘Se 99’ (fast) and confirm with [ENTER]. Varytec Blitz Bar 300 IP Strobe... -
Page 27: Manual Colour Settings
Running speed of strobe LEDs ‘35 Str’ ‘000’ … ‘255’ Flash rate of strobe LEDs ‘50 Show’ ‘000’ … ‘255’ Brightness of ambient LEDs ‘50 Sp’ ‘000’ … ‘255’ Running speed of ambient LEDs Varytec Blitz Bar 300 IP Strobe... - Page 28 ‘000’ … ‘255’ Brightness of red ambient LEDs ‘50BG-G’ ‘000’ … ‘255’ Brightness of green ambient LEDs ‘50BG-B’ ‘000’ … ‘255’ Brightness of blue ambient LEDs When the display shows the desired value, confirm with [ENTER]. Varytec Blitz Bar 300 IP Strobe...
-
Page 29: System Settings
‘off’ Normal display. ‘DMX Fail’ Device behaviour on DMX signal failure ‘Blackout’ The device is blacked out. ‘Manual’ Manual control is executed. ‘Auto’ An automatic run is executed. ‘Hold’ The last settings are retained. Varytec Blitz Bar 300 IP Strobe... -
Page 30: System Information
‘Firm Ware’ Displays the current firmware version. ‘Time Info’ Displays the total running time of the device. ‘Temperature’ Displays the current temperature of the device. When the display shows the desired value, confirm with [ENTER]. Varytec Blitz Bar 300 IP Strobe... -
Page 31: Menu Overview
Time Info A512 Temperature 14Ch 168Ch Green Display Rev Auto Blue White Prog DMX Fail 35 Show 35 Sp Blackout 35 Str Manual Sound 50 show Auto 50 Sp Hold 50 Str 50BG-R 50BG-G 50BG-B Varytec Blitz Bar 300 IP Strobe... -
Page 32: Functions In 9-Channel Mode
Automatic show white 3 044…055 Automatic show white 4 056…067 Automatic show white 5 068…079 Automatic show white 6 080…091 Automatic show white 7 092…103 Automatic show white 8 104…115 Automatic show white 9 Varytec Blitz Bar 300 IP Strobe... - Page 33 Running speed of automatic show white, rising (if channel 5 = 8…255) Strobe LED 0…255 Strobe, increasing speed (0% to 100%) Ambient LED 0…007 No function 008…012 Automatic show RGB 1 013…016 Automatic show RGB 2 Varytec Blitz Bar 300 IP Strobe...
- Page 34 Automatic show RGB 5 029…032 Automatic show RGB 6 … … 248…251 Automatic show RGB 61 252…255 Automatic show RGB 62 Ambient LED 0…255 Running speed of automatic show RGB, rising (if channel 7 = 8…255) Varytec Blitz Bar 300 IP Strobe...
-
Page 35: Functions In 14-Channel Mode
Automatic show white 3 044…055 Automatic show white 4 056…067 Automatic show white 5 068…079 Automatic show white 6 080…091 Automatic show white 7 092…103 Automatic show white 8 104…115 Automatic show white 9 Varytec Blitz Bar 300 IP Strobe... - Page 36 Running speed of automatic show white, rising (if channel 5 = 8…255) Strobe LED 0…8 No strobe 9…255 Strobe, increasing speed (0% to 100%) Ambient LED 0…7 No function 8…12 Automatic show RGB 1 Varytec Blitz Bar 300 IP Strobe...
- Page 37 RGB strobe, increasing speed (0% to 100%) Ambient LED 0…255 Red background (0 % to 100 %) Ambient LED 0…255 Green background (0 % to 100 %) Ambient LED 0…255 Blue background (0 % to 100 %) Varytec Blitz Bar 300 IP Strobe...
- Page 38 Operation Channel Value Function Ambient LED 0…127 Normal direction 128…255 Reverse direction Varytec Blitz Bar 300 IP Strobe...
-
Page 39: Functions In 168-Channel Mode
Green intensity 2 (0 % to 100 %) Ambient LED 0…255 Blue intensity 2 (0 % to 100 %) Ambient LED 0…255 Red intensity 3 (0 % to 100 %) Ambient LED 0…255 Green intensity 3 (0 % to 100 %) Varytec Blitz Bar 300 IP Strobe... - Page 40 … Ambient LED 0…255 Red intensity 48 (0 % to 100 %) Ambient LED 0…255 Green intensity 48 (0 % to 100 %) Ambient LED 0…255 Blue intensity 48 (0 % to 100 %) Varytec Blitz Bar 300 IP Strobe...
-
Page 41: Technical Specifications
CRI RA of 70 Optical properties Beam angle 60° (strobe) and 180° (ambient) Control DMX, buttons and display on the unit Number of DMX channels 9, 14, 168 Input connections Power supply Lockable input socket (Power Twist) Varytec Blitz Bar 300 IP Strobe... - Page 42 0…25 Hz Mounting options Hanging, standing Dimensions (W × H × D) 1,000 mm × 150 mm × 125 mm Weight 11.5 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) Varytec Blitz Bar 300 IP Strobe...
- Page 43 Technical specifications Further information Suitable for outdoor use Fanless Remote control Not possible Wireless DMX Housing Metal Housing colour Black Varytec Blitz Bar 300 IP Strobe...
-
Page 44: Plug And Pin Assignments
The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) Varytec Blitz Bar 300 IP Strobe... -
Page 45: Troubleshooting
No response to the DMX con‐ 1. Check whether the DMX cables run near or parallel to troller high-voltage cables that may cause damage or interfer‐ ence to a DMX interface circuit. 2. Try using another DMX controller. Varytec Blitz Bar 300 IP Strobe... - Page 46 Troubleshooting If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Varytec Blitz Bar 300 IP Strobe...
-
Page 47: Cleaning
Clean with a dry soft cloth. Stubborn dirt can be removed with a slightly dampened cloth. Never use solvents or alcohol for cleaning. Varytec Blitz Bar 300 IP Strobe... -
Page 48: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Varytec Blitz Bar 300 IP Strobe... - Page 49 Notes Varytec Blitz Bar 300 IP Strobe...
- Page 50 Notes Varytec Blitz Bar 300 IP Strobe...
- Page 52 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
