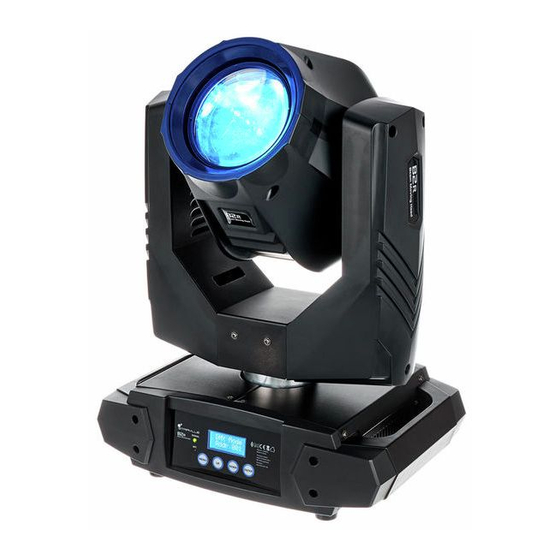

thomann STAIRVILLE Beam Moving Head B2R User Manual

Hide thumbs Also See for STAIRVILLE Beam Moving Head B2R:
Table of Contents

Advertisement

Quick Links

Beam Moving Head B2R
moving head
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAIRVILLE Beam Moving Head B2R and is the answer not in the manual?

Questions and answers

Related Manuals for thomann STAIRVILLE Beam Moving Head B2R

Summary of Contents for thomann STAIRVILLE Beam Moving Head B2R

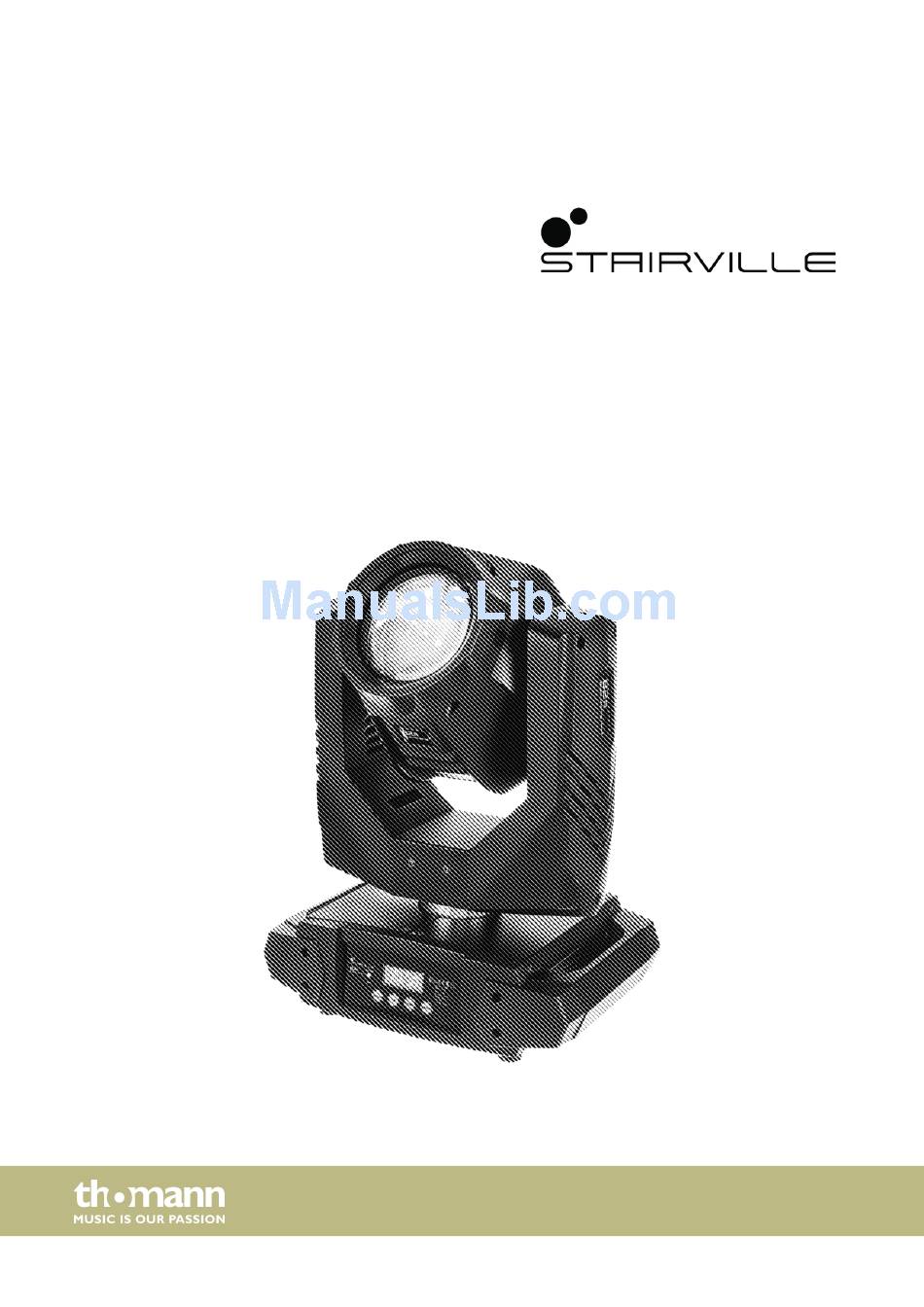

  • Page 1 Beam Moving Head B2R moving head user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 27.07.2017, ID: 409533...

  • Page 3: Table Of Contents

    Table of contents Table of contents General notes..........................4 1.1 Further information......................4 1.2 Notational conventions....................4 1.3 Symbols and signal words................... 5 Safety instructions......................... 6 Features............................9 Installation..........................10 Starting up..........................12 Connections and controls....................13 Operating..........................15 7.1 Starting the device....................... 15 7.2 Operating modes......................

  • Page 4: General Notes

    Our products are subject to a process of continuous development. Thus, they are subject to change. 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download.

  • Page 5: Symbols And Signal Words

    General notes 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided.

  • Page 6: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used as moving-head spotlight. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage.
  • Page 7 Safety instructions WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. WARNING! Risk of injury caused by falling objects Make sure that the installation complies with the standards and rules that apply in your country.
  • Page 8 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. The device must not be moved while it is in use. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet)

  • Page 9: Features

    Features Features The moving head is particularly suitable for professional lighting tasks, for example at events, on rock stages, in theatres and musicals or in night clubs. Special features of the device: Control via DMX (13 channels) and via buttons and display on the unit Operating modes: Stand-Alone, Sound-Control, Master/Slave, DMX (13 channels) PAN movement: 540°...

  • Page 10: Installation

    Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. Lift the device only at the base.
  • Page 11 Installation NOTICE! Fire and overheating hazard The distance between the light source and flammable materials must be greater than 12 m. The distance to non-inflammable materials must be greater than 2 m. Always ensure sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). NOTICE! Possible damage caused by movements of the device Always ensure that enough space is free around the device for the...

  • Page 12: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device.

  • Page 13: Connections And Controls

    Connections and controls Connections and controls 1 Light aperture 2 Grab handle 3 Display [SIGNAL] LED display. This LED lights up on incoming signal. [MIC] Integrated microphone for music control. [MENU] Activates the main menu and toggles between menu items. Closes an opened submenu. [UP] Increases the displayed value by one.
  • Page 14 Connections and controls 6 [POWER IN] Lockable Power Twist input socket for power supply. 7 [POWER OUT] Lockable Power Twist output socket to supply further devices. 8 Fuse holder moving head...

  • Page 15: Operating

    Operating Operating 7.1 Starting the device CAUTION! Risk of injury due to movements of the device The head of the device can move quickly (pan, tilt) and can produce very bright light. This is also valid immediately after you turn on the device, when the device operates in automatic mode or under remote control and when you turn off a DMX controller that is connected to the device.

  • Page 16: System Settings

    Operating Operating mode SOUND Press [MENU] to open the main menu. Use [UP] and [DOWN] to select the menu item ‘Sound’ and confirm with [ENTER]. Use [UP] and [DOWN] to select the menu item ‘Program’ and confirm with [ENTER]. Now use [UP] and [DOWN] to select one of the available programmes ‘1’ … ‘9’ and confirm with [ENTER].

  • Page 17: Device Info, Reset

    Operating Display backlighting Use [UP] and [DOWN] to select the menu item ‘B-light’ and confirm with [ENTER]. Now use [UP] and [DOWN] to select the option ‘On’ (turn on display backlighting) or ‘Off’ (turn off display backlighting). Confirm with [ENTER] to save your setting. Press [MENU] to return to the previous menu level.

  • Page 18: Gobos

    Operating 7.5 Gobos The following figure shows the available gobos as well as their numbers. 7.6 Menu overview 7.7 Functions in 13-channel DMX mode Channel Value Function 0…255 Pan movement 0…255 Pan movement fine adjustment 0…255 Tilt movement moving head...
  • Page 19 Operating Channel Value Function 0…255 Tilt movement fine adjustment 0…255 Pan and tilt speed 0…255 Shutter (0 … 100 %) 0…9 Light is blacked out 10…127 Strobe effect, increasing speed 128…249 Strobe effect with random control, increasing speed 250…255 Light is constantly on Colour wheel 0…4 White...
  • Page 20 Operating Channel Value Function 120…124 White (4000 K) 125…129 White (4000 K) + White (10000 K) 130…134 White (10000 K) 135…139 White (10000 K) + Dark blue 140…149 Dark blue 150…154 Dark blue + white 155…205 Rainbow effect, increasing speed 206…255 Rainbow effect, reversed Gobos...
  • Page 21 Operating Channel Value Function 92…95 Gobo 8 shake 96…99 Gobo 7 shake 100…103 Gobo 6 shake 104…107 Gobo 5 shake 108…111 Gobo 4 shake 112…115 Gobo 3 shake 116…119 Gobo 2 shake 120…123 Gobo 1 shake 124…127 Gobo open shake 128…192 Rotation of the gobo wheel clockwise, increasing speed 193…255...

  • Page 22: Maintenance

    Maintenance Maintenance 8.1 Installing / replacing the illuminant DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Completely disconnect the device from the power supply before you open or remove covers. Mount all covers and attach them firmly before connecting the device again.
  • Page 23 Maintenance WARNING! Danger of burns and eye injuries caused by high light intensity The light source used in this device produces visible and invisible light beams of high intensity. Never look directly into the light source. Do not use the device when covers, shieldings, lenses or other optical components are missing or damaged.
  • Page 24 Maintenance Requirements Make sure that the device is turned off, disconnected from the mains and completely cooled down. moving head...
  • Page 25 Maintenance Procedure Remove one of the covers from the head of the unit. To do this, loosen the four cross-head screws using a suitable screwdriver. Then carefully remove the cover from the unit. Tilt the head to the opposite side. Loosen the four Phillips screws and remove this cover also.
  • Page 26 Maintenance Align the head of the unit so that the metal brackets of the illuminant are aligned as shown in the figure. Carefully press down on the illuminant from above, so that the retainers slightly bend back. Tilt the illuminant slightly towards you to release it from the bracket.
  • Page 27 Maintenance Fasten the small metal plate with the two screws on the back. Close the housing with the two covers and secure them with four cross-head screws each. Beam Moving Head B2R...

  • Page 28: Technical Specifications

    Technical specifications Technical specifications Number of DMX channels Illuminant Discharge lamp type Osram Sirius HRI, 132 W Dispersion angle 3° Maximum rotation angle (pan) 540° Maximum inclination angle 270° (tilt) Dimmer 0 … 100 %, linear Shutter 0.5 … 9 Hz Operating supply voltage 100 –...

  • Page 29: Plug And Connection Assignment

    Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equipment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...

  • Page 30: Troubleshooting

    4. Check to see if the DMX cables run near or alongside to high voltage cables that may cause damage or interference to DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. moving head...

  • Page 31: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating envi‐ ronment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 32: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging material For the packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 33 Notes Beam Moving Head B2R...
  • Page 34 Notes moving head...
  • Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
