  • Page 1 40-528/529 User Manual PXI 2 Amp 1-Pole High Density Matrix Module pickeringtest.com Issue 2.2 February 2020...
  • Page 2 © COPYRIGHT (2020) PICKERING INTERFACES. ALL RIGHTS RESERVED. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
  • Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

  • Page 4: Product Safety

    PRODUCT SAFETY SAFETY SYMBOLS The following safety symbols may be used on the product and throughout the product documentation. MEANING / DESCRIPTION SYMBOL PROTECTIVE EARTH (GROUND) To identify any terminal which is intended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth (ground) electrode.

  • Page 5: Table Of Contents

    CONTENTS Copyright Statement ..............II Technical Support and Warranty ..........III Product Safety ................IV Contents (this page) ..............V Warnings and Cautions ..............VII Section 1 Technical Specification ...............1.1 Section 2 Technical Description ..............2.1 Functional Description ............2.1 Section 3 Installation ..................3.1 Pre Operation Checks ............3.1 Hardware Installation ............3.2...
  • Page 6 THIS PAGE INTENTIONALLY BLANK 2 AMP 1-POLE HIGH DENSITY MATRIX 40-528/529 Page vi...

  • Page 7: Warnings And Cautions

    Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale. This module must not be used for the switching of Mains Circuits. For the switching of voltages up to the module’s full specification, Secondary Circuit power supplies and the Device Under Test must...
  • Page 8 CAUTION - PRODUCT DOCUMENTATION SYMBOL Suitably qualified & trained users should ensure that the accompanying documentation is fully read and understood before attempting to install or operate the product. SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O signals (refer to the Maintenance Section).

  • Page 9: Technical Specification

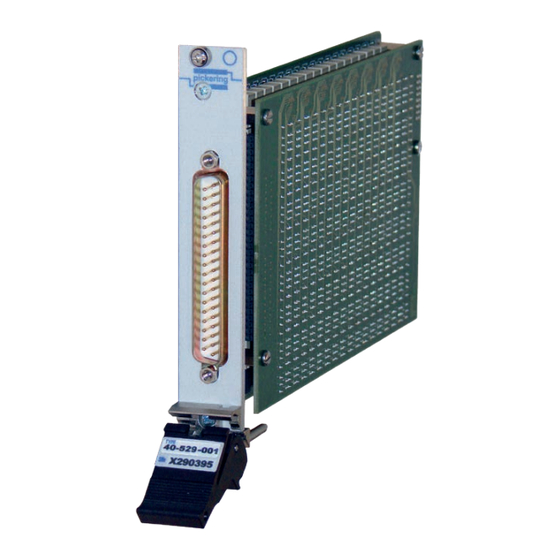

    The user signal connection is via a robust 50 or 37-pin D-Type connector that is fully supported by the wide range of Pickering Interfaces cable and connector accessories. 40-529-001 2 Amp 1-Pole 40-528-001 2 Amp 1-Pole 32x4 Matrix 16x8 Matrix pickeringtest.com...
  • Page 10 SECTION 1 - TECHNICAL SPECIFICATION pickering Specifications 2A 1-Pole HD Matrix – 40-528/529 Switching Specification Mechanical Characteristics Single slot 3U PXI (CompactPCI card). Switch Type: Electro-mechanical 3D models for all versions in a variety of popular file formats are Contact Type: Palladium-Ruthenium, Gold available on request.
  • Page 11 Kits of replacement relays are available for the majority of Pickering’s PXI switching products, simplifying servicing and Product Customization reducing down-time. Pickering PXI modules are designed and manufactured on our own Product Relay Kit flexible manufacturing lines, giving complete product control and...
  • Page 12 We provide a full range of supporting cable and connector solutions for all our switching products—20 connector families with 1200+ products. We offer everything from simple mating connectors to complex cables assemblies and terminal blocks. All assemblies are manufactured by Pickering and are guaranteed to mechanically and electrically mate to our modules. Connectors & Backshells...
  • Page 13 2A 1-Pole HD Matrix – 40-528/529 Programming Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of Windows and popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os...
  • Page 14 SECTION 1 - TECHNICAL SPECIFICATION pickering THIS PAGE INTENTIONALLY BLANK Page 1.6 2 AMP 1-POLE HIGH DENSITY MATRIX 40-528/529...

  • Page 15: Functional Description

    SECTION 2 - TECHNICAL DESCRIPTION pickering SECTION 2 - TECHNICAL DESCRIPTION FUNCTIONAL DESCRIPTION A functional block diagram is provided in Figure 2.1. The Module is powered by the +5V and +3.3V supplies from the PXI backplane via Compact PCI connector J1. The interface to the user’s equipment is via the front panel mounted 50-pin or 37-pin D-type male connector, J2.
  • Page 16 SECTION 2 - TECHNICAL DESCRIPTION pickering THIS PAGE INTENTIONALLY BLANK Page 2.2 2 AMP 1-POLE HIGH DENSITY MATRIX 40-528/529...

  • Page 17: Installation

    Modular products require installation in a suitable PXI/LXI chassis. The module is designed for indoor use only. PREOPERATION CHECKS (UNPACKING) 1. Check the module for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident.

  • Page 18: Hardware Installation

    For a system comprising more than one chassis, turn ON the last chassis in the system followed by the penultimate, etc, and finally turn ON the external controller or chassis containing the system controller. 9. For Pickering Interfaces modular LXI installation there is no requirement to use any particular power up sequence.

  • Page 19: Testing Operation

    Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card.
  • Page 20 SECTION 3 - INSTALLATION pickering THIS PAGE INTENTIONALLY BLANK Page 3.4 2 AMP 1-POLE HIGH DENSITY MATRIX 40-528/529...

  • Page 21: Programming Guide

    SECTION 4 - PROGRAMMING PROGRAMMING OPTIONS FOR PICKERING INTERFACES PXI MODULES For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. This is available as a download from: https://www.pickeringtest.com/support/software-drivers-and-downloads...

  • Page 22: Programming The High Density Matrix

    SECTION 4 - PROGRAMMING GUIDE pickering PROGRAMMING THE HIGH DENSITY MATRIX The 40-528 is a single pole switching matrix with 32 connections on the X-axis and 4 connections on the Y-axis. Connections are made by operating the relays at the crosspoints between X and Y lines allowing single X-Y connections, or X-X connections using a Y line as a path.

  • Page 23: Using Ivi Driver, Direct Driver Or Visa Driver

    Once the drivers are installed the manual “Sys40Prg.pdf” and driver help files which fully describes these functions can be found in the Pickering folder(s) or the Pickering entries on your Start Menu. The card must be opened before use and closed after using the following function calls: Direct Driver - Open with PIL_OpenCards or PIL_OpenSpecifiedCard and close with PIL_CloseCards or PIL_CloseSpecifiedCards respectively.
  • Page 24 SECTION 4 - PROGRAMMING GUIDE pickering THIS PAGE INTENTIONALLY BLANK 2 AMP 1-POLE HIGH DENSITY MATRIX 40-528/529 Page 4.4...
  • Page 25 SECTION 5 - CONNECTOR INFORMATION pickering SECTION 5 - CONNECTOR INFORMATION 50-pin D-Type Plug Pin No. Signal Pin No. Signal Pin No. Signal FP_GND FP_GND FP_GND FP_GND FP_GND FP_GND FP_GND FP_GND Figure 5.1 - 2 Amp 1-Pole 32x4 Matrix Module 40-528-001: 50-pin D-Type Front Panel Male Connector Pinout.
  • Page 26 SECTION 5 - CONNECTOR INFORMATION pickering 37-pin D-Type Plug Pin No. Signal Pin No. Signal FP_GND FP_GND FP_GND FP_GND Figure 5.2 - 2 Amp 1-Pole 16x8 Matrix Module 40-529-001: 37-pin D-type Front Panel Male Connector Pinout. Page 5.2 2 AMP 1-POLE HIGH DENSITY MATRIX 40-528/529...

  • Page 27: Troubleshooting

    PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the best course is to contact Pickering support: support@pickeringtest.com, if possible including a copy of the...

  • Page 28: Using The Built In Relay Self Test (Birst)

    BIRST OPERATION The Pickering Interfaces BIRST tool is available on some PXI and LXI modules. This test tool uses a separate application program which runs a test routine to identify defective relays in a module by measuring the path resistance of defined routes within the matrix.

  • Page 29: Maintenance Information

    For PXI modules which are supported in one of Pickering Interfaces’ Modular LXI Chassis (such as the 60-102 and 60-103) no module software update is required. If the module was introduced after the LXI chassis was manufactured the module may not be recognized, in this case the chassis firmware may need upgrading.
  • Page 30 SECTION 7 - MAINTENANCE INFORMATION pickering 40-528 RELAY LOOK-UP TABLES The following table cross-references the module’s matrix crosspoints to the physical relays on the PCBs. This is for fault finding purposes and should be used in conjunction with the PCB layout diagrams in Figure 7.1 and 7.2.
  • Page 31 SECTION 7 - MAINTENANCE INFORMATION pickering Figure 7.1- 40-528 Component Layout - Mother Board Figure 7.2 - 40-528 Component Layout - Daughter Board Page 7.3 2 AMP 1-POLE HIGH DENSITY MATRIX 40-528/529...
  • Page 32 SECTION 7 - MAINTENANCE INFORMATION pickering 40-529 RELAY LOOK-UP TABLES The following table cross-references the module’s matrix crosspoints to the physical relays on the PCBs. This is for fault finding purposes and should be used in conjunction with the PCB layout diagrams in Figure 7.3 and 7.4.
  • Page 33 SECTION 7 - MAINTENANCE INFORMATION pickering Figure 7.3 - 40-529 Component Layout - Mother Board Figure 7.4 - 40-529 Component Layout - Daughter Board Page 7.5 2 AMP 1-POLE HIGH DENSITY MATRIX 40-528/529...
  • Page 34 SECTION 7 - MAINTENANCE INFORMATION pickering THIS PAGE INTENTIONALLY BLANK Page 7.6 2 AMP 1-POLE HIGH DENSITY MATRIX 40-528/529...
