TIS LUNA-BEDSIDE Installation Manual

INSTALLATION MANUAL
LUNA BEDSIDE PANEL

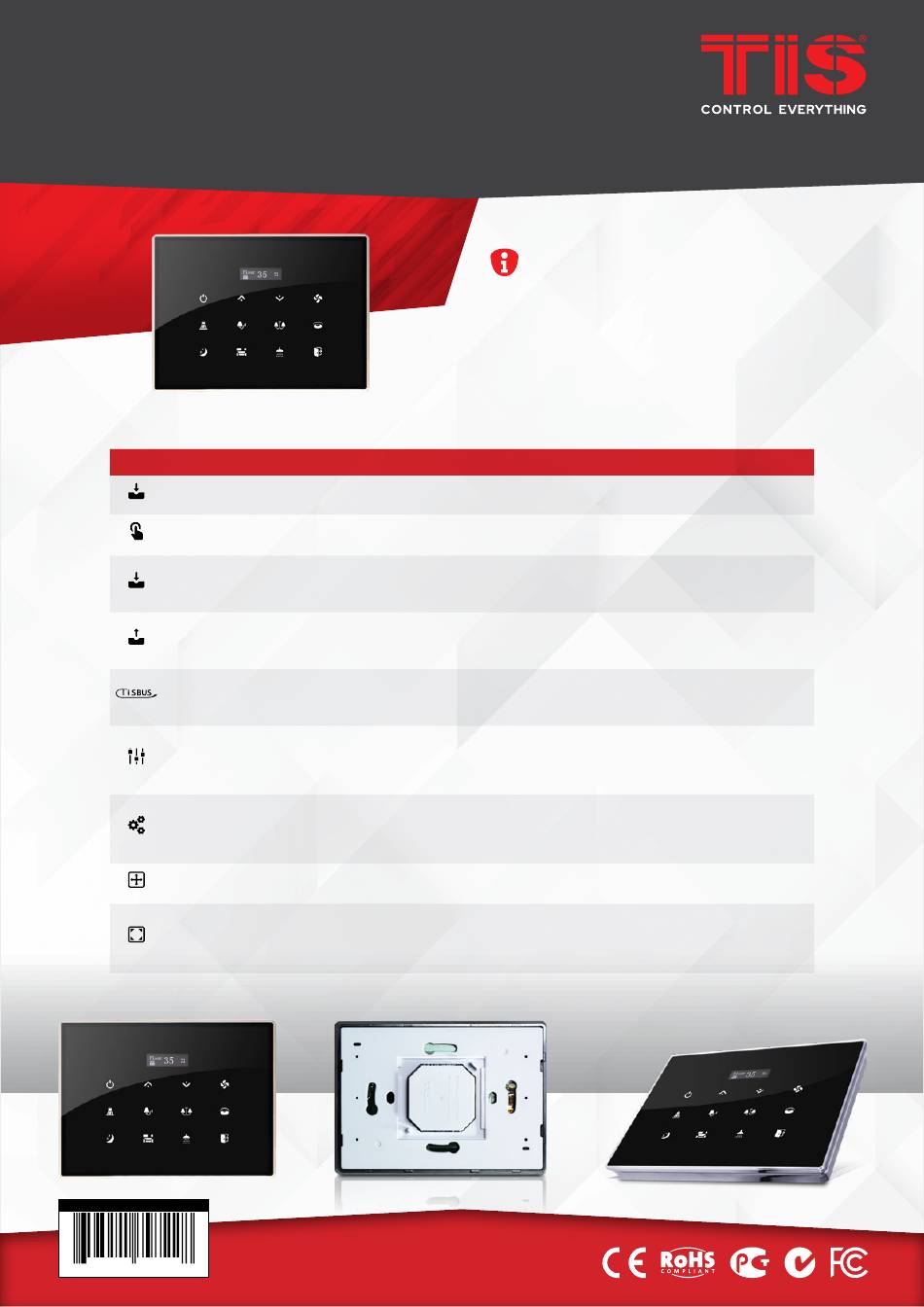

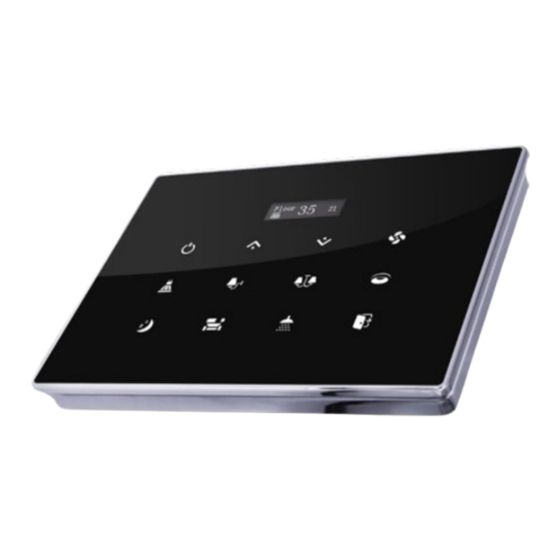

Bedside Touch Panel
MODEL: LUNA-BEDSIDE
OLED
Touch
Input
Output
TIS Bus
Operation
Functions
Dimensions
Housing
BARCODE (UPC-A)
6 58921 79722 8
This product is a BUS-operated wall panel with
touch buttons for smart control over lights, curtains,
indoor climate, appliances, and preset scenarios.
This switch is remotely conrollable and applicable
in various types of buildings.
P R O D U C T S P E C I F I C AT I O N S
Size
Active area
Touch type
Temp sensor
IR receiver
Using panel addition
Using panel addition 3R
Using panel addition 3DL-12V
Using panel addition 2DL-IRE
Number of devices on 1 line
Bus voltage
Current consumption
Touch buttons
Backlight
TIS bus
Upgrading
1 Press
Long press
Double click
IR receiver
Width × length × height
Materials
Casing color
Internal parts color
IP rating
PRODUCT INFORMATION
0.9"
4.3"
Capacitive
Resistive temp sensor
TIS infrared code receiver
2-3 Digital input
3 Relay output 3A/5A
12V DC 50mA output
IR Emitter
Max. 64
12-32 V DC
<45 mA / 24 V DC
12 buttons for AC / lights / moods
12 RGB indicators
TIS Protocol messages and commands
By Rs485 upgrading kit
ON / OFF / Scene / AC control
Dim or ramp the lights
Extra Scene
Music, scene, lights control
94mm × 129mm × 13mm
Fireproof PC / Glass in front
Silver plating frame. Glass white or black
Black & White
IP 50
