TIS TIT-2G-BUS-K Installation Manual

InSTallaTIon Manual
TIS TITan/TITanIa 2-4 GanGS Touch Panel
Model: TIT-2G-BUS-K, TIT-3G-BUS-K, TIT-4G-BUS-K
TIT-2G-BUS-S, TIT-3G-BUS-S, TIT-4G-BUS-S
Touch
Input
Output
TIS Bus``
Protection
Reaction time
Mounting
Connection terminal
Operating and display
elements
Functions
Dimensions
(Width × Length × Height)
Housing

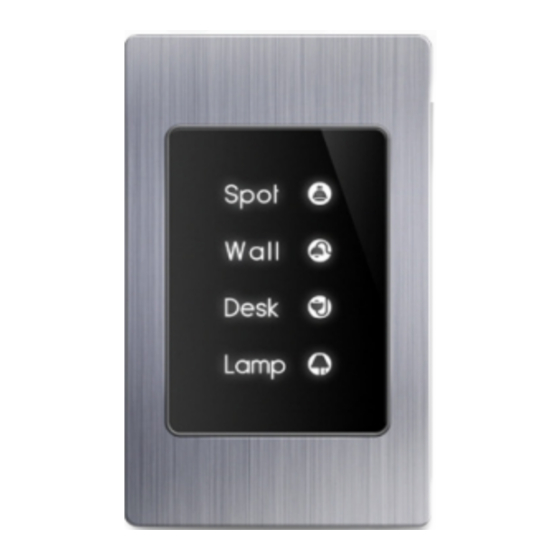

The Titan/Titania 2-4 gang panel series features
elegantly designed wall switches with 2-4 touch
buttons and RGB backlights. These panels have
the compatibility to control lights, curtains, and
scenes, and offer personalized texts and images.
P R O D U C T S P E C I F I C AT I O N S
Active area
Touch type
Temp sensor
Dry inputs
Model 2G
Model 3G
Model 4G
Number of devices on 1 line
Bus voltage
Current consumption
Wall mount
Data and Digital Inputs
Relay Channels
Touch buttons
Backlight
TIS bus
Upgrading
1 Press
Long Press
Double click
Titan with the cover
Titania with the cover
Materials
Casing color
Internal Parts color
IP rating
PRoDucT InFoRMaTIon
2-4 buttons (as per model numbers)
Capacitive
Resistive temp sensor
2 Digital inputs
2 Relay outputs 5A
3 Relay outputs 5A
4 Relay outputs 3A
Max. 64
12-32 V DC
<60 mA / 24 V DC
Reverse Polarity Protection
ESD Protection
approx. 20ms
with 2 screws on the back box (UK, Europe, US)
6 pushing pin type 1.5mm
4 pushing pin type 2.5 mm
2-3 touch buttons for control
2-3 RGB indicators
TIS protocol messages and commands
Rs485 upgrade kit
ON/OFF/Scene
Dim or turn up the lights
Extra scene
90mm × 3mm × 86mm
66mm × 3mm × 110mm
PC fire proof / Glass in front
Aluminum, glass, or plastic frame
Black
IP 50
