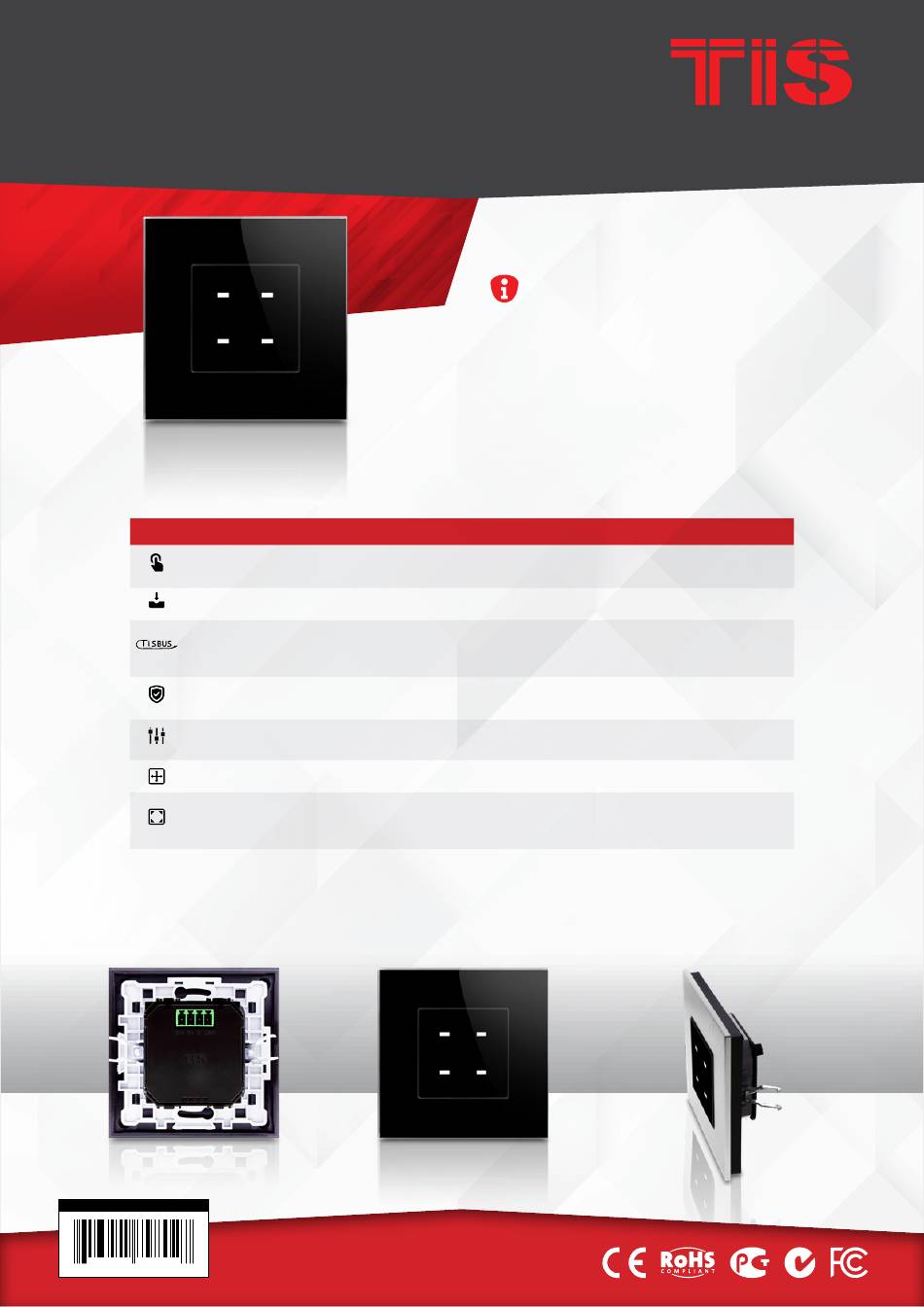

TIS TER-4G Installation Manual

InSTallaTIon Manual
Terre 4-gang Touch Panel
Model: TER-4G
Touch
Input
TIS Bus
Protection
Operating and display
elements
Dimensions
Housing
BarcoDe (uPc-a)
6 58921 79802 7

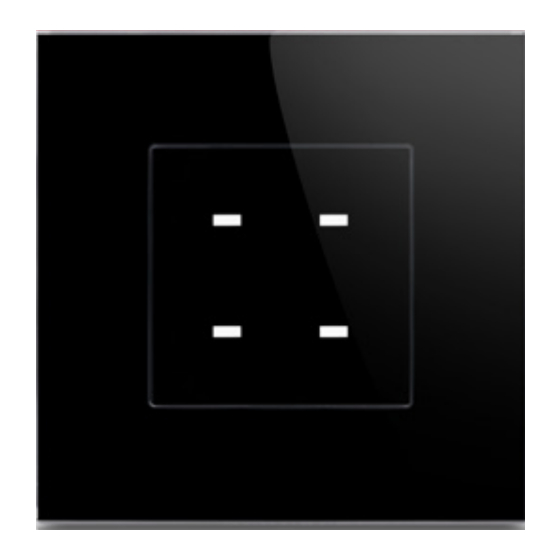

A simple 4-touch button interface to control lights,
curtains, and moods, this series is available in
glass, plastic, wood, leather, stone, and metal
finishes and attracts attention with perfect curves
and edges.
P R O D U C T S P E C I F I C AT I O N S
Active area
Touch Type
Temp sensor
Number of devices on 1 line
Bus voltage
Current consumption
touch buttons
Backlight
Width × length × height
Materials
Internal Parts color
IP rating
Automation Made Easy
ProDucT InForMaTIon
1.5"
Capacitive
Resistive Temp Sensor
Max. 64
12-32 V DC
<20 mA / 24 V DC
Reverse Polarity Protection
ESD Protection
4 touch buttons
Backlight indicators
45mm × 25mm × 45mm
Fire proof PC / Glass in front
Black & gray
IP 50
