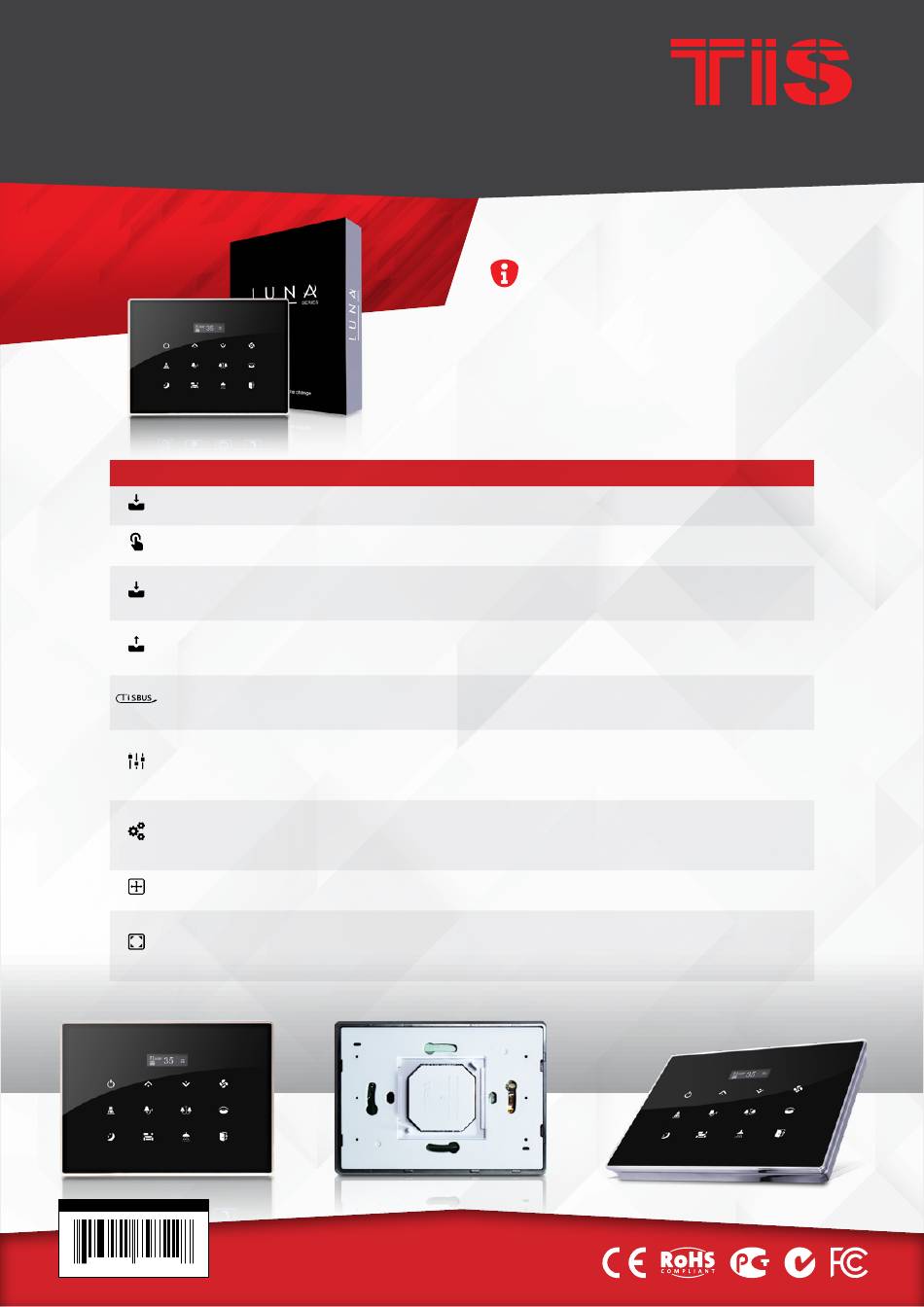

TIS LUNA-BEDSIDE Installation Manual

insTaLLaTion ManuaL

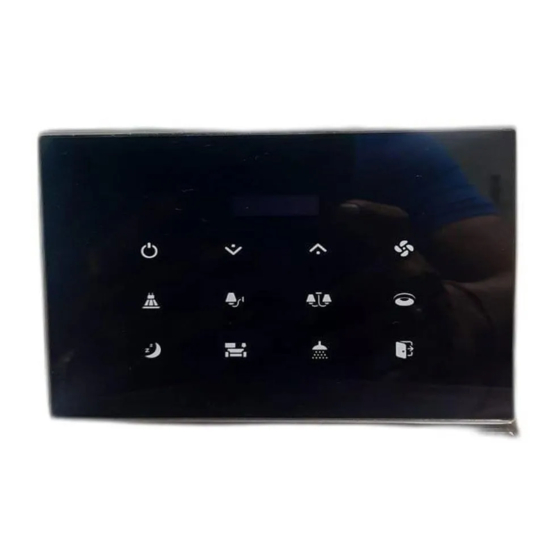

Luna Bedside Touch PaneL
Model: LUNA-BEDSIDE
OLED
Touch
Input
Output
TIS Bus
Operating and display
elements
Functions
Dimensions
Housing
BaRcode (uPc-a)
6 58921 79722 8
With our Luna Bedside Panel, controlling the
temperature, fan speed, lights, curtains, and
moods in your bedroom is very simple. This panel
is customized as per hotel, hospital, or other
project needs.
P R O D U C T S P E C I F I C AT I O N S
Size
Active area
Touch Type
Temp sensor
IR receiver
Using Panel Addition
Using Panel Addition 3R
Using Panel Addition 3DL-12V
Using Panel Addition 2DL-IRE
Number of devices on 1 line
Bus voltage
Current consumption
touch buttons
Backlight
TIS bus
Upgrading
1 Press
Long Press
Double click
IR receiver
Width × length × height
Materials
Casing color
Internal Parts color
IP rating
Automation Made Easy
PRoducT inFoRMaTion
0.9"
4.3"
Capacitive
Resistive Temp Sensor
TIS Infrared code receiver
2-3 Digital Input
3 Relay Output 3A/5A
12V DC 50mA Output
IR Emitter
Max. 64
12-32 V DC
<45 mA / 24 V DC
12 touch buttons for AC / lights / moods ...
12 RGB indicators
TIS Protocol messages and commands
By Rs485 upgrading kit.
ON / OFF / Scene / AC control
Dim or ramp the lights
Extra Scene
Music, scene, lights control
129mm × 13mm × 90mm (94mm peak)
PC fire proof / Glass in front
Silver plating frame, Black Glass
Black & White
IP 50
