- Page 1 Front Bay Panel Firewire, USB, Audio, 3.5 " Front Panel Installation Manual 35BAYPANEL...

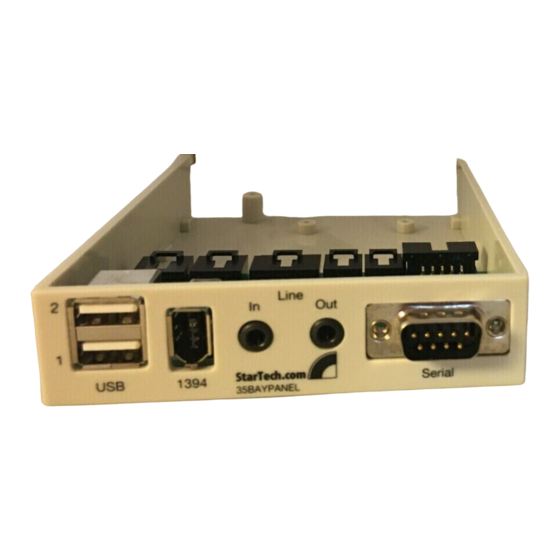

- Page 2 Overview The StarTech.com 35BAYPANEL front insert enables the user to easily access the PC rear panel connectors. This 3.5" bay insert moves your Firewire, USB, Audio and RS232 serial ports to the front of the PC. Features • Eliminates the need to move your PC to gain rear access to ports, by moving them to the front.
- Page 3 Installation 1. Make sure that your PC is turned off. 2. Remove the cover of your PC and the 3.5” front bay cover. 3. Insert the adapter into the open bay and secure it using the small screws provided. 4. Pass the cables from the controller unit throught the supplied rear bay bracket to outside of the case.
