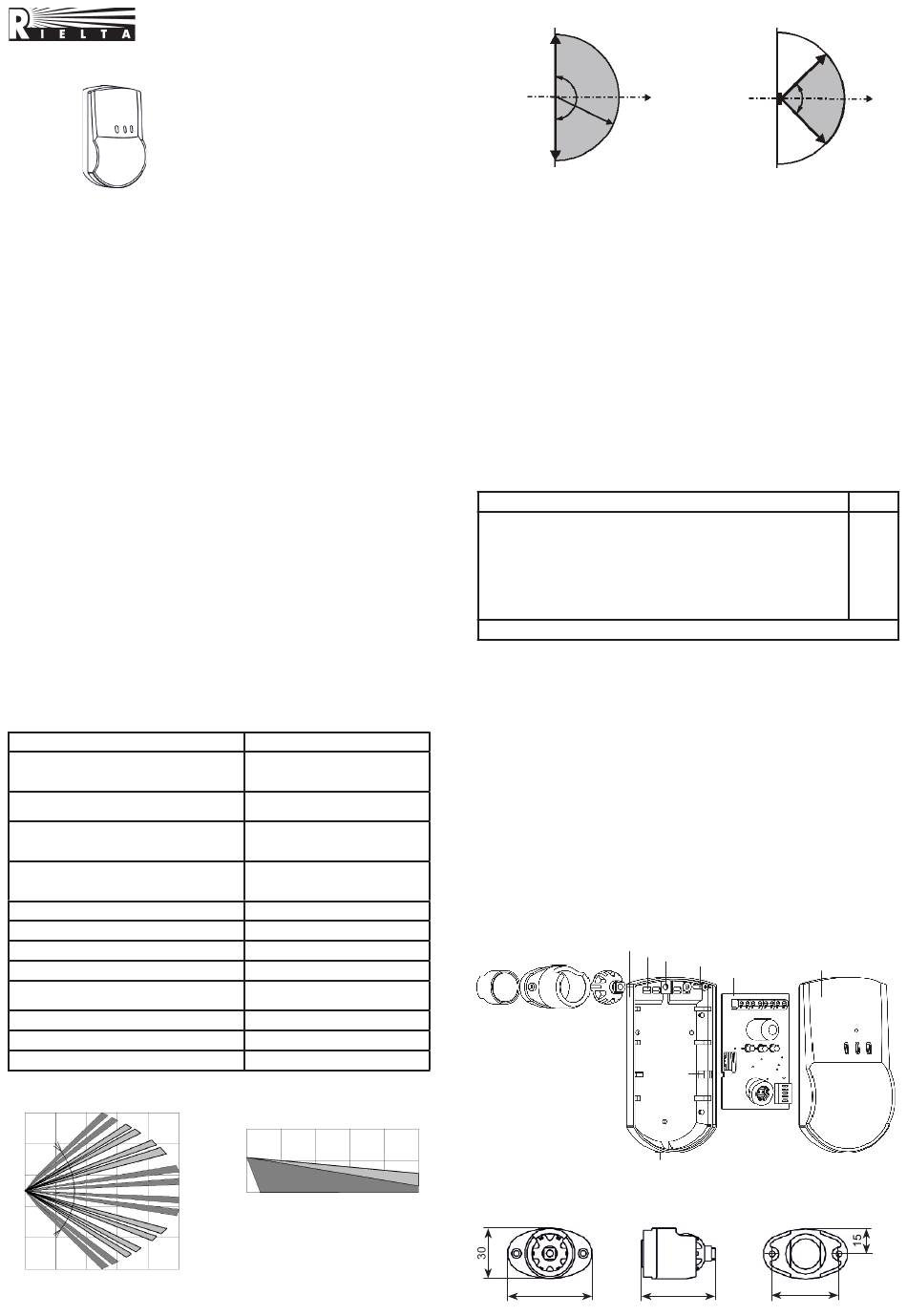

Rielta ORLAN-D Installation Manual

COMBINED PIR + GLASS
General Information
Combined PIR + glass break detector «Orlan-D» (hereinafter, the Detector)
is designed for application as a component of security systems.
The Detector has the following two independent detection channels:
- Glass break channel (hereinafter, GB channel);
- Passive infrared channel (hereinafter, PIR channel).
GB channel is intended for detecting destruction of engineering structures
made of plate glasses, double- and triple-pane glasses with an area of not less
than 0.1 m (with any side length not less than 0.3 m), as well as glass bricks.
2
PIR channel is assigned for detecting intrusion into protected area of closed
premises. PIR channel provides wide angle detection zone. The Detector is
resistant to movement of pets with weigh up to 20 kg with temperature contrast
∆t = 8
о C (smooth-coated cats and dogs) and pets with weigh up to 40 kg with
temperature contrast ∆t = 6
о C (long-hair cats and dogs).
The Detector generates Tamper message at it's cover opening by an alarm
loop (AL) or microswitch contacts opening.
The Detector is resistant to the impacts of ambient light, radio noise, as well
as disturbance from small animals: mice, rats, birds in cages if a distance to
them is not less than 2.5 m.
The Detector can be installed on the wall or in the corner of the room. Wall or
ceiling mounting by means of swivel bracket (supplied) is also possible (Figure 5).
Features
Sensing element of detection channels:
- PIR channel – dual-element pyrodetector;
- GB channel – microphone.
- Microprocessor-based signal processing.
- Spherical lens ensures high detectability level.
- Self-test mode.
- Alarm at PIR and GB channels memorization (Alarm memory).
- Possibility of PIR and GB channels sensitivity modes choosing.
- Possibility of LED indication disabling.
- Pet movement resistance.
- Protection against ingress of insects to the pyrodetector.
- Possibility of swivel bracket using for the detection zone position alignment.
The Detector specifications are listed in Table 1. PIR detection zone pattern
is shown in Figire 1. GB detection zone pattern is shown in Figure 2.
Table 1
Parameter
PIR channel detection zone
GB channel maximum detection range, not
less than
Output GB and PIR channels contacts:
- voltage, maximum
- current, maximum
Sensitivity:
- GB channel (High Sens)
- PIR channel
Alarm message duration, not less than
Minimum area of protected glass
Warm-up time after energizing, not more than
Operating temperature
Relative humidity at +25 о C without moisture
condensation
IP rating
Dimensions, maximum
Weight, maximum
Top view
90 0
0
Figure 1 – PIR Channel Detection Zone Pattern
BREAK DETECTOR
«ORLAN-D»
Installation Guide
Value
10 х 10 m
8 long-range zones, 7 middle-range,
4 short-range, 2 anti-sabotage
6 m
72 V
35 mА
selactable:
minimal/+7 dB/+14 dB/+21 dB
high/normal
2 sec
0.1 m
2
60 sec
minus 20 С ... +55
о
98 %
IP30
126 х 70 х 55 mm
150 g
Side view
2.3 m
10 m
0
Field of Application
The Detector can be installed in flats, shops, museums, offices and other
closed premises.
Choosing Place of Installation
When choosing the Detector installation place, it is advisable to take note of
the fact that the detection zone may be screened by non-transparent objects
(curtains, houseplants, cabinets, bookcases, etc.), as well as by glass and mesh
partitions. There must be no windows, air conditioners, space heaters or heating
radiators in the PIR detection zone.
Recommended installation height is 2.3 m. Distance between the Detector and
the farthest point of the monitored glass should not exceed 6 m. The Detector
microphone should be oriented strictly towards the protected surface of a glass
construction. In case of 1 m
should be increased up to 9 m.
The Detector wires should be laid at a distance not less than 1 m from power
supply cables.
Scope of Delivery
Each Detector unit package contains items listed in Table 2.
Table 2
Combined PIR + glass break detector «Orlan-D»
Accessories set:
Swivel bracket
Screw nut «SORMAT» 5х25
Screw 3-3х30.016
Testing ball
Combined PIR + glass break detector «Orlan-D». Installation Guide
* Supplied optionally
Installation of the Detector
- Remove the detector cover (6) from the base (1) by pressing the cover
lock (8) with a screwdriver through the hole located in the lower part of the
detector base.
- When installing the detector without a bracket, it is necessary to remove
the printed circuit board (5) by pressing the board fastener (7).
- Drill holes (2) in the base of the detector, which will be used for laying
wires and fixing the detector.
- Having chosen the installation location, mark the holes for mounting the
detector, taking into account the position of the holes in the detector base
(bracket), drill holes in the wall (Figure 4).
- Pass the wires through the holes in the detector base, leaving the
necessary length of wire inside the housing to connect to the detector
terminals.
- Attach the detector base (bracket) to the selected location.
- When mounted on a bracket, untie the screw from the sphere, align the
square ledge of the sphere with the corresponding groove in the top of the
detector base, insert the screw into the hole in the top of the base and tighten
without tightening;
- Place the base in the desired position and tighten the screw so that the
base is firmly fixed to the bracket.
- Install the PCB into the base by inserting the groove on the PCB into the
protrusion on the base, then snap the PCB into place with the retainer.
С
о
Bracket
Overall and installation dimensions
(
10 m mm)
а) bracket
51
Top view
180 о
Microphone
psitioning
R
Figure 2 – GB Channel Detection Zone Pattern
2 area monitoring, maximal distance to the Detector
Name
1
2 3
4
7
8
Figure 3 –Detector Base and Swivel Bracket
44
Side view
90 о
R
QNT
1 pc.
1 pc.
2 pcs.
2 pcs.
1 pc.*
1 copy
6
5
40
