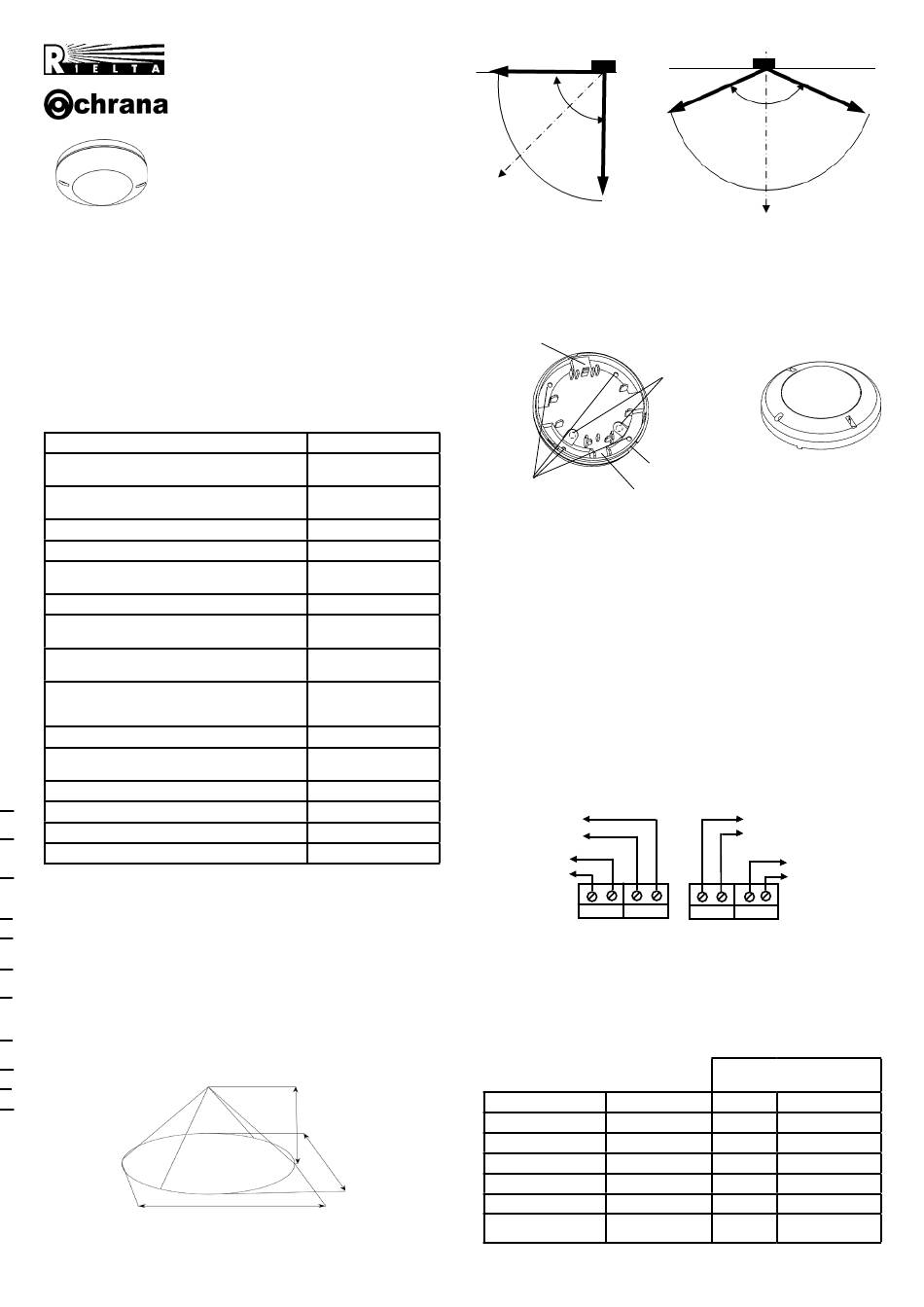

Rielta ORLAN-2 Installation Manual

1 General Information

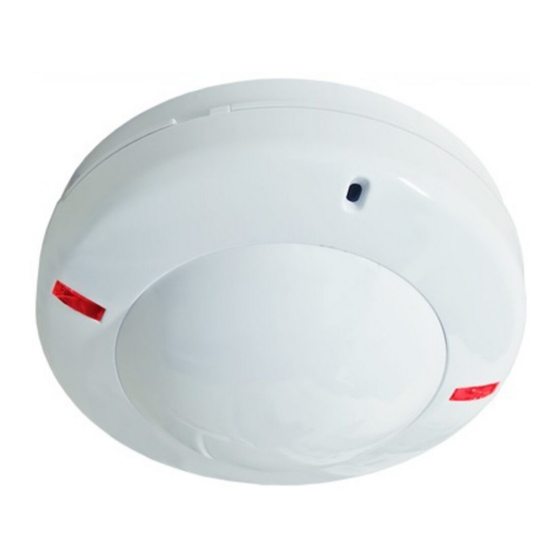

Security combined PIR + glass break ceiling-mounting detector
«Orlan-2» (hereinafter, the Detector) has the following two independent
detection channels:
- Glass break channel (hereinafter, GB channel);
- Passive infrared channel (hereinafter, PIR channel).
GB channel is intended for detecting destruction of plate glass.
PIR channel is assigned for detecting intrusaion into protected area
of closed premises.
The Detector generates an alarm message by output relay contacts
opening.
2 Features
Table 1
Parameter
PIR channel detection zone diameter at
mounting height of 5 m, not less
Minimum controlled glass area, not less
PIR channel detected speed range
Power supply, V DC
Maximal current, commutated by executive
relay contacts at maximal voltage 72 V
Warm-up time after energizing, not more
Operating temperature
PIR channel detection angle in horisontal
plane
GB detection angle:
- horisontal
- vertical
IP rating
Relative humidity without moisture conden-
sation
Current consumption, maximum
Dimensions (diameter х height), not more
Weight, not more
Average service life
3 Choosing the Installation Place
я.
я,
When choosing the Detector installation place, it is advisable to
take note of the fact that the detection zone may be limited by non-
С
transparent objects (curtains, houseplants, cabinets, bookcases, etc.),
as well as by glass and mesh partitions. There must be no windows, air
conditioners, space heaters or heating radiators in the PIR detection
zone. Maximal installation height is 5 m. Distance between the Detector
and the farthest point of the monitored glass should not exceed 6
m. The Detector microphone should be oriented strictly towards the
protected surface of a glass construction. The Detector wires should
be laid far enough from power supply cables.
PIR channel detection zone pattern is shown in Figure 1.
Figure 1 – PIR channel detection zone pattern
SECURITY COMBINED PIR +
GLASS BREAK DETECTOR
«ORLAN-2»
Installation Guide
Value
9 m
0,1 m
0,05 m
0,3...3 m/s
9...15 V
30 mА
60 s
From minus 20 to
+45 °С
360°
120
90
IP30
95% at 25 °С
35 mА
105 х 48 mm
100 g
8 years
5 m
9 m
10 m
Side view
R 6 м
Microphone orientation
Figure 2 – GB channel detection zone pattern
4 Installation of the Detector
· Put off the Detector cover by its turning counter-clockwise until
tight (See Figure 3);
Base
Latch
Holes for a base
2
fastening
2
· put off the printed circuit board (PCB) by unfastening the latch,
located on the base;
· Drill the holes in the base (See Figure 3) for the Detector wiring
and fastening the base;
· Choose the place of installation, mark the places for mounting
holes with regard to the openings on the detector base, drill holes in
the place of installation;
· Pass the wire through the mounting holes in the base, leaving
several centimeters of installation wire for its fastening to the socket
inside the case;
0
· Fix the base of the detector on the chosen place
0
· set down PCB and microphone on their places.
5 Connection
Fulfill connections in accordance with Figure 4.
To control panel (CP)
«Tamper or failure
message»
To power
supply unit
Figure 4 – The Detector connection pattern
- Set operation mode by means of DIP-switches in accordance with
particular application conditions (DIP-switches assignment is listed in
the Table 2);
- Install the Detector cover on its place.
Table 2
Mode
GB sensitivity
GB sensitivity
Installation height
Alarm memory
Indication
Test mode
Top view
R 6 м
90 0
Microphone orientation
Holes for wiring
Slot
Microphone mounting
seat
Figure 3 – Base and cover of the Detector
+12V- FAILURE GB Loop PIR Loop
DIP-switch ON
«1» max
«2» max
«3» 5 m
«4» ON
«5» ON
«6» ON
120
0
Cover
To CP «Alarm»
via GB channel
To CP «Alarm»
via PIR channel
DIP-switch Position
OFF
- 6 dB
-12 dB
2,5 m
OFF
OFF
OFF
(standby mode)
