Grizzly H7585 Instruction Sheet

Introduction

Installing the new fence requires replacing the
original fence with the new fence support tube on
the fence base, attaching the resaw fence, then
putting on the new fence scale.

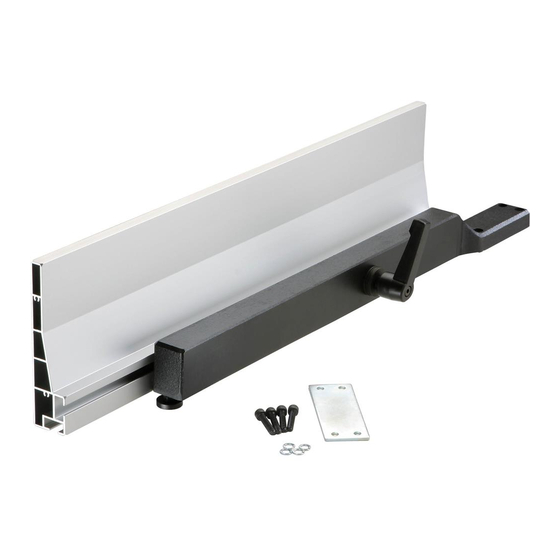

Inventory

• Resaw Fence ............................................. 1
• Fence Support Tube .................................. 1
• Flat Washer 8mm ....................................... 1
• Moving Plate ............................................... 1
• Adjustment Handle ..................................... 1
• Scale .......................................................... 1
• Cap Screws M6-1 x 30 ............................... 4

Installing Fence Support Tube

1. Remove the four cap screws (Figure 1) and
remove the fence from your original fence
base.
2.
Install the fence support tube on the fence
base with the spacer plate between the them,
as shown in Figure 2.

Attaching Resaw Fence

1. Insert the adjustment handle with washer
through the hole in the fence and attach the
moving plate on the other side (Figure 3).
2. Slide the resaw fence over the moving plate,
center it with your original fence, and lock it
in position with the adjustment handle.

Installing Scale

1.
Raise the blade guides, and place the resaw
fence against the blade.
2. Note where scale indicator line is over the old
scale, and pencil a mark on the rail next to
the scale.
3. Remove the old scale and install the new
scale so the 0 is even with your pencil mark.

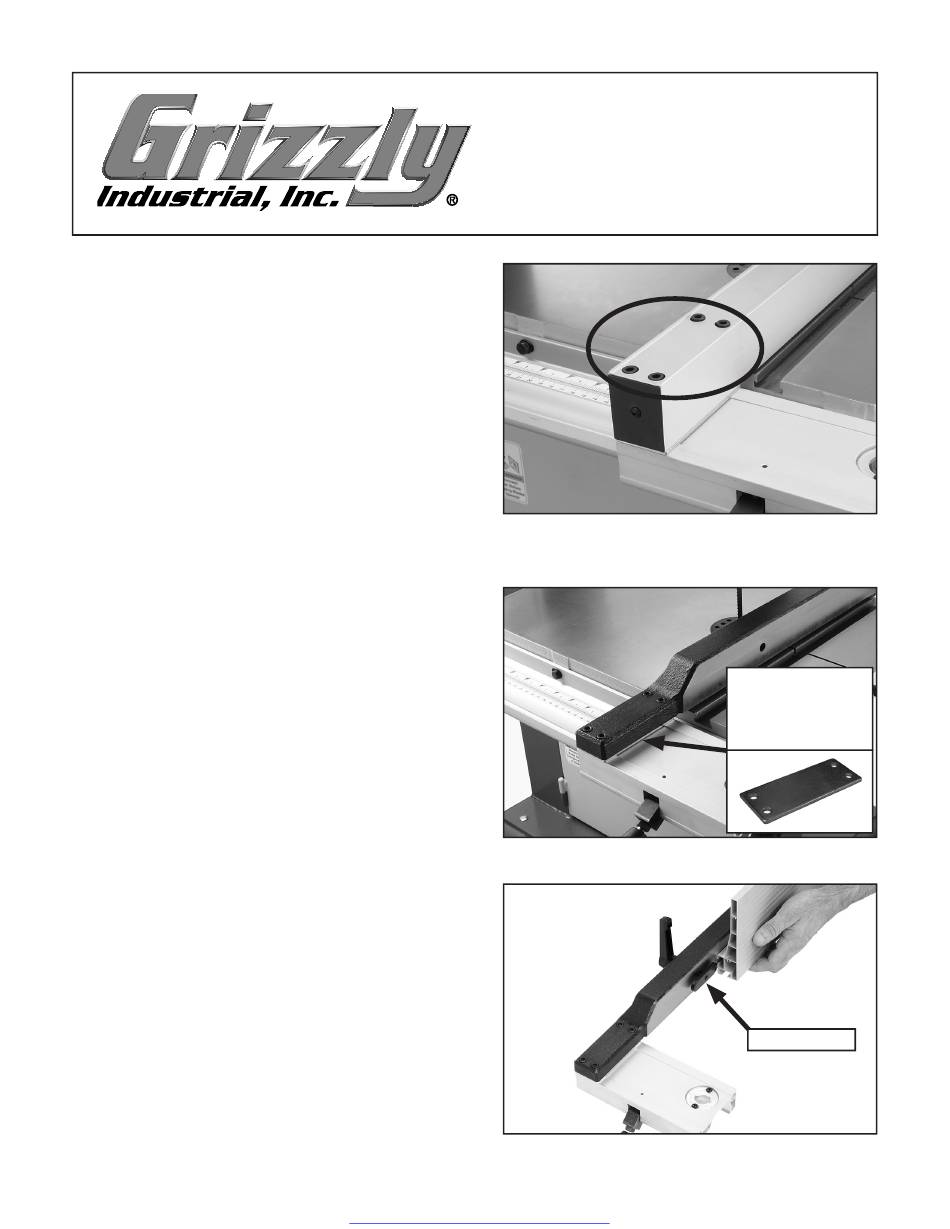

Figure 1.
Figure 2.
Get other manuals https://www.bkmanuals.com
MODEL H7585
RESAW FENCE
FOR G0513
INSTRUCTION SHEET
Four cap screws to be removed for
changing fences.
Support Tube and
New fence support tube installed.
Installing resaw fence.
Figure 3.
Spacer Plate
Between Fence
Fence Base
Moving Plate
