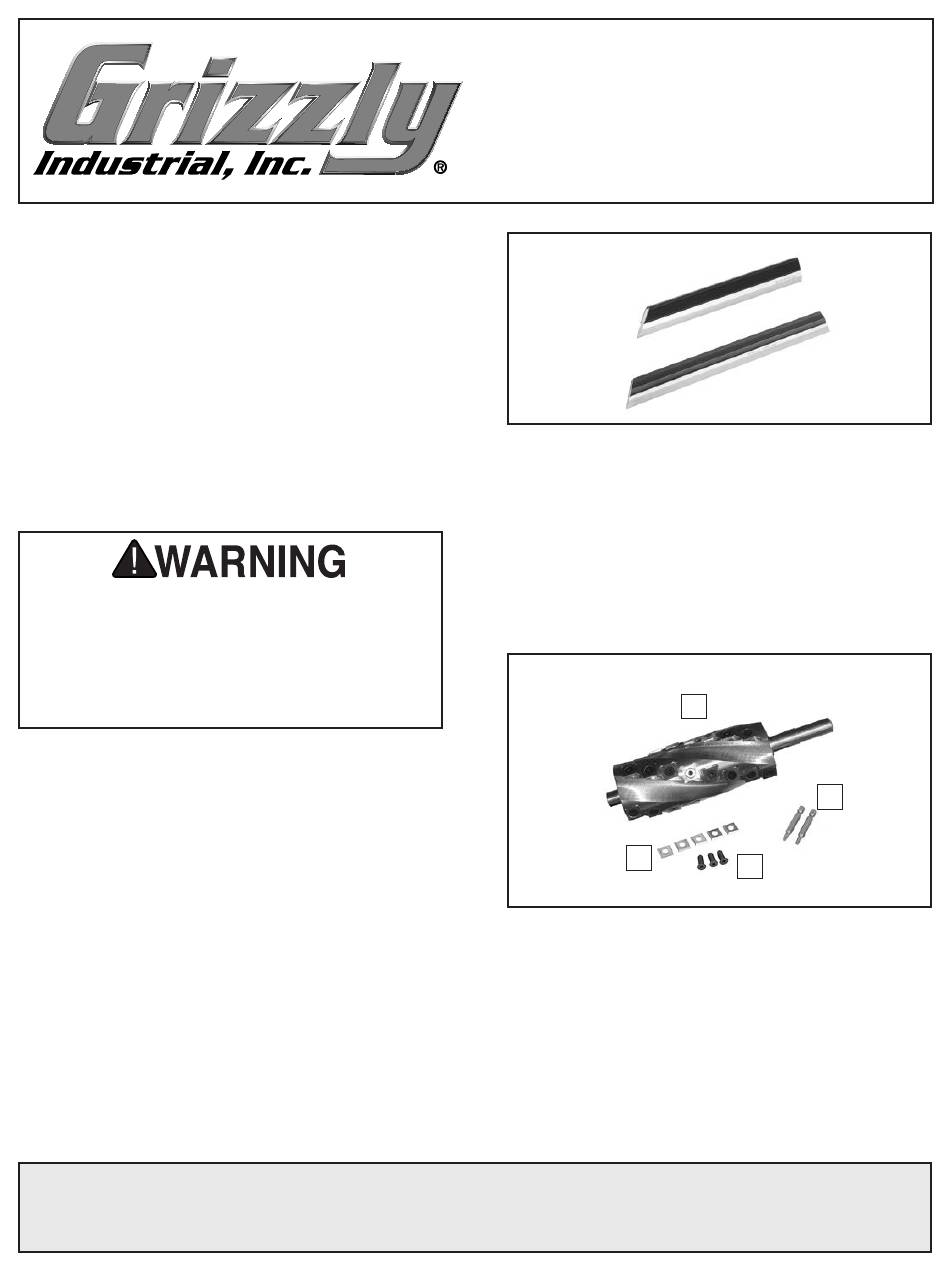

Grizzly T10125 Instructions Manual

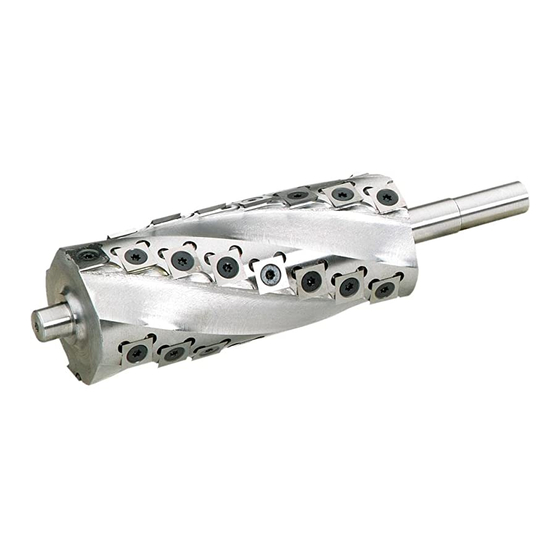

The Model T10125 spiral cutterhead is designed
to replace the straight knife cutterhead on the
Model G0452 6" jointer.
The total procedure of changing the cutterheads
and setting up the jointer takes approximately
one hour. The job consists of removing the old
cutterhead, installing and shimming the new spi-
ral cutterhead, and readjusting the outfeed table
even with the carbide inserts at TDC (top dead
center). Call Technical Support at (570) 546-9663
if you need help.
The T10125 spiral cutterhead is only designed
to be used with the Grizzly Model G0452 6"
Jointer. Do NOT install this cutterhead in
any other jointer model or make. Doing so
could result in property damage or serious
personal injury.
Recommended Tools
Wrench 17mm.................................................... 1
Precision Straightedge (Figure 1) ..................... 1
Feeler Gauge Set .............................................. 1
Pair of Heavy Leather Gloves ........................... 1
G9644—12" Precision Straightedge
H2675—16" Precision Straightedge
Is your straightedge really straight? These grade
00 heavy-duty stainless steel straightedges are
manufactured to DIN874 standards for profes-
sional results in set-up and inspection work.
COPYRIGHT © JULY, 2008 BY GRIZZLY INDUSTRIAL, INC. REVISED JULY, 2009 (BL)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
6" SPIRAL CUTTERHEAD
Inventory
A. Spiral Cutterhead ....................................... 1
B. Torx Drivers T20 ........................................ 2
C. Flat Head Torx Screws T20 M6-1 x 15 ...... 3
D. Indexable Carbide Inserts 14 x 14 x 2 ....... 5
E. Torx L-Wrenches T20 (not shown) ............ 2
#BL10874 PRINTED IN CHINA
MODEL T10125
INSTRUCTIONS
Figure 1. Precision straightedges.
(Figure 2)
A
D
Figure 2. Spiral cutterhead inventory.
B
C
