Introduction

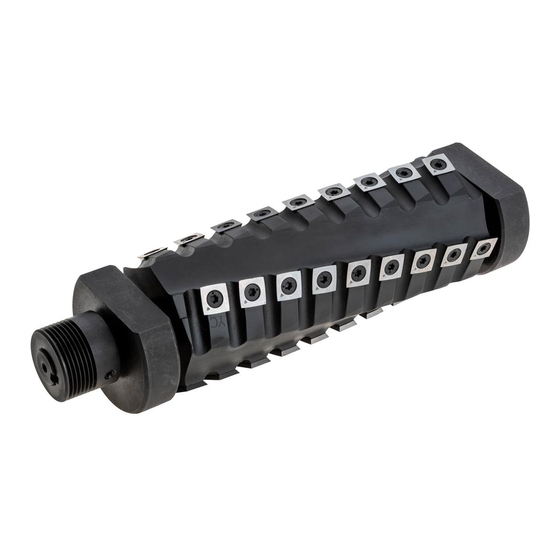

The Model T32058 8" Helical Cutterhead is
designed to replace the straight-knife cutterhead
on the Model G0857 8" x 76" Jointer.
DO NOT modify or alter this cutterhead to
make it fit other makes or models of joint-
ers for which it is not designed. Doing so
could result in property damage or serious
personal injury.
Due to the nature of installation, an additional
person MUST be available to assist with lifting the
G0857 jointer table base. The total time for setup/
installation is approximately one hour. Read these
instructions thoroughly before beginning.
Note: Not all pictures in these instructions will
exactly reflect your machine. Some photos are
provided for representation purposes only to help
you better understand the instructions given.

Specifications

Maximum Width of Cut ...................................... 8"
Cutterhead Diameter ..................................... 3
Number of Indexable Carbide Inserts .............. 36
Indexable Carbide Insert Size ....15 x 15 x 2.5mm
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
COPYRIGHT © MAY, 2020 BY GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 04/20) #KS21093 PRINTED IN TAIWAN
MODEL T32058
8" HELICAL CUTTERHEAD
ASSEMBLY FOR G0857
Inventory (Figure 1)
Description
A. Helical Cutterhead Assembly ...................... 1
B. T-Handle Torx Drivers T25 .......................... 2
C. Flat Hd Torx Screws T25 10-32 x
D. Indexable Inserts 15 x 15 x 2.5mm ............. 5
D
Figure 1. Model T32058 inventory.

Tools Needed

• Additional Person for Lifting ........................ 1
• Safety Glasses (per person) ........................ 1
• Pair of Heavy Leather Gloves ..................... 2
• Wood Blocks 24" 4x4 ................................. 2
• Phillips Head Screwdriver #2 ...................... 1
• Flat Head Screwdriver ................................. 1
⁄ "
1
16
• Hex Wrenches 5, 6, 9mm ...................... 1 Ea.
• Adjustable Wrench ...................................... 1
• Precision Straightedge 36" .......................... 1
• Feeler Gauge Set ........................................ 1
• Shop Rag .................................... As Needed
• Degreaser .................................... As Needed
INSTRUCTIONS
A
C
Qty
⁄ " ........ 10
1
2
B
V1.05.20
