For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The T31496 13" Helical Cutterhead is designed
to replace the straight-knife cutterhead on the
DeWalt DW735 and DW735X (T22222) Planers.
The total procedure of changing the cutterhead
and reassembling the planer takes approximately
three hours. Read these instructions thoroughly
before beginning. These instructions make refer-
ence to many procedures detailed in your planer
manual. Always consult your manual for these
procedures. We strongly recommend using the
new replacement bearings included with the
T31496, even if the existing bearings appear to be
in good condition. Call Technical Support at (570)
546-9663 if you need help.
The T31496 13" Helical Cutterhead is
designed to be used only with the DeWalt
DW735 and DW735X (T22222) Planers. Do
NOT install the T31496 in any other planer
model or make. Doing so could result in
property damage or serious personal injury.
Specifications
Maximum Width of Cut ................................... 13"
Cutterhead Diameter ................................... 1.86"
Number of Cutter Rows ..................................... 3
Total Number of Indexable Cutters .................. 30
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
COPYRIGHT © OCTOBER, 2019 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
#KS20717 PRINTED IN TAIWAN
MODEL T31496
13" HELICAL
CUTTERHEAD
INSTRUCTIONS
Recommended Tools
Description
Open-End Wrench 6, 24 mm ......................1 Ea.
Deep Well Socket 31, 40mm .......................1 Ea.
Retaining Ring Pliers ......................................... 1
Hex Wrench 4mm .............................................. 1
Torx Driver T-30 (Included with DW735/X) ....... 1
Phillips Screwdriver #2 ...................................... 1
Steel Hammer ................................................... 1
Hex Bolt
⁄
"-18 x 2 ........................................... 1
5
16
Heavy Leather Gloves ................................1 Pair
Wood Board (Minimum 12" Length) .................. 1
Scrap Cardboard ............................... As Needed
Inventory
(Figure 1)
Description
A. Ball Bearing 6202-2NSE ............................ 1
B. Ball Bearing 6204-2NSE ............................ 1
C. Flat HD Torx Screws T-25 #10-32 x ½" ...... 5
D. Carbide Inserts 15 x 15 x 2.5mm ............... 5
E. T-Handle Torx Driver T-25 .......................... 1
F.
Helical Pinion Gear 8T ............................... 1
G. Helical Cutterhead 13" ................................ 1
A
B
F
E

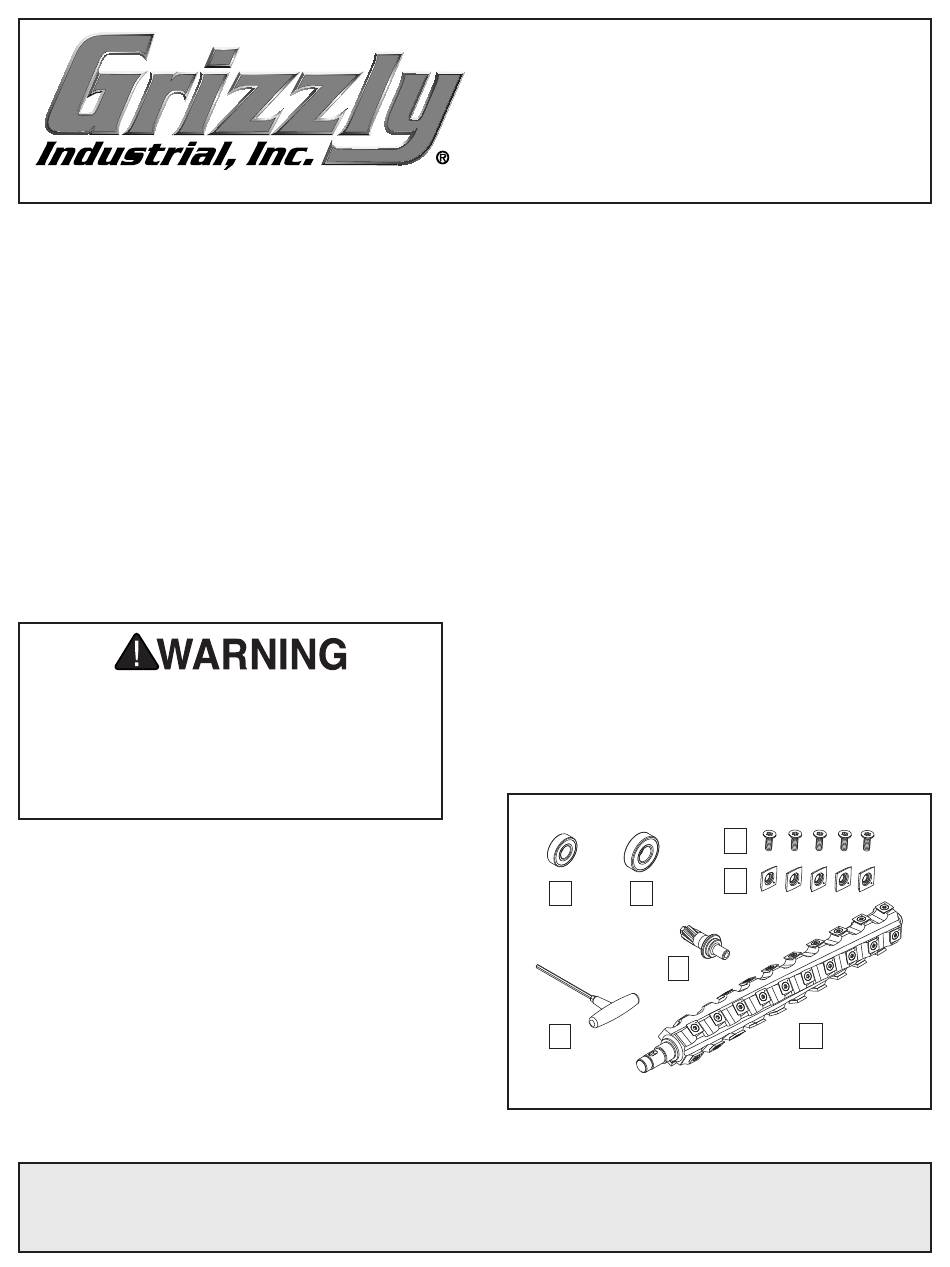

Figure 1. Model T31496 Inventory.
Qty
Qty
C
D
G
V1.10.19
