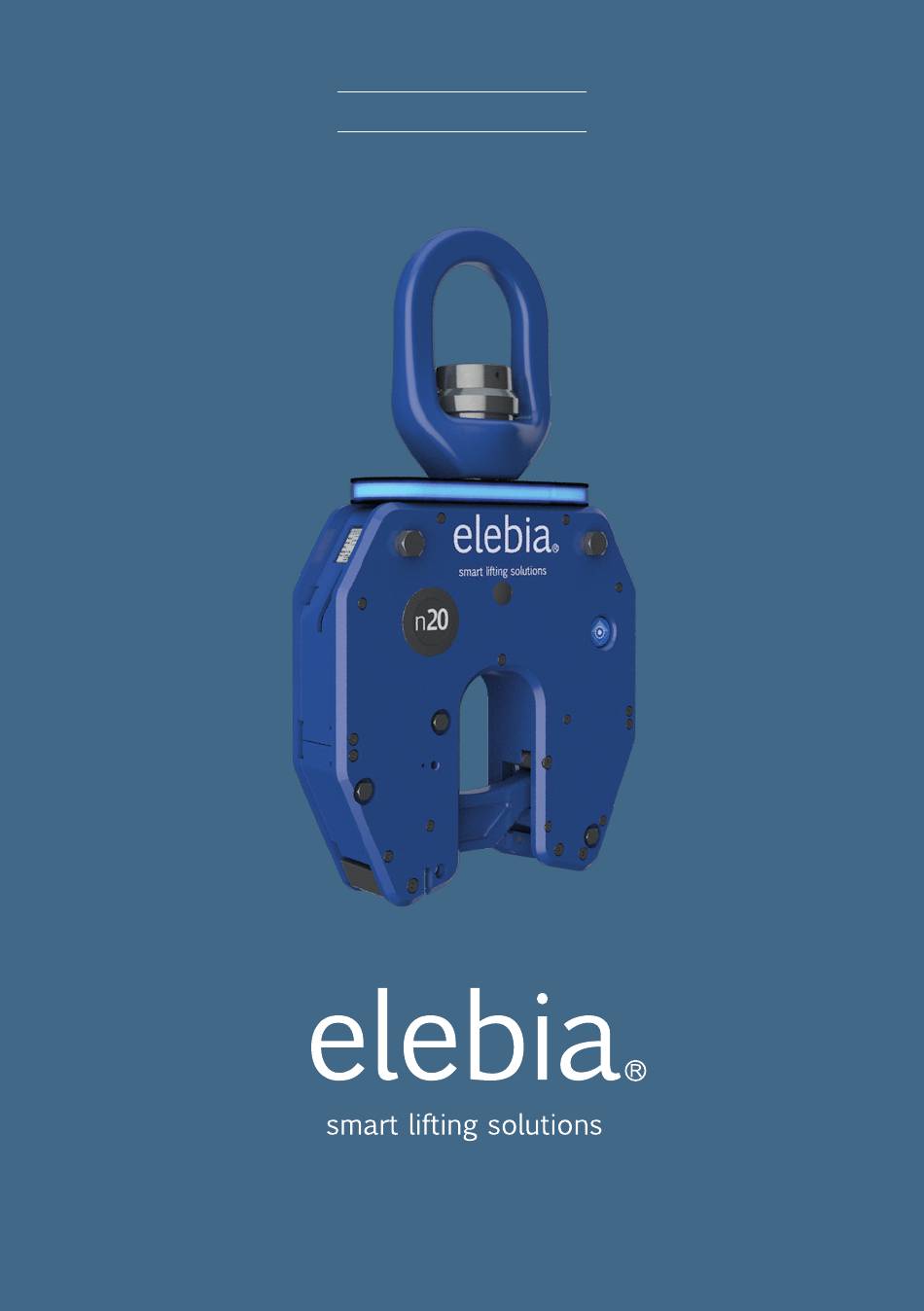

  • Page 1 USER MANUAL - NEO20S...
  • Page 2 Disclaimer: This user manual is for information only. The manufacturer reserves the right to modify any specifications.

  • Page 3: Table Of Contents

    Table of Contents General Information General Precautions Restrictions Main Features Specifications Regulatory Standards Remote Control FCC, IC, CE & ARIB Battery Charger Lifting Procedure Manual Unlock Conformity Declaration & Manufacturer’s Certificate Warranty Inspection & Maintenance Disclaimer: This user manual is for information only. The manufacturer reserves the right to modify any specifications.

  • Page 4: General Information

    DO NOT operate the NEO20S lifting hook if it has been altered without the manufacturer’s approval. DO NOT operate the NEO20S lifting hook if it is not working properly or if working unusually. DO NOT operate the NEO20S lifting hook nor repair it if it is damaged or lacks components.

  • Page 5: Restrictions

    The elebia NEO20S lifting hook has been designed to be used in normal atmospheric conditions and in a temperature range from -20 ºC to 60 ºC / -4 ºF to 140 ºF. The NEO20S lifting hook must not be used if these conditions are not met.

  • Page 6: Main Features

    Main Features of the NEO20S lifting hook Swivel with Bearings High Brightness LED Status Indicator* Green: The lifting hook is unlocked and can release load. Red: Intermediate status. Do Not Lift! Lifting hook is transitioning from unlocked to locked or vice versa.

  • Page 7: Specifications

    Assurance of Production Quality in accordance with ISO9001 Each NEO20S lifting hook is delivered with the CE stamp and a declaration of CE conformity Disclaimer: This user manual is for information only. The manufacturer reserves the right to modify any specifications.

  • Page 8: Remote Control

    Remote Control The NEO20S lifting hook can be paired to the eMAX remote control, the eMINI remote control and/or the eINST installable remote control. eMINI Mode Button The eMINI is a small and compact remote control. With the eMINI remote control, the operator can...

  • Page 9: Fcc, Ic, Ce & Arib

    The NEO20S lifting hook can also be controlled using a free channel of the crane’s master control. The eINST remote control has to be placed in the crane relay cabinet, where only simple wiring is needed. It may be used by pairing to a free channel of the crane’s master control.

  • Page 10: Battery

    Eink segments are white. High capacity: 3 hour charge – 5,000 cycles / 250 hours in standby mode. For more information about the battery, please refer to the evo2 battery user manual (downloadable from https://elebia.com/downloads/) Technology Rechargeable Li-Ion Maximum Voltage 12.4 V DC Nominal Voltage 10.95 V DC...

  • Page 11: Lifting Procedure

    (open) to red (do not lift) and finally to blue (closed). Release Once load is safely on The release order can The NEO20S lifting hook Load is released. the ground. be given. unlocks and opens. (green colour in LED status indicator.)
  • Page 12 A contact sensor detects when the hook is closed, and NEO20S closes automatically. Laser Pointer The NEO20S carries a Laser Pointer as an optional fea- ture. In lifting operations, and from a certain distance, the sense of depth can be misjudged.

  • Page 13: Conformity Declaration & Manufacturer's Certificate

    Conformity Declaration and Manufacturer’s Certificate ELEBIA AUTOHOOKS, S.L.U., with registered office at Plaça Pere Llauger Prim, naus 10-11, Polígon Indus- trial Can Misser, 08360, Canet de Mar, (Barcelona), Spain, Tax Identification Certificate B65770265, and ISO 9001 Certificate No. 9000041 DECLARES: Under its sole responsibility, that the following NEO20S Lifting Hook, with serial number _____________________, with a maximum operating load of 20,000 kg., complies with the EC Machinery...

  • Page 14: Warranty

    Inspection & Maintenance At least once a year, or in case of any damage to the NEO20S lifting hook, the hook should be inspected, tested and if necessary returned to Elebia Autohooks SLU Technical Service for review. The frequency of inspections and tests may vary according to the intensity and type of use.
  • Page 15 Maintenance Check Date: Date: Observations: Observations: Date: Date: Observations: Observations: Date: Date: Observations: Observations: Date: Date: Observations: Observations: Date: Date: Observations: Observations: Disclaimer: This user manual is for information only. The manufacturer reserves the right to modify any specifications.
