Defiant HB-1851 Quick Reference Manual

Defiant HB-1851 Quick Reference Manual

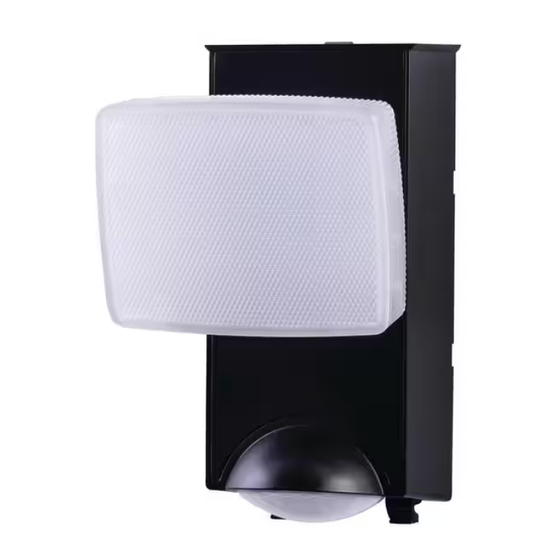

Battery operated light

Advertisement

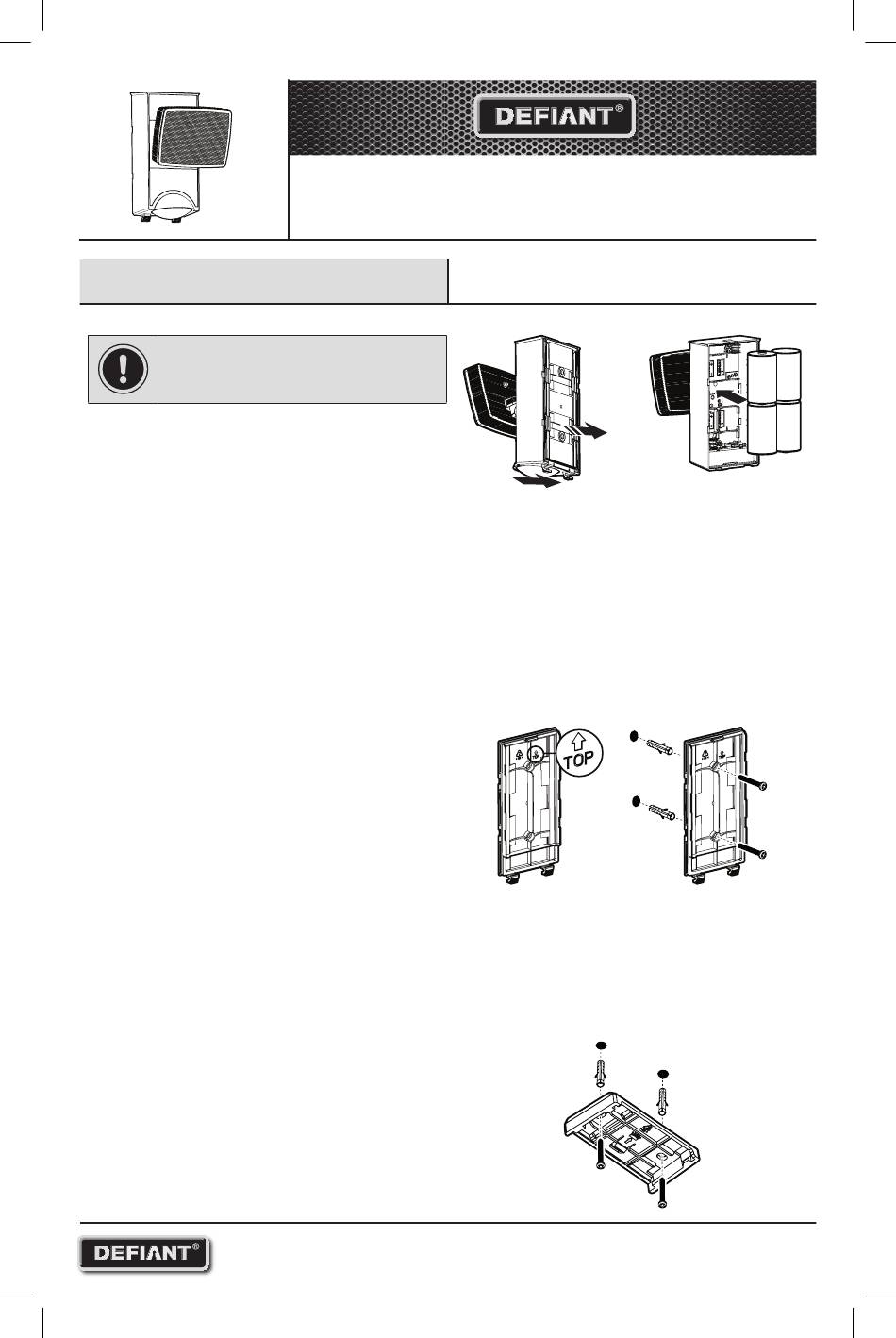

Installation

IMPORTANT: This guide is a quick reference only for
common features of the product and troubleshooting tips.
Please read and reference the full instruction manual for
installation, safety, and additional information.
Determine the mounting location – ceiling/
eave or wall mount.
Gently pull the two tabs on the bottom of the
mounting plate away from the main body.
Install 4 x Alkaline "D" 1.5 V batteries (not
included) into the battery compartment. Ensure
the polarity (+ & - ) of the batteries is correct
as shown in the battery compartment.

WALL MOUNT

Place the mounting plate against the wall
with the arrow and the word "TOP" facing you
(see illustration). Ensure the mounting plate is
level and screw the mounting screws directly
through the plastic in the backplate where the
screw holes are indicated. To mark the hole
locations, use the paper template on the last
page of the Use and Care Guide.
If mounting to a wooden surface like a deck,
you can install the mounting screws through
the mounting plate and into the wood with a
screwdriver, or with a drill and bit driver. You
can also drill two pilot holes into the wood
mounting surface with a 1/8 inch drill bit and
then install the screws.

EAVE OR CEILING MOUNT

Install the eave mounting bracket with the
symbol facing towards the light direction with
screws.
If mounting to a wooden surface like a deck,
you can install the mounting screws through
the mounting bracket and into the wood with
a screwdriver, or with a drill and bit driver. You
can also drill two pilot holes into the wood
mounting surface with a 1/8 inch drill bit and
then install the screws.
Quick Reference Guide
HB-1851 Battery Operated Light
If mounting to wall board or brick, drill two
pilot holes into the mounting surface, using
a 7/32 inch drill bit. Insert the wall pegs and
attach the mounting plate using the two
mounting screws.
If mounting to wall board or brick, drill two pilot
holes into the mounting surface, using a 7/32
inch drill bit. Insert the wall pegs and attach the
mounting bracket using the two mounting screws.
Please contact 1-866-308-3976 for further assistance.
Item #1009569681
Model #HB-1851-BK
