Removing The Pickup Drive Unit - Canon Cassette Module-AE1 Service Manual

■ Procedure

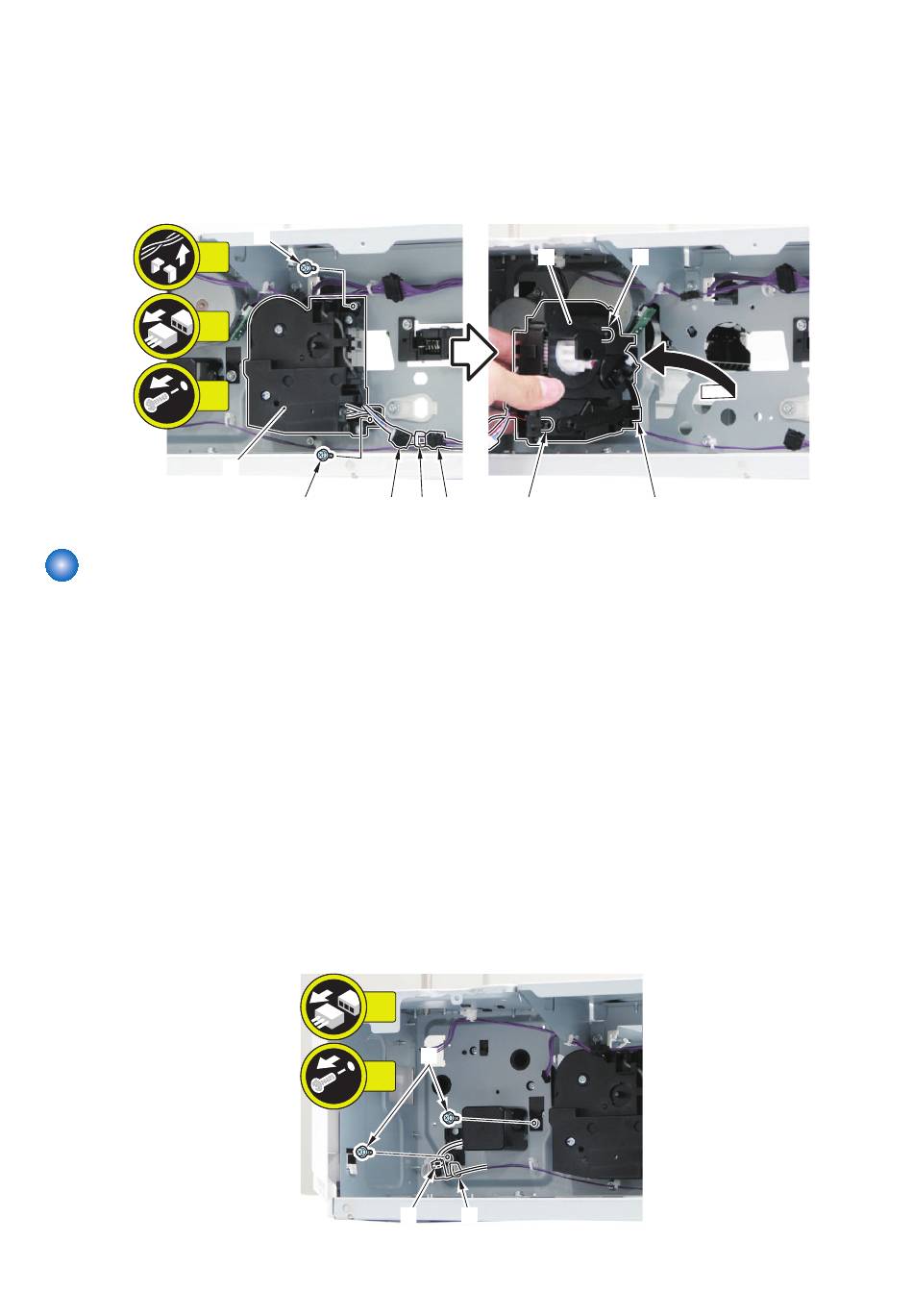

1. Remove the Lifter Motor [1].
• 2 Connectors [2]
• 1 Wire Saddle [3]
• 2 Screws [4]
• 1 Hook [5]
• 2 Bosses [6]
1x
2x
2x

Removing the Pickup Drive Unit

■ Preparation
1. Remove the Cassette 2.
2. "Removing the Rear Cover" on page 23
3. "Removing the Right Door" on page 23
4. "Removing the Pullout Motor" on page 31
5. "Removing the Pickup Motor" on page 32
6. "Removing the Pickup Unit" on page 30
■ Procedure
1. Open the Wire Saddle [1], disconnect the connector [2], and remove the 2 screws [3].
• 1 Wire Saddle [1]
• 1 Connector [2]
• 2 Screws [3]
[4]
[1]
[4] [2]
1x
2x
[1]
[3] [2] [6]
[3]
[2] [1]
33
4. Disassembly/Assembly
[6]
[5]
