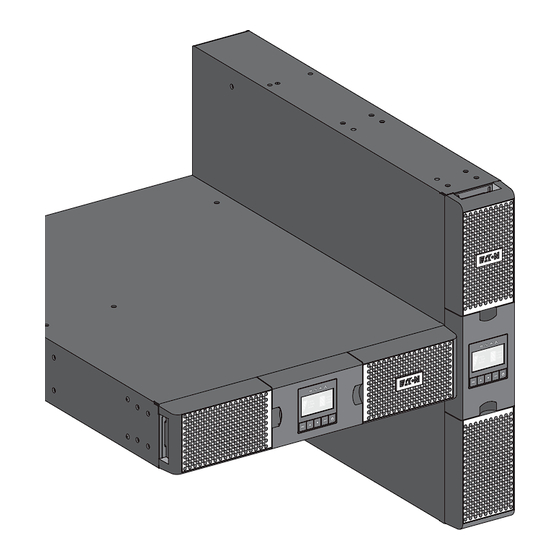

- Page 1 Eaton 9PX Lithium-Ion Advanced Users Guide 9PX1500RT-L 9PX2000RT-L 9PX3000RT-L 9PX1500GRT-L 9PX2200GRT-L 9PX3000GRT-L 9PXEBM48RT-L 9PXEBM72RT-L p/n: P-164001006 Revision 02...
- Page 2 (WEEE) in the trash. For proper disposal, contact your local recycling/reuse or hazardous waste center. ©Copyright 2023 Eaton, Raleigh, NC, USA. All rights reserved. No part of this document may be reproduced in any way without the express written approval of Eaton.
- Page 3 S S a a f f e e t t y y o o f f P P e e r r s s o o n n s s • The system has its own power source (the battery). Consequently, the power outlets may be energized ven if the systems is disconnected from the AC power source.
- Page 4 During the replacement of the Battery Module, it is imperative to use the same type and number of element as the original Battery Module provided with the UPS to maintain an identical level of performance and safety. If there are any questions, don’t hesitate to contact your local EATON representative.
-
Page 5: Table Of Contents
6 6 U U P P S S M M a a i i n n t t e e n n a a n n c c e e ....................................................... . 3 3 5 5 6.1 Storing the Equipment ..........................35 Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... - Page 6 8 8 S S p p e e c c i i f f i i c c a a t t i i o o n n s s ......................................................... . 4 4 5 5 8.1 Model Specifications ..........................45 Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02...
-
Page 7: 1 I I N N T T R R O O D D U U C C T T I I O O N
Then follow the indications in this manual. To discover the entire range of Eaton Tripp Lite SmartOnline series products and the options available for the Eaton Tripp Lite SmartOnline series range, we invite you to visit our web site at Eaton Tripp Lite.com... - Page 8 With the Eaton 9PX, you can safely eliminate the effects of power disturbances and guard the integrity of your equipment. Providing outstanding performance and reliability, the Eaton 9PX’s unique benefits include: •...
-
Page 9: 2 P P R R E E S S E E N N T T A A T T I I O O N
50.2 / 22.8 9PXEBM48RT-L 17.6 x 17.2 x 1.7 / 448 x 438 x 42.9 36.5 / 16.6 9PXEBM72RT-L 23.7 x 17.2 x 1.7 / 603 x 438 x 42.9 46.6 / 21.2 Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... -
Page 10: Rear Panels
Connector for ROO (Remote On/Off) control and RPO (Remote Power Off) 9PX 3000RT-L (*) (*) Primary and Grouped outlets ) are protected by 20A circuit breakers. 9PX 1500GRT-L 9PX 2000GRT-L & 9PX 3000GRT-L Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... -
Page 11: Accessories
C C o o n n t t r r o o l l P P a a n n e e l l The UPS has a five-button graphical LCD. It provides useful information about the UPS itself, load status, events, measurements and settings. Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... -
Page 12: Control Panel
The UPS is operating normally on Online or on High Efficiency mode. Green The UPS is on Battery mode. Orange The UPS is on Bypass mode. Orange The UPS has an active alarm or fault. Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... -
Page 13: Lcd Description
End of backup time Low Battery Warning settings: battery is running low. [Capacity] [0%] ... [100%] [Runtime] [0mn] ... [60mn] The alarm triggers when the set percentage of battery capacity or remaining back-up time is reached. Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... -
Page 14: Display Functions
Sets On/Off conditions Battery settings Sets battery configuration Com settings Sets communication parameters Event Log Event filter Selects faults, alarms and/or events to display Event list Displays the events stored Reset fault list Clears events Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... -
Page 15: User Settings
100V] [110V] [120V] [125V] [120V] [200V] [208V] [220V] [230V] [208V] [240V] Output frequency Mode: [Normal] [Converter] [Normal] In/Out settings [Marine] Frequency can be changed in Frequency [Converter] mode In [Marine] mode output frequency follows input frequency Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... - Page 16 10 seconds prior to restart, If set to Disabled, shutdown sequence will not complete, UPS stays on. Energy saving [Enabled] [Disabled] [Disabled] [Timer] [1min] … [15min] [5min] [Level] [100W] … [1000W] [100W] Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02...
- Page 17 Sets Input signals parameters (function, delay, operation) through external contact connectors or RS232. ROO port: Com settings Input signals - [Function]: [No] [ROO] [RPO] [No] [Building alarm] [Forced bypass] [On generator] [Remote shutdown] Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02...
- Page 18 [DB9-8]: [On bat] [Low bat] [DB9-8] [On bat] [Bat fault] [Bypass] [UPS OK] [Load protected] [Load powered] [General alarm] [Ext. charger ON] [OVL pre-alarm] Com settings (cont) Remote command [Enabled] [Disabled] If [Enabled] Enabled, shutdown or restart Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02...
- Page 19 [Bypass overload] [Current limit] [Short circuit] [Inverter overload] [Power overload] [Low battery] [On bypass] [UPS OK] [Load protected] [Load powered] [Ext. charger Defines which event or fault generate a general alarm through Output signal screen. Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02...
- Page 20 User Settings Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02...
-
Page 21: Inspecting The Equipment
C C h h e e c c k k i i n n g g t t h h e e A A c c c c e e s s s s o o r r y y K K i i t t Figure 4. 9PX1500RT-L / 9PX2000RT-L / 9PX3000RT-L... -
Page 22: Checking The Accessory Kit
If you ordered an optional Extended Battery Module (EBM), verify that the following additional items are included with the EBM: Battery power cable with attached battery detection cable Stabilizer bracket (4 screws included) Rack kit for 19-inch enclosures (optional) EBM Installation manual. Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... -
Page 23: Connecting The Internal Battery
A small amount of arcing may occur when connecting the internal batteries. This is normal and will not harm personnel. Connect the cables quickly and firmly. Connect the two battery connectors together. Put back the front panel, then clip the center cover. Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... -
Page 24: Tower Installation
If installing additional cabinets, place them next to the UPS in their final location. • Adjustment of the orientation of the LCD panel and of the logo. • Adjustment of the angle of vision of the LCD panel. Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... -
Page 25: Rack Installation
R R a a c c k k I I n n s s t t a a l l l l a a t t i i o o n n • Rack mounting of UPS, EBM, and accessory modules. Follow steps 1 to 4 for module mounting on the rails. The rails and necessary hardware are supplied by EATON. Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... -
Page 26: Connecting The Ebm(S)
EBM 4 NOTE The EBM communication wiring connections are directional and must be connected in the correct sequence to ensure proper detection, regulation and lifecycle monitoring of the integrated battery management system (BMS). Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... -
Page 27: Detecting Other Accessories
D D e e t t e e c c t t i i n n g g o o t t h h e e r r A A c c c c e e s s s s o o r r i i e e s s Tip If you ordered other UPS accessories, refer to specific user manuals to check the connection to the UPS. Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... -
Page 28: Ups Connection Without Hotswap Mbp Module
Note. The UPS charges the battery as soon as it is connected to the AC-power source, even if button is not pressed Once the UPS is connected to the AC-power source, eight hours of charging are required before the battery can supply the rated backup time. Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... -
Page 29: Connection With A Hotswap Mbp Module ( Optional Accessory)
LOAD * 9PX 1500RT-L: To connect to MBP-115, 9PX 3000RT-L follow the same procedure as for the 9PX 2000RT / 9PX 3000RT. MBP-130 35 36 LOAD Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... - Page 30 "UPS ON - OK to switch" on the HotSwap MBP module goes ON. HotSwap MBP module test 1. Set switch to Bypass position and check that the load is still supplied. 2. Set switch back to Normal position. Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02...
-
Page 31: Communication Ports
Plug and Play UPS ON Output UPS ON BAT Mode Output Output Power supply for external signals or options Contact characteristics (optocoupler) • Voltage: 48 V DC max • Current: 25 mA max Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... -
Page 32: Ups Remote Control Functions
UPS when the Remote Power Off function is activated. Leave the RPO connector installed in the RPO port on the UPS even if the RPO function is not needed. Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... - Page 33 UPS from the front panel. Normally Closed Plug the RPO connector into the back of the UPS and fix the screws. Connect and restart the UPS according to the previously described procedures. Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02...
- Page 34 • INDGW-M2 card- has SNMP and HTTP capabilities and a Modbus to facilitate remote monitoring of the UPS system through any Building Management System. Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02...
- Page 35 UPS or power information. If there is a power outage and the 9PX UPS battery power becomes low, Eaton Software suite can automatically shut down your computer system to protect your data before the UPS shutdown occurs.
- Page 36 UPS Remote Control Functions Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02...
-
Page 37: Start-Up And Normal Operation
O O p p e e r r a a t t i i n n g g M M o o d d e e s s The Eaton 9PX front panel indicates the UPS status through the UPS indicators, see section 2.4 Control Panel... -
Page 38: Ups Shutdown
10 ms when utility fails. Transfers to High Efficiency mode will be active after 5 minutes of Bypass voltage monitoring: if Bypass quality is not in tolerance, then the UPS will remain in Online mode. Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... -
Page 39: Configuring Bypass Settings
Configuring Bypass Settings Eaton recommends to use the HE mode only to protect IT equipment. To set the High Efficiency mode: Select Settings, In/Out settings, and High Efficiency mode. Select Enabled and Enter to confirm. The UPS transfers to High Efficiency mode after 5 minutes. -
Page 40: Retrieving The Event Log
5 5 . . 1 1 0 0 R R e e t t r r i i e e v v i i n n g g t t h h e e F F a a u u l l t t L L o o g g To retrieve the Fault log through the display: Press any button to activate the menu options, then select Fault log. Scroll through the listed faults. Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... -
Page 41: Storing The Equipment
If you store the equipment for a long period, recharge the battery every 6 months by connecting the UPS to utility power. The internal batteries charge to 90% capacity in less than 3 hours. However, Eaton recommends that the batteries charge for 48 hours after long-term storage. Check the battery recharge date on the shipping carton label. -
Page 42: Replacing Batteries
12. If the UPS was shut down during the battery replacement process see 5.1 Start-up and Normal Operation Replacing the EBM(s) The EBM is heavy. Lifting the cabinet into a rack requires a minimum of two people. To replace the EBM(s): Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... -
Page 43: Battery Settings Reset
BMS auto setup to advance the menu Connectivity test Reset battery life Functions reset NMC card reset BMS auto setup Done Reset the battery life counter in the “Functions Reset” option of the control menu. Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... - Page 44 See section 5.1 Start-up and Normal Operation for powering the UPS back to normal operation. If the UPS has a MBP module attached see 3.7 Detecting other Accessories for the correct startup procedure. Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02...
-
Page 45: Replacing The Ups Equipped With A Hotswap Mbp
This symbol indicates that you should not discard waste electrical or electronic equipment (WEEE) in the trash. For proper disposal, contact your local recycling/reuse or hazardous waste center. Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... -
Page 46: Recycling The Used Equipment
Recycling The Used Equipment Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... - Page 47 T T y y p p i i c c a a l l A A l l a a r r m m s s a a n n d d F F a a u u l l t t s s The Eaton 9PX are designed for durable, automatic operation and also alert you whenever potential operating problems may occur.
-
Page 48: Silencing The Alarm
• Model number • Serial number • Firmware version number • Date of failure or problem • Symptoms of failure or problem • Customer return address and contact information Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... -
Page 49: Ce Compliance Contact
C C E E C C o o m m p p l l i i a a n n c c e e C C o o n n t t a a c c t t • Eaton I.F. SAS - 110 Rue Blaise Pascal - 38330 Montbonnot St Martin – France. Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... - Page 50 CE Compliance Contact Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02...
- Page 51 34.8 / 15.8 9PX2200GRT-L 23.8 x 17.3 x 3.4 / 605 x 440 x 86.5 48.6 / 22.1 9PX3000GRT-L 23.8 x 17.3 x 3.4 / 605 x 440 x 86.5 50.2 / 22.8 Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02...
-
Page 52: Model Specifications
98% for 2K G models 90% fo r 2K G models 94% for 3K G models 97.2% for 3K LV models 86% for 3K LV models 98% for 3K G models 89% for 3K G models Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02... - Page 53 Output Connection Output Cable 9PX1500RT-L 5-15R (8) 9PX2000RT-L 5-20R(2) + L5-20R(1) 5-20R(2) Group1 5-20R(2) Group2 9PX3000RT-L 5-20R(2) + L5-30R(1) 5-20R(2) Group1 5-20R(2) Group2 9PX1500GRT-L (4) IEC10A (2) IEC10A (2) IEC10A (2) IEC 10A Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02...
- Page 54 < 47 dBA at 1 meter typical for 2K et 3K models < 40 dBA at 1 meter typical for 70, 1K et 1K5 models * 9PX1500RT-L, 9PX2000RT-L, 9PX3000RT-L, 9PX1500GRT-L, 9PX2200GRT-L, 9PX3000GRT-L have CE/ cULus/Energy Star/ BSMI. 9PXEBM48RT-L, 9PXEBM72RT-L have CE / cULus / NOM.
- Page 55 Lithium Iron Phosphate (LFP) battery module Lithium-Ion float service life 8 years /25°C Monitoring Integrated battery management system (BMS) for temperature regulation and life cycle monitoring. EBM Battery Cable Length 350 mm / 13.78 in Eaton 9PX Lithium-Ion User Guide P-164001006—Rev 02...
