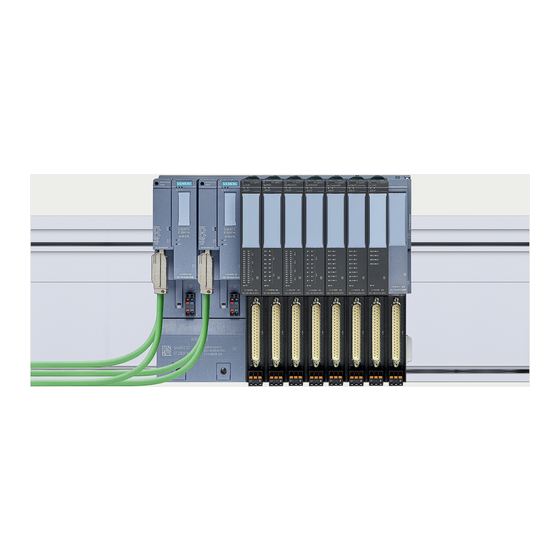

Summary of Contents for Siemens SIMATIC ET 200PA SMART+
Page 3
English ....................3 简体中文 ................... 13...
Page 5
WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
Page 6
(e.g. ambient conditions, possible use in safety-critical systems), refer to the associated Documentation (https://support.industry.siemens.com/cs/in/en/ps/29688/man). If third-party products and components are used, these have to be recommended or approved by Siemens. Proper transport, proper storage, setup, assembly/disassembly, installation, commissioning, operation, maintenance and decommissioning are required to ensure that the product and its accessories operate safely and without any problems.
Security information Siemens provides products and solutions with industrial security functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain –...
Connection of the power supply Only qualified personnel are permitted to connect the power supply. Pay special attention to information in the Documentation (https://support.industry.siemens.com/cs/in/en/ps/29688/man) and on the nameplate of the device. Note The power supply must be connected by the operator/user in accordance with the national regulations regarding installation.
If the device is intended for use in hazardous areas (gas-air or gas-dust mixture), note the specific details in the Documentation (https://support.industry.siemens.com/cs/in/en/ps/29688/man). You can recognize that the device is intended for use in hazardous areas from the Ex marking in the EC Declaration of Conformity, in the associated certificate or on the nameplate.
Clearance at bottom: 20 mm – Clearance on left: 10 mm – Clearance on right: 10 mm Note You can find more information in System Manual ET 200PA SMART+ distributed I/O system (https://support.industry.siemens.com/cs/in/en/view/109822231). ET 200PA SMART+ distributed I/O system A5E52951242-AA, 07/2023...
Page 11
Terminal block Plug-in / lever out with a None None screwdriver (see System Manual ET 200PA SMART+ distributed I/O system (https://support.industry.siemens.c om/cs/in/en/view/109822231)) Interface module Snap-in / release with screwdriver Screwdriver 4.5 mm blade None (see System Manual ET 200PA width SMART+ distributed I/O system (https://support.industry.siemens.c...
Cables with and without ferrule Rule for ... Interface module (supply Terminal blocks voltage) (push-in terminal) Permitted cable cross-sections for solid cables 0.2 to 2.5 mm : 24 to 13 Permitted cable cross- Without ferrule 0.2 to 2.5 mm sections for flexible : 24 to 13 AWG*: 24 to 14 cables...
Page 13
Mechanical alteration of the control cabinet Note Siemens is not responsible and makes no guarantee for modifications to the configuration that was handed over to the customer. Only engineers or designers who are familiar with the relevant technologies, regulations and standards are permitted to plan modifications.
Trademarks All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
