HermanMiller Action Office Installation

HermanMiller
Action Office Lateral File Installation
®
How to assemble Action Office
Tools Required
Tape Measure 3/8" Box or
Socket Wrench

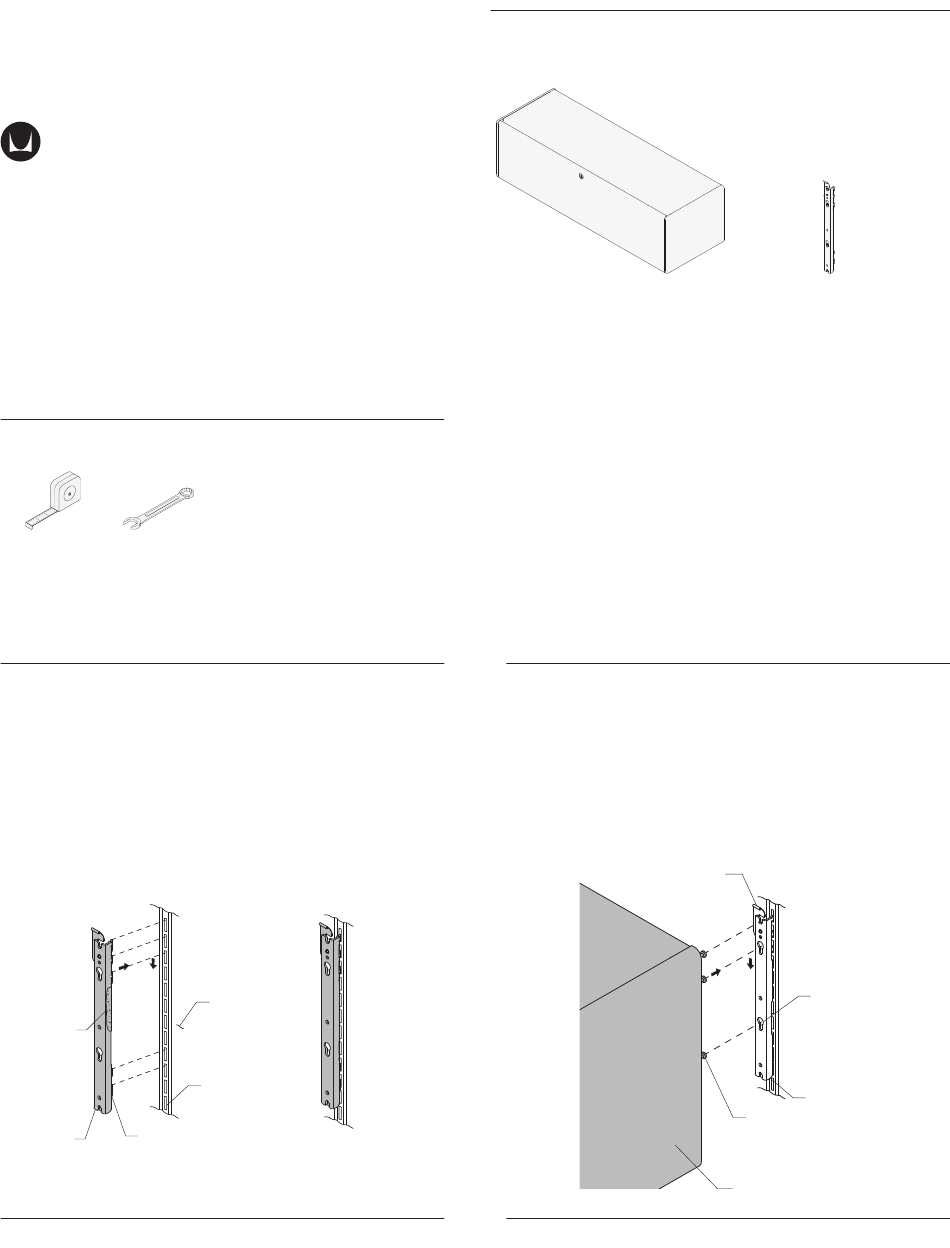

Assembly Procedure
Step 1
1.1 Install hanger clip assembly on hanger frame or wall insert by
inserting lock tabs in slots compressing resilient pads and sliding down.
1.2 Lock tab will engage in hanger frame or wall insert and resilient pad
will maintain contact preventing accidental dislodging.
1.3 Hanger clip assembly may be removed by applying inward pressure to
compress resilient pad and sliding clip assembly up.
Resilient
pad
Hanger Clip
Lock Tab
Assembly
HermanMiller
Lateral File
®
Panel
Hanger Frame
or Wall Insert
Installed Position
Parts Included
Lateral File
Step 2
2.1 Two persons are required to install product on hanger clip assembly.
2.2 Insert screws in key hole slots and move down to engage screws in
slots. Top screw will depress anti-dislodging clip and clip will capture
screw and prevent the product from being accidentally dislodged.
2.3 Product may be removed by depressing anti-dislodging clip and lifting
product up and out.
Anti-Dislodging
Clip
1 115200 rev H
Left and Right Hand Hanger
Clip Assemblies
Key Hole Slot
Hanger Clip
Assembly
Screw
Product
Assembly Instructions
