HermanMiller FT194.A Installation And Disassembly For Recycling Instructions

Parts Included

FT194.A

Vertical Cable Shield:

Frame Stile

Vertical Cable

Shield

Press Vertical Cable Shield into each side of pass-through

opening in back-to-back Frame Stiles.

IMPORTANT: Save these instructions for layout changes.

® Y, Z and Canvas Office Landscape are among the registered trademarks of Herman Miller, Inc.

Illustrations and specifications are based on the latest product information available at the time of publication.

The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.

Canvas Office Landscape

Cable Shield Installation and

FT194.B

Vertical Cable Shield

Part no. 1b2t8s rev D.

Table of Contents

Do you have a question about the FT194.A and is the answer not in the manual?

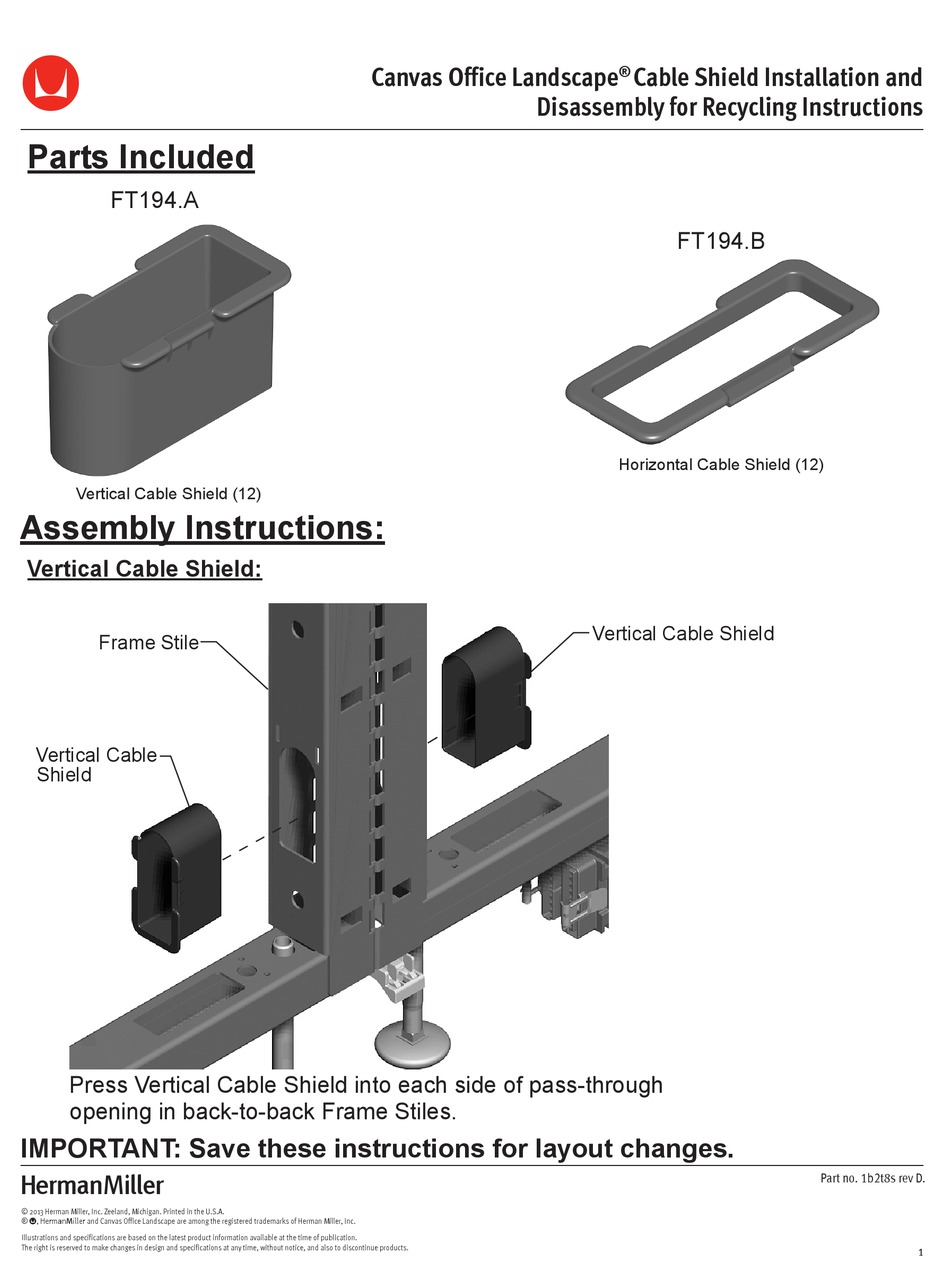

Page 1 Canvas Office Landscape Cable Shield Installation and ® Disassembly for Recycling Instructions Parts Included FT194.A FT194.B Horizontal Cable Shield (12) Vertical Cable Shield (12) Assembly Instructions: Vertical Cable Shield: Vertical Cable Shield Frame Stile Vertical Cable Shield Press Vertical Cable Shield into each side of pass-through opening in back-to-back Frame Stiles.
Page 2 Horizontal Cable Shield: Horizontal Cable Shield Frame Rail Horizontal Cable Shield Press Horizontal Cable Shield into opening in each side of Frame Rail. Horizontal Cable Shield Horizontal Cable Shield Wire Harness Support Rail Cable Trough Press Horizontal Cable Shield into opening Press Horizontal Cable Shield into in Wire Harness Support Rail.
Page 3 Disassembly for Recycling: Materials Identification and Segregation: Where possible, plastic components are marked with ASTM recycling codes. Use these codes to identify material type for recycling. Non marked components should be treated as mixed plastic. Ferrous metals can be identified using a small magnet for recycling.
