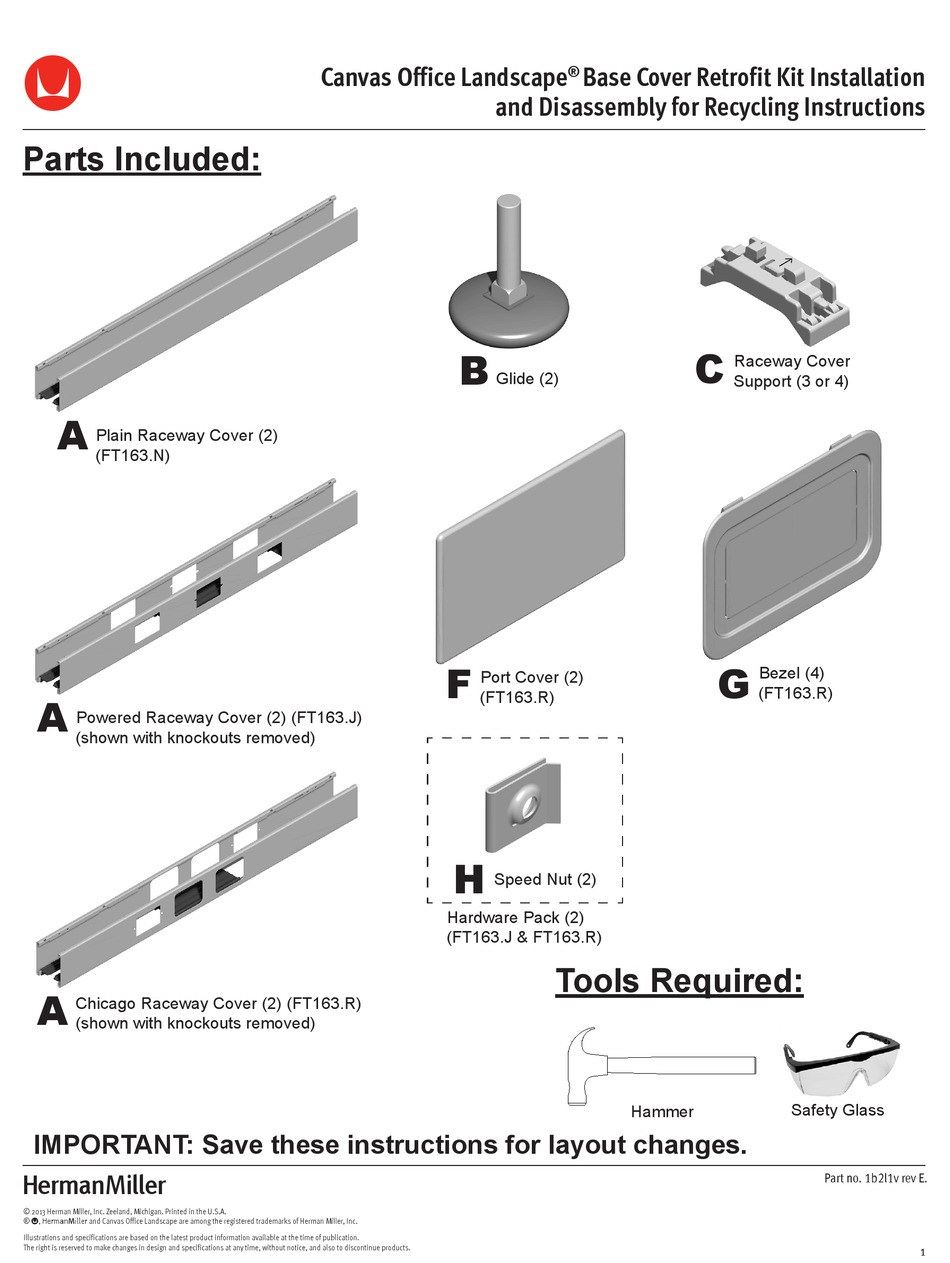

Parts Included:
A
Plain Raceway Cover (2)
(FT163.N)
A
Powered Raceway Cover (2) (FT163.J)
(shown with knockouts removed)
A
Chicago Raceway Cover (2) (FT163.R)
(shown with knockouts removed)
IMPORTANT: Save these instructions for layout changes.
Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
® Y, Z and Canvas Office Landscape are among the registered trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
Canvas Office Landscape
and Disassembly for Recycling Instructions
B
Glide (2)
F
Port Cover (2)
(FT163.R)
H
Speed Nut (2)
Hardware Pack (2)
(FT163.J & FT163.R)
Base Cover Retrofit Kit Installation
®
C
Raceway Cover
Support (3 or 4)
G
Tools Required:
Hammer
Bezel (4)
(FT163.R)
Safety Glass
Part no. 1b2l1v rev E.
