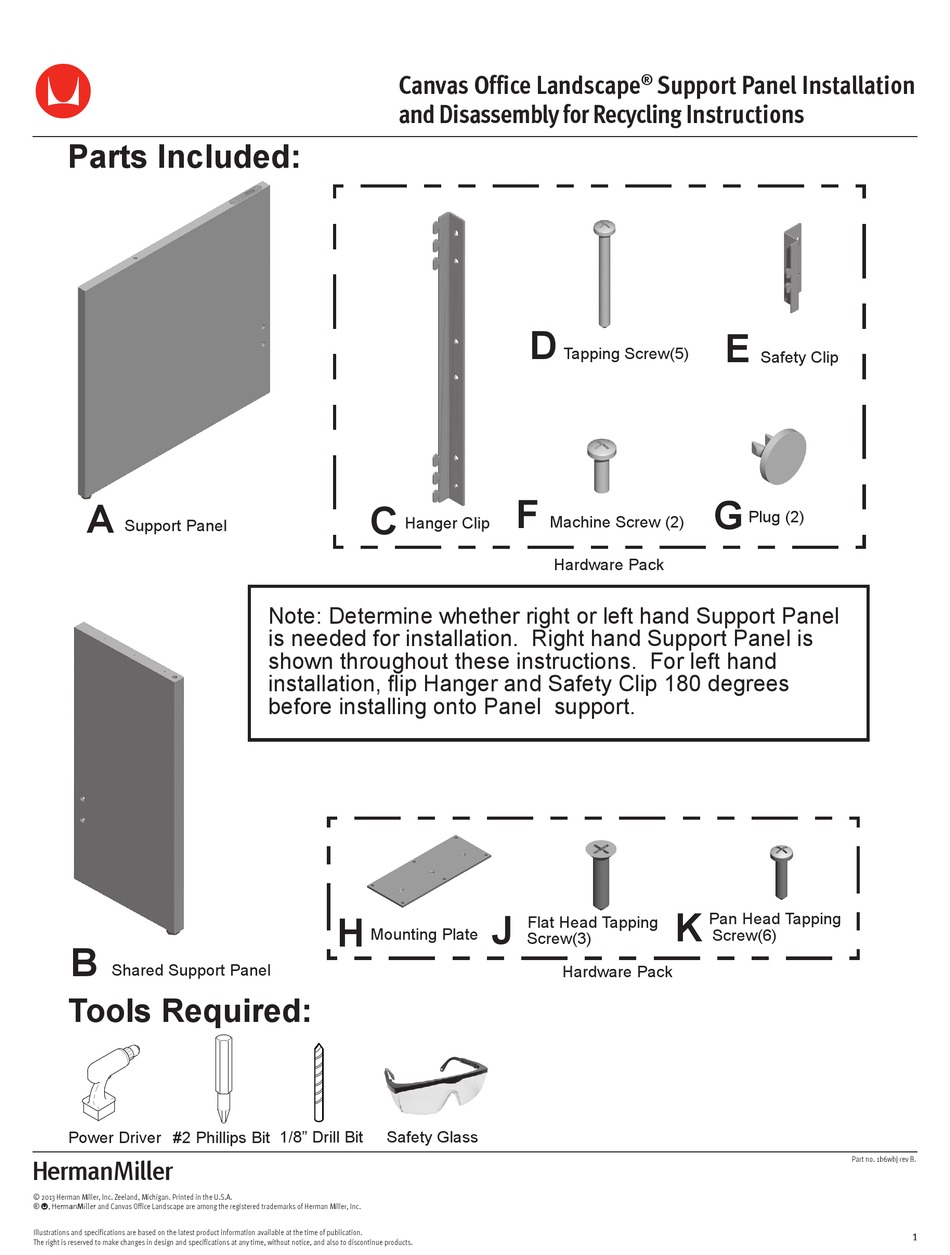

Parts Included:

A
Support Panel
B
Shared Support Panel

Tools Required:

Power Driver #2 Phillips Bit 1/8" Drill Bit
Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
® Y, Z and Canvas Office Landscape are among the registered trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
Canvas Office Landscape
and Disassembly for Recycling Instructions
C
Hanger Clip
Note: Determine whether right or left hand Support Panel
is needed for installation. Right hand Support Panel is
shown throughout these instructions. For left hand
installation, flip Hanger and Safety Clip 180 degrees
before installing onto Panel support.
H
Mounting Plate
Safety Glass
Support Panel Installation
®
D
Tapping Screw(5)
F
Machine Screw (2)
Hardware Pack
J
Flat Head Tapping
Screw(3)
Hardware Pack
E
Safety Clip
G
Plug (2)
K
Pan Head Tapping
Screw(6)
Part no. 1b6wbj rev B.
1
