Speco CVC-7705DNV Specifications

Specifications subject to change
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880

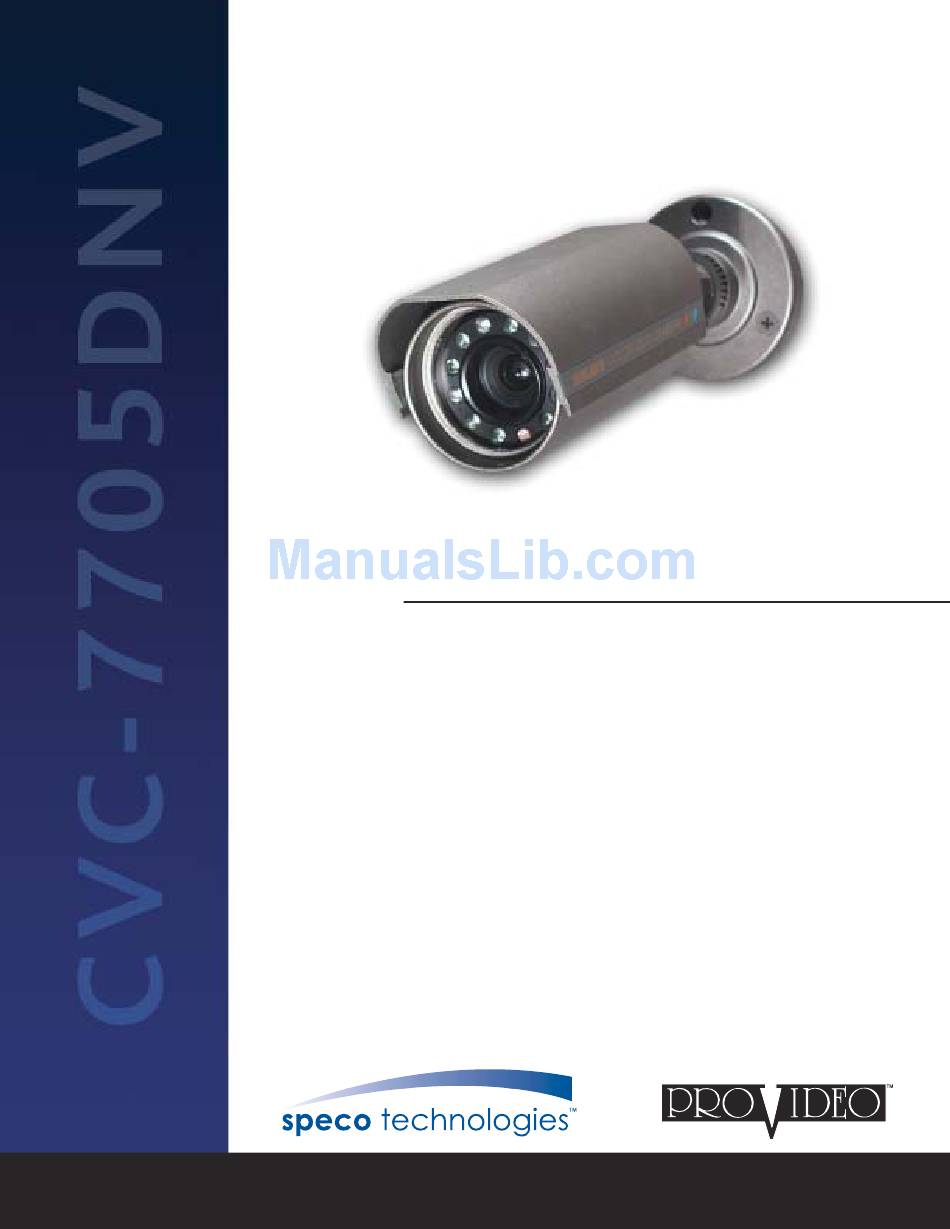

CVC-7705DNV
H.E.A.T. Weatherproof Color Day/Night Bullet
Camera with Advanced Technology, Built-in
Infrared LEDs, Auto Iris Varifocal Lens and Sunshield
Our color day/night bullet camera makes for an ideal 24-hour operational
camera. It offers color images by day, and automatically switches to B/W
at night. IR range up to 60˚ controlled by a CDS sensor. Mounting bracket
protects the cable and is conduit compatible.
Specifications
Resolution
Minimum Illumination
Image Device
Lens
Electronic Shutter
Operating Temperature
Humidity
Synchronization
Scanning frequency
Number of Pixels
Video S/N Ratio
Power Consumption
Power Requirements
Weight
Dimensions
Cables
For more information contact us at:
Ultra high 470 line
0 lux with operating LEDs, 0.03 with existing light
1/3" color advanced image sensor
4-9mm auto iris varifocal lens
Auto 1/60 - 1/100,000 seconds
-20˚F to 122˚F
Within 95%RH
Line lock and adjustable phase in 24VAC mode
15.75 kHz horizontal 60 Hz vertical
512 horizontal x 492 vertical
Greater than 50 db
180MA
24V AC @ 40VA or 12V DC @ 1 amp
7.5 oz.
7.2"L x 2.7"W x 2.7"H
Cables are routed through the mount for protection
from vandalism
