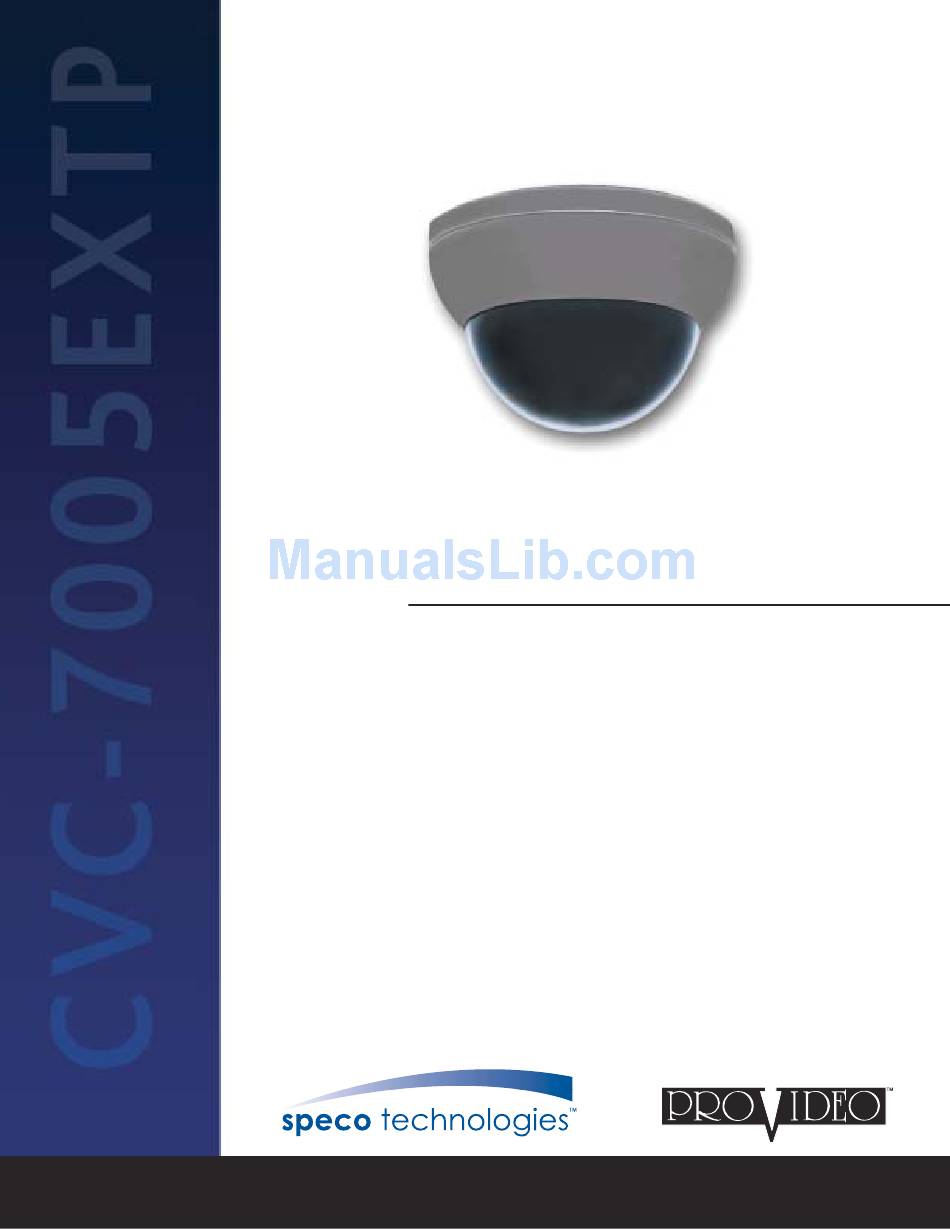

Speco ProVideo CVC-7005EXTP Specification Sheet

Specifications subject to change
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880
CVC-7005EXTP
H.E.A.T. - Color Vandal Resistant Varifocal
Dome Camera with HAD* Technology
Our vandal resistant 4-9mm varifocal dome camera features HAD* technology. It has
an ultra high impact dome cover and a heavy duty metal base. It also offers a low smear
level that prevents glare in dark conditions, preset auto exposure settings, and turbo AGC
(automatic gain control). This camera is also available with white housing under model
CVC-7005EXTP/W.

Specifications

Resolution
Image Device
Minimum Illumination
Electronic Shutter
Lens
Housing
Operating Temperature
S/N Ratio
Video Output
Power Consumption
Power Supply
Scanning Frequency
Dimensions
Weight
*HAD is a trademark of Sony Corporation
For more information contact us at:
Ultra high 470 line
1/3" color HAD* image sensor
0.03 lux F 1.2
Auto 1/60 - 1/100,000 seconds
4-9mm varifocal lens
Ultra high impact dome cover,
heavy duty metal base, dark gray
- 20 degrees F to 122 degrees F
Greater than 50 dB
Video- BNC, power- DC jack
130 ma
Regulated 12V DC power supply
included (UL and CSA listed)
15.75 kHz horizontal 60 Hz vertical
5.1"W x 3.3"H
1.5 lbs.
