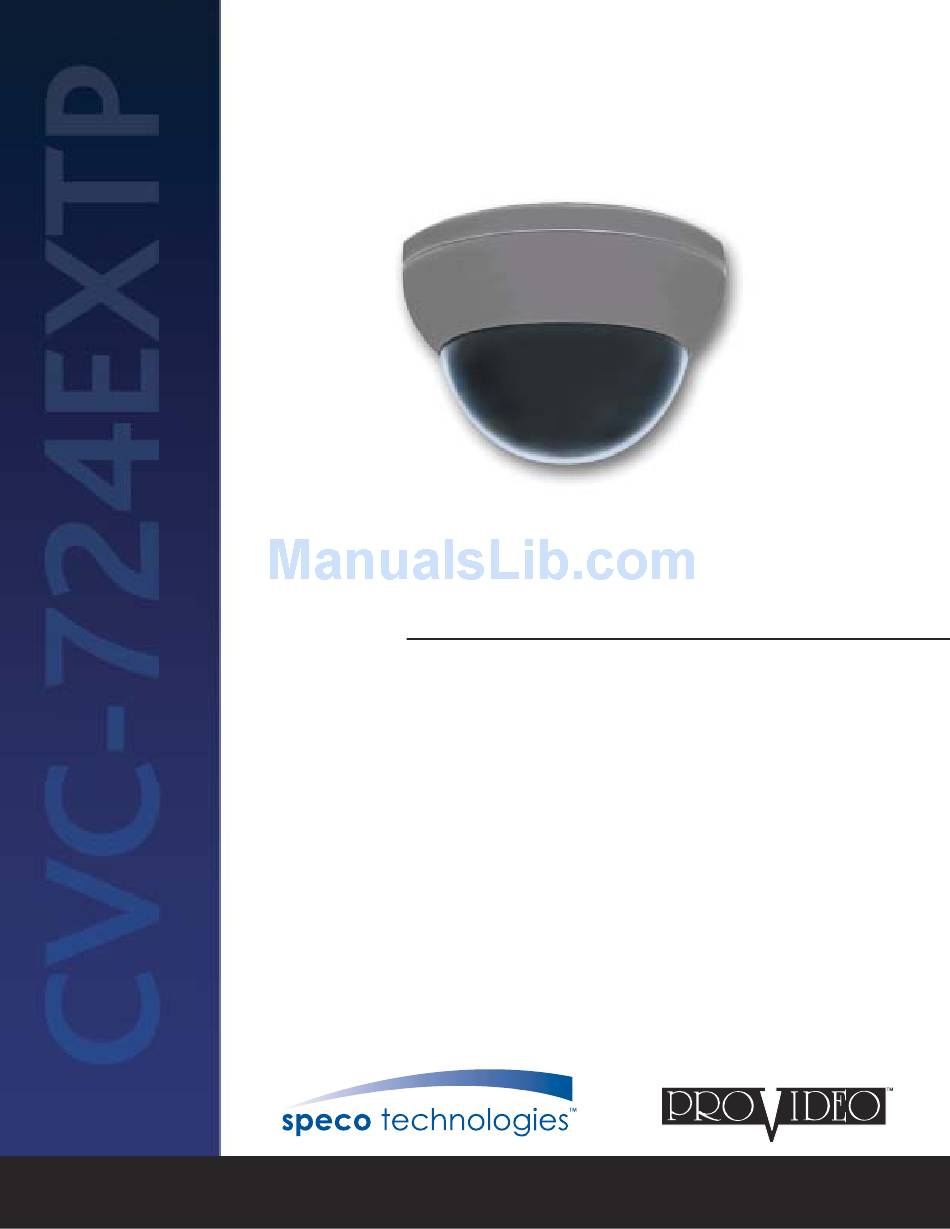

CVC-724EXTP
Color Vandal Resistant Dome Camera with
4mm Lens and 24V AC Line Locked Operation
Our color vandal resistant dome camera operates on a 24V AC power supply, which
allows for line lock and adjustable phase. It offers HAD* technology and a 4mm lens.
Additional features include a low smear level, which prevents glare in dark conditions,
pre-set auto exposure and turbo AGC (automatic gain control). The heavy duty
housing is built to withstand the blows from a 10 pound sledge hammer.

Specifications

Resolution
Image Device
Minimum Ilumination
Electronic Shutter
Lens
Housing
Operating Temperature
S/N Ratio
Video Output
Power Consumption
Power Supply
Dimensions
Weight
*HAD is a trademark of the Sony Corporation.
For more information contact us at:
Ultra high 470 line
1/3" color HAD* image sensor
0.03 lux low light sensitivity
1/60 - 1/100,000 seconds
4mm lens-optional lenses available
Ultra high impact dome cover,
heavy duty metal base, dark gray, IP66
- 20 degrees to 122 degrees F
Greater then 50 dB
1.0 Vp-p 75 ohm
130 ma
24V AC @ 20VA required
5.1"W x 3.3"H
1.5 lbs.
