Speco ProVideo CVC-7WMTD Specification Sheet

Specifications subject to change
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880

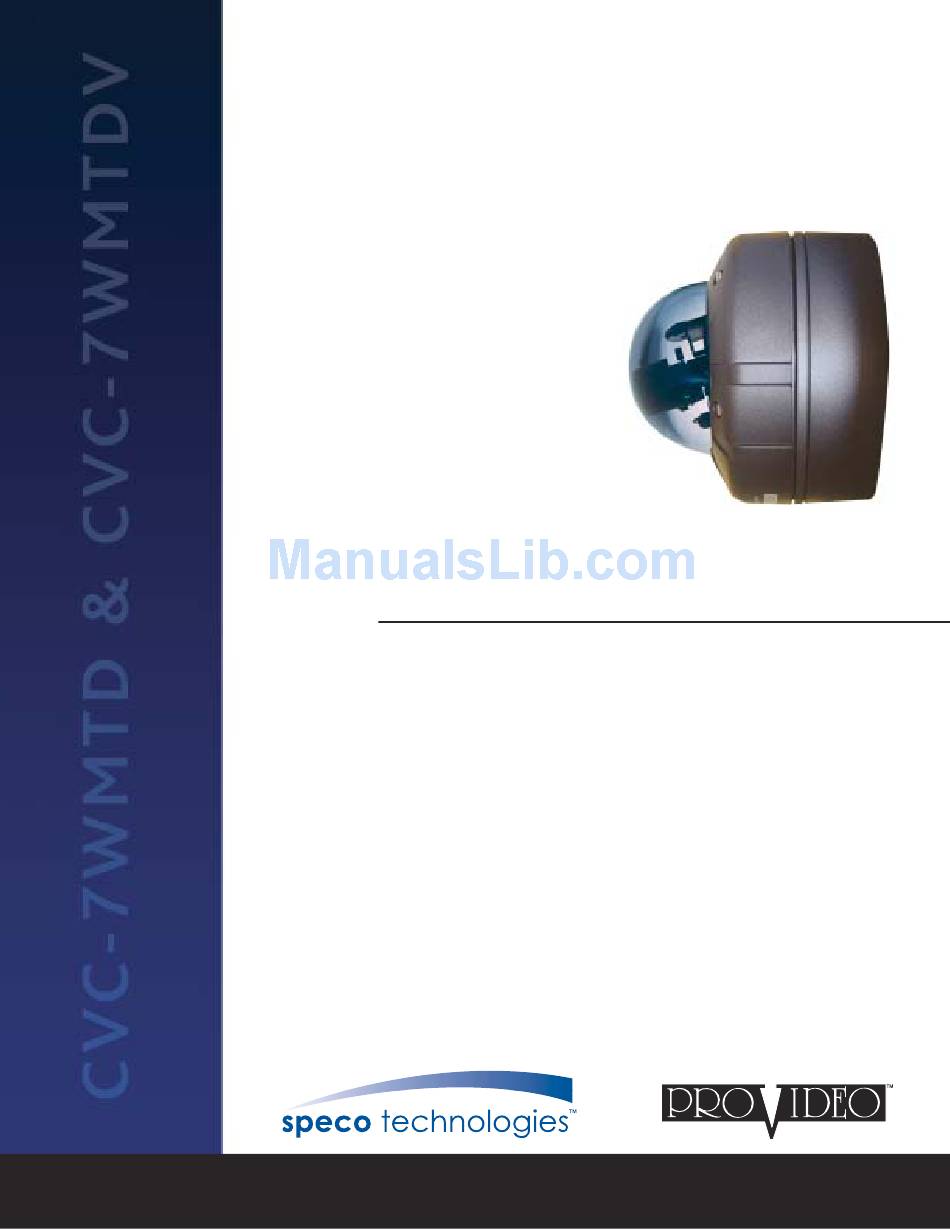

CVC-7WMTDV
Vandal-Resistant High Resolution Wall/Ceiling Mount
Color Dome Camera with Auto Iris Varifocal Lens
Also available:
CVC-7WMTD standard resolution
• Wall or ceiling mounting through the use
of a unique internal 3-way camera bracket
• Flush or surface mounting using the
supplied surface mount adapter box
• Supplied with a tinted and clear "lined"
dome to accommodate a wide range of

lighting conditions

• Conduit compatible
• Safety strap holds dome cover in place
while making adjustments
• Fits over a standard 2-gang box

Specifications

Horizontal Resolution
Image Device
Min. Object Illumination
Effective Picture Element
Backlight Compensation
Electronic Shutter
Built In Lens
Video S/N Ratio
Weatherproof Standard
Operating Environment
TV Format
Video Signal Output
Power Consumption
Power Supply
Weight
For more information contact us at:
CVC-7WMTDV
480 TV lines
1/3" Sony HAD advanced image sensor
0.03 lux
470 K
Active-Turbo
1/60-1/100,000 seconds
DC auto iris varifocal lens 4-9mm, F1.6
Greater than 50db
IP67
-20˚F to 122˚F
NTSC, color
1.0Vp-p/75 ohms (BNC)
200mA
24V AC @ 20 VA or 12V DC regulated
power supply (UL & CSA listing) included
3.3 lbs
CVC-7WMTD
380 TV lines
1/4" CCD format
1 lux
210 K
Active
1/60-1/100,000 seconds
4mm, optional lenses available
Greater than 48db
IP67
-20˚F to 122˚F
NTSC, color
1.0Vp-p/75 ohms (BNC)
110mA
12V DC regulated power supply
(UL & CSA listing) included
3.2 lbs
