R-410A

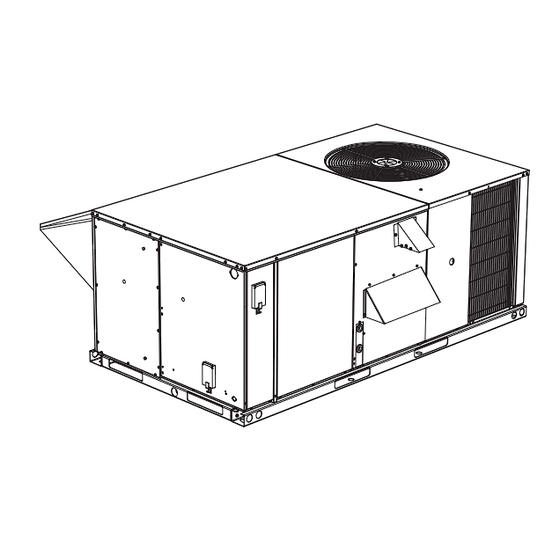

ZD SERIES
3 - 6 Ton
60 Hertz
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Rigging And Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Ductwork . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Condensate Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Compressors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Power And Control Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Typical Field Power and Control Wiring . . . . . . . . . . . . . . . . . . . . 15
Typical Power Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Typical Cool/Heat Control Wiring (Simplicity Lite ZD-03 through -
05) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
through -A6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Optional Electric Heat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Options/Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
RRS Economizer Interface Overview . . . . . . . . . . . . . . . . . . . 35
Smart Equipment™ Economizer Sequences. . . . . . . . . . . . . . 36
Dry Bulb Changeover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Single Enthalpy Changeover . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Dual Enthalpy Changeover . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Auto . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
1 ZD-03 through -A6 Unit Limitations . . . . . . . . . . . . . . . . . . . . . 6
2 ZD-03 through -A6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 ZD-03 through -A6 Unit Accessory Weights . . . . . . . . . . . . . . 8
4 ZD-03 through -A6 Unit Clearances . . . . . . . . . . . . . . . . . . . 10
5 ZD-03 through -A6 Utilities Entry . . . . . . . . . . . . . . . . . . . . . . 11
6 Control Wire Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
7 Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
9 ZD-03 through -A6 Physical Data . . . . . . . . . . . . . . . . . . . . . 30
10 Electric Heat Minimum Supply Air . . . . . . . . . . . . . . . . . . . . . 32
11 Gas Heat Application Data . . . . . . . . . . . . . . . . . . . . . . . . . . 32
12 Gas Pipe Sizing - Capacity of Pipe . . . . . . . . . . . . . . . . . . . . 33
14 Altitude/Temperature Correction Factors . . . . . . . . . . . . . . . 42
15 ZD Blower Performance Side Duct . . . . . . . . . . . . . . . . . . . . 45
16 ZD Blower Performance Bottom Duct . . . . . . . . . . . . . . . . . . 46
17 Belt Drive RPM Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
18 Indoor Blower Specifications (Belt Drive) . . . . . . . . . . . . . . . 48
1 ZD-03 through -A6 Component Location . . . . . . . . . . . . . . . . 6
2 Unit 4 Point Load Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Unit 6 Point Load Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4 Center of Gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Hood Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8 ZD-03 through -A6 Disconnect Location . . . . . . . . . . . . . . . 10
10 ZD-03 through -A6 Roof Curb . . . . . . . . . . . . . . . . . . . . . . . 11
11 Condensate Drain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
12 Compressor Restraining Bracket . . . . . . . . . . . . . . . . . . . . . 13

TABLE OF CONTENTS

Free Cooling Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Power Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Checking Supply Air CFM . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Cooling Sequence Of Operation . . . . . . . . . . . . . . . . . . . . . . . 50
No Outdoor Air Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Cooling Operation Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Electric Heating Sequence Of Operations. . . . . . . . . . . . . . . . 52
Electric Heat Operation Errors . . . . . . . . . . . . . . . . . . . . . . . 52
Gas Heating Sequence Of Operations . . . . . . . . . . . . . . . . . . 53
Gas Heat Operation Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Flash Codes or Error Messages . . . . . . . . . . . . . . . . . . . . . . . 54
Resets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Heat Anticipator Setpoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Start-up (Cooling) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Start-up (Gas Heat) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Checking Gas Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Start Up For Units Equipped for FER. . . . . . . . . . . . . . . . . . . . . . 57
Direct Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Belt Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Troubleshooting (Simplicity Lite Only) . . . . . . . . . . . . . . . . . . . . . 58
Fan On And Off Delays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Start-Up Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
LIST OF TABLES
19 Power Exhaust Specifications . . . . . . . . . . . . . . . . . . . . . . . . 48
20 Additional Static Resistance . . . . . . . . . . . . . . . . . . . . . . . . . 49
21 Electric Heat Limit Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
22 Electric Heat Anticipator Setpoints . . . . . . . . . . . . . . . . . . . . 53
24 2 Stage Gas Heat Limit Control Setting . . . . . . . . . . . . . . . . 54
25 Gas Heat Anticipator Setpoints . . . . . . . . . . . . . . . . . . . . . . . 55
26 Gas Rate-Cubit Feet per Hour . . . . . . . . . . . . . . . . . . . . . . . 57
27 Fan setup commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
28 ZD-03 (3.0 Ton) Operating Pressures . . . . . . . . . . . . . . . . . 60
29 ZD-04 (4.0 Ton) Operating Pressures . . . . . . . . . . . . . . . . . 60
30 ZD-05 (5.0 Ton) Operating Pressures . . . . . . . . . . . . . . . . . 61
31 ZD-A6 (6.0 Ton) Operating Pressures . . . . . . . . . . . . . . . . . 61
32 Unit Control Board Flash Codes . . . . . . . . . . . . . . . . . . . . . . 66
33 Ignition Control Board Flash Codes . . . . . . . . . . . . . . . . . . . 66
34 Smart Equipment™ UCB Details . . . . . . . . . . . . . . . . . . . . . 67
35 Cable for FC Buses and SA Buses in Order of Preference . 72
LIST OF FIGURES
15 Side Entry Gas Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
16 Bottom Entry Gas Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
17 Vent And Combustion Air Hood . . . . . . . . . . . . . . . . . . . . . . 35
18 RRS Economizer LCD and Keypad Layout. . . . . . . . . . . . . 35
19 SE-ECO1001-0 Economizer Controller . . . . . . . . . . . . . . . . 38
20 Belt Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
21 Altitude/Temperature Correction Factors . . . . . . . . . . . . . . . 43
22 Pressure Drop Across Coil . . . . . . . . . . . . . . . . . . . . . . . . . . 49
23 Gas Valve Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
24 Typical Single Stage Gas Valves . . . . . . . . . . . . . . . . . . . . . 56
25 Typical 2 Stage Gas Valves . . . . . . . . . . . . . . . . . . . . . . . . . 56
26 Proper Flame Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 56
27 Typical Flame Appearance . . . . . . . . . . . . . . . . . . . . . . . . . 56
28 Unit Control Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
29 Smart Equipment™ Unit Control Board . . . . . . . . . . . . . . . . 67
