FrSky ARCHER PLUS R10+ Instruction Manual

Instruction Manual for FrSky ARCHER PLUS R10+ Receiver
Introduction
The Archer line of receivers has been enhanced further with the addition of the new Archer Plus Series.
The Archer Plus Series receivers include some new features. Firstly an enhanced anti-RF-Interference capability
can offer a more solid RF performance, and this is in addition to existing anti-interfere performance in the spark
ignition process. These Plus series receivers are also with both ACCESS and ACCST D16 modes, where the RF
protocol is smart matched during the binding process on the radio. With the Black-Box function, some basic flight
data (like Power & Signal related) can be well preserved.
The R10+ receivers have 10 configurable channel ports, each channel port can be assigned as PWM, SBUS,
FBUS, or S.Port. The R10+ can be used as a Primary receiver in a redundant solution by setting a port as SBUS
In and connecting to any other FrSky receiver equipped with an SBUS Out port. With the FBUS protocol, the
Archer Plus series receivers can open up the possibility of seamlessly pairing with multiple telemetry devices
(XACT servos, ADV Sensors, etc.) as well as simplifying the builds setup. This receiver also supports full-range
signal strength with dual detachable antennas and guarantees optimal antenna reception and range.

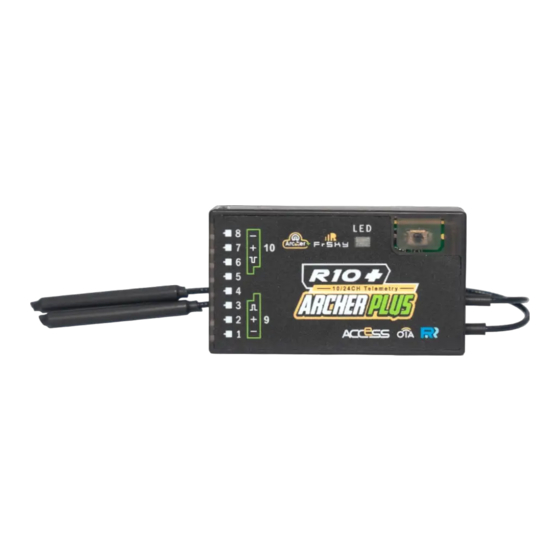

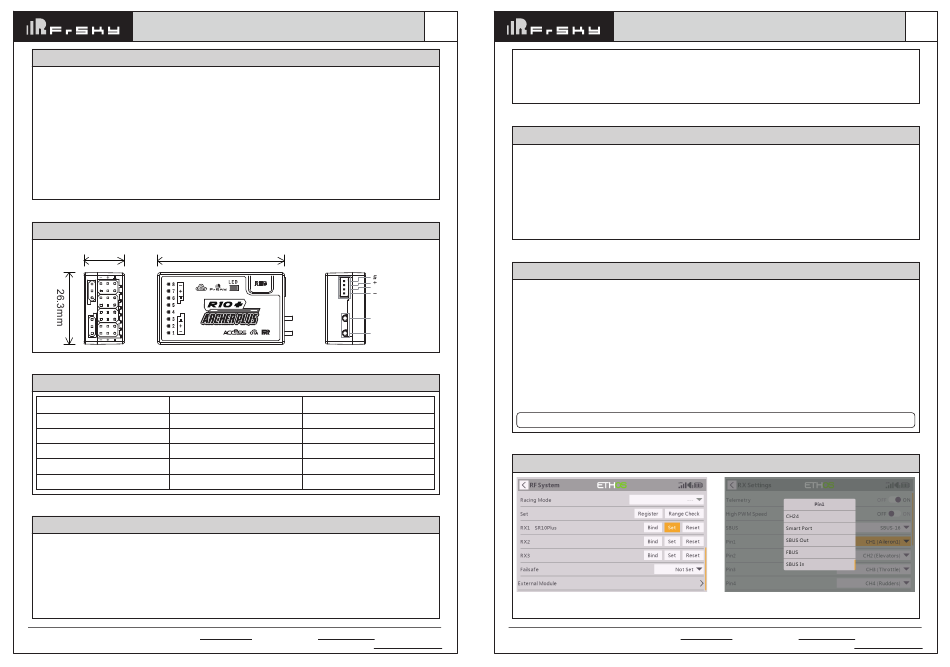

Overview
14.7mm 46.5mm
10
9
Working State
Green LED
On
Flash
On
Flash
Off
Specifications
● Dimension: 46.5*26.3*14.7mm (L*W*H)
● Weight: 13g
● 10 Configurable Channel Ports
CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In
CP2-10: PWM / SBUS Out / FBUS / S.Port
● SBUS Out (Supports 16CH / 24CH mode)
● Operating Voltage Range: 3.5 -10V
● Operating Current: ＜100mA@5V
FrSky Electronic Co., Ltd. www.frsky-rc.com
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
(Upgrade)
AIN2 (max: 35V)
1 0 / 2 4 C H T e l e m e t r y
2.4G Antenna
2.4G Antenna
Red LED Status
On Register
Flash Register successfully
Off Bind
Off Work Normally
On Failsafe
Contact us : frsky@frsky-rc.com
Version
1.0
● Control Range: Full range* with telemetry
(*Full Range: ＞2km, range may vary based on local conditions.)
● Voltage Measurement Range via AIN2 (External device): 0-35V
(Battery Voltage Divider Ratio: 1:10)
● Compatibility: FrSky 2.4GHz ACCESS / ACCST D16 capable transmitters
Features
● Enhanced Anti RF-Interference capability with more solid RF performance
● Smart-matched ACCESS & ACCST D16 modes
● Supports basic Black-Box function
● 10 configurable channel ports (PWM, SBUS, FBUS, or S.Port)
● Supports signal redundancy (SBUS In)
● Full control range with telemetry (S.Port or FBUS)
● Anti-interference capability in the spark-ignition process
● Over-The-Air (OTA) FW update
● External battery/device voltage detection
Registration & Automatic Binding
Follow the step below to finish the registration & binding procedure:
1. For TANDEM X20 as an example, enter into the Model, select RF System, turn on the internal module, select
status [ON] and ACCESS, Then determine the antennas (internal or external) and choose the RF power
according to the actual usage, the ACCESS receiver can be registered to the radio at the moment. (Notice: the
"Registration" process is not required while binding the receiver in ACCST D16 mode.)
2. Connect the battery to the receiver while holding the button on the receiver. The RED LED and GREEN LED
on the receiver will be on, indicating into the [Reg] status.
3. When it shows the Register ID, RX name and UID, click [Register]. The RED LED and GREEN LED on the
receiver will flash, and the transmitter displays [Registration OK ].
4. Power off the receiver.
5. Move the cursor to select any one of the 3 receivers and press [Bind].
6. Connect the battery to the receiver.
7. Select the RX, the GREEN will keep lit, then the transmitter displays [Bind successful].
Note: Once the receiver is registered, the button is not needed anymore in the binding process (ACCESS mode).
How to switch the S.Port/SBUS OUT/SBUS IN/FBUS
Enter into the [Set] of receiver.
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FrSky ARCHER PLUS R10+ Receiver
Select the FBUS/S.Port/SBUS Out/SBUS In for the
channel ports.
www.frsky-rc.com Contact us : frsky@frsky-rc.com
Version
1.0
