FrSky Tandem TD R10 Instruction Manual

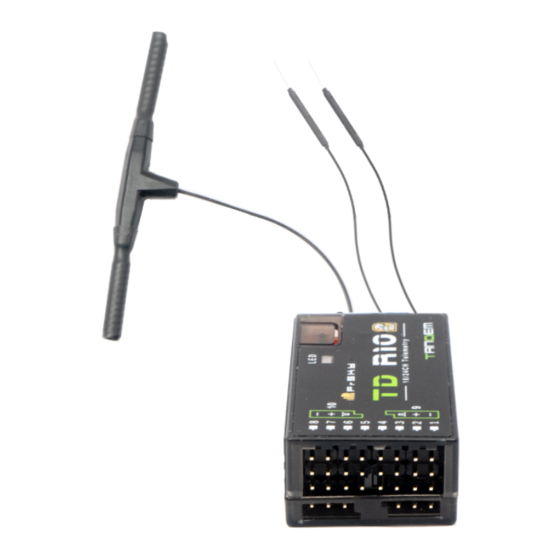

Instruction Manual for FrSky TD R10 Receiver
Introduction
The Tandem dual-band receivers are unlike any other FrSky 2.4Ghz or 900Mhz receivers, they work simultaneously
at both 900Mhz and 2.4Ghz frequencies. That means Tandem receivers provide not only the low latency signal and
long-range control, also benefits from the enhanced level of high reliability and anti-interference performance.
The Tandem series receivers adopt the triple antenna design that provides multi-directional wide coverage for the
remote signal. The data (Power & Signal related) under unusual status during the flight can be recorded by Tandem
receivers through a built-in black box module.
The configurable 10 channel ports are a big feature of TD R10, each channel port can be assigned as PWM, SBUS,
FBUS, or S.Port. With the FBUS protocol, the Tandem series receivers can open up the possibility of seamlessly
pairing with multiple telemetry devices (Neuron ESC, Advance Sensors, etc.) as well as simplifying the builds setup.

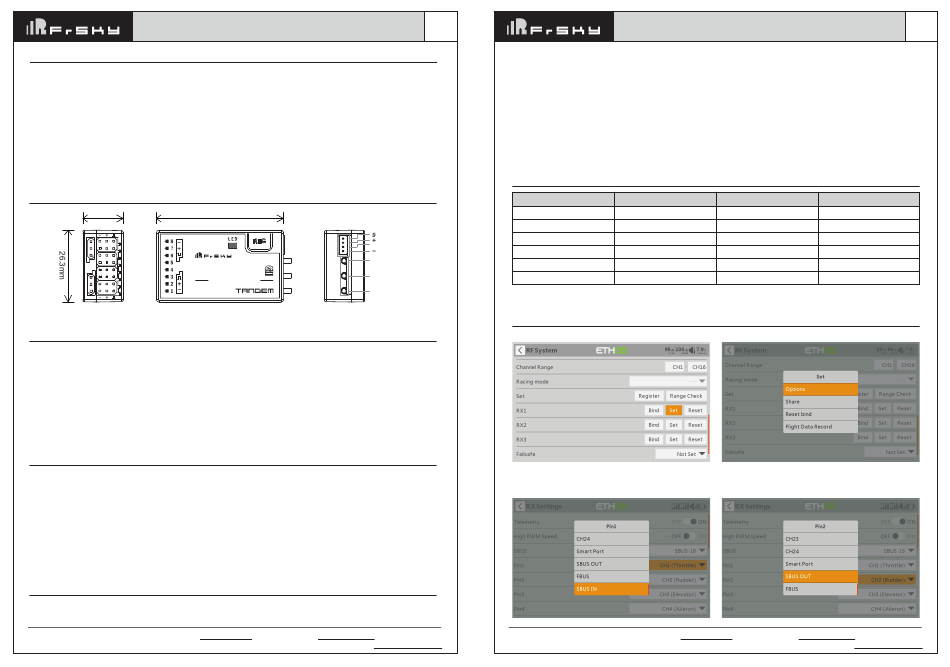

Overview
14.7mm 46.5mm
10
T D R 1 0
9
Specifications
● Frequency: 2.4GHz & 900MHz
● Dimension: 46.5*26.3*14.7mm (L*W*H)
● Weight: 16.6g
● Operating Voltage: 3.5-10v DC
● Operating Current: ≤180mA@5V
● Compatibility: Tandem series transmitter & TD protocol capable RF module
● Triple 2.4G/900M Antenna
- 2* External 2.4G antenna (IPEX1)
- 1* External 900M antenna (IPEX1)
Features
● Simultaneous working dual-band TD mode
● Triple antenna design for multi-directional coverage
● Black Box function
● Built-in voltage sensor
● Race Mode with Telemetry
● Long control range (up to 50KM - 100KM)
● Over-The-Air (OTA) FW update
● 10 Configurable Channel Ports
- CP1: PWM / SBUS OUT / FBUS / S.Port / SBUS IN
- CP2-10: PWM / SBUS OUT / FBUS / S.Port
Registration & Automatic binding
Follow the steps below to finish the Registration & binding procedure:
1. For TANDEM X20 as an example, enter into the Model, select RF System, turn on the internal module, select
FrSky Electronic Co., Ltd. www.frsky-rc.com
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
(Upgrade)
AIN2
900M Antenna
FBUS 2.4G Antenna
1 0 / 2 4 C H T e l e m e t r y
2.4G Antenna
Contact us : frsky@frsky-rc.com
Version
1.0
status [ON] and TD MODE(Type). You can select the Internal / External antenna and the power as you need, then
select [Register].
2. Connect the battery to the receiver while holding the button on the receiver. The RED LED and GREEN LED on
the receiver will be on, indicating the [Reg] status.
3. When it shows the Register ID, RX name, and UID, click [Register]. The RED LED and GREEN LED on the
receiver will flash, and the transmitter displays [Registration OK ].
4. Turn off the receiver.
5. Move the cursor to select any one of the 3 receivers [Bind].
6. Connect the battery to the receiver.
7. Select the RX, the GREEN will keep lit, and the BLUE will flash. Then the transmitter displays [Bind successful].
LED state
Green LED
On
Flash
On
On
On
Off
How to configure channel ports
1. For TANDEM X20 as an example, please select RF System, click [RX1 TD10R]-[Set]-[Options].
TD10R
2. You will enter into RX Settings,then function definition of every single pin (pin1-pin10) could be set.
- pin1: Smart Port/ SBUS OUT/ FBUS / SBUS IN/ PWM
- pin2-10: Smart Port/ SBUS OUT/ FBUS/ PWM
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FrSky TD R10 Receiver
Blue LED Red LED
Off On
Off Flash
Off
On
Flash Off
Off
Flash
Off On
TD10R
www.frsky-rc.com Contact us : frsky@frsky-rc.com
Version
1.0
Status
Register
Register successfully
Bind
Bind successfully
Working normally
Failsafe
