FrSky TD R6 Instruction Manual

Instruction Manual for FrSky TD R6 Receiver

Introduction

The Tandem dual-band receivers are unlike any other FrSky 2.4Ghz or 900Mhz receivers, they work simultaneously
at both 2.4Ghz and 900Mhz frequencies. That means Tandem receivers provide not only the low latency signal and
long-range control, but also benefit from the enhanced level of high reliability and anti-interference performance.
The Tandem series receivers adopt a dual-band antenna design (one 2.4GHz & one 900MHz) that provides
multi-directional wide coverage for the remote signal. The data (Power & Signal related) under unusual status during
the flight can be recorded by Tandem receivers through a built-in black box module.

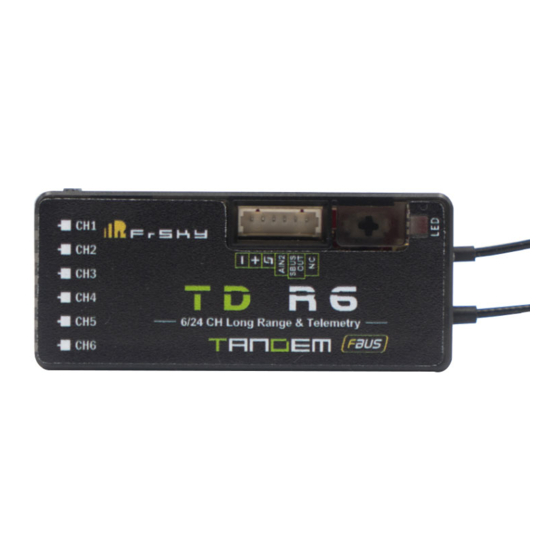

The TD R6 receiver has 6 high-precision PWM channel outputs bundled in a compact lightweight design,and it also
has ports like SBUS OUT and S.Port on board. By setting the S.Port to the FBUS protocol, the Tandem series
receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (Neuron ESC, Advance
Sensors, etc.) as well as simplifying the build setup.

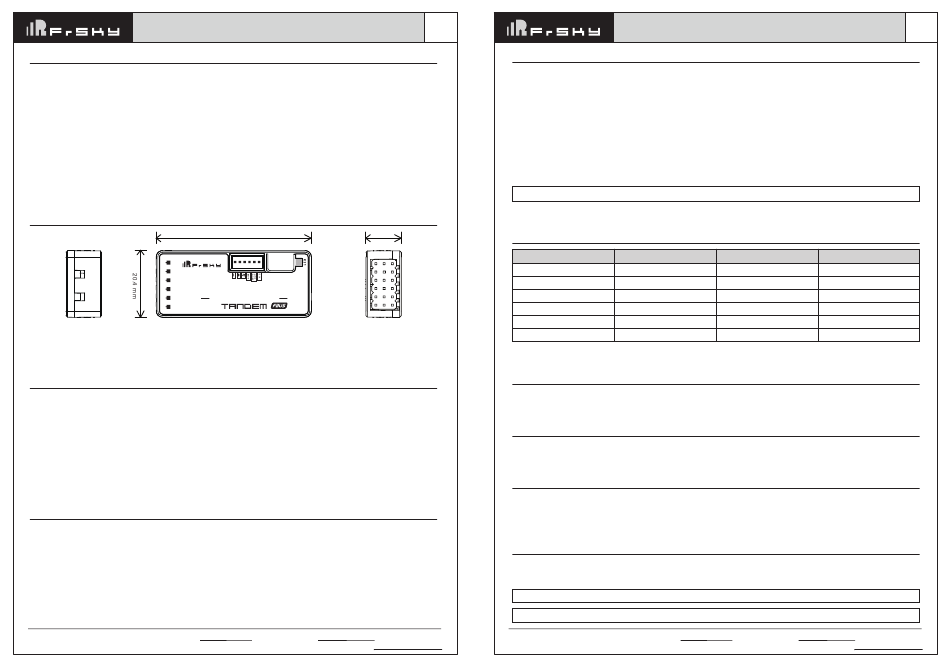

Overview

CH1
CH2
CH3
CH4
CH5
CH6

Specifications

● Frequency: 2.4GHz & 900MHz
● Dimension: 47.5*20.4*10.9mm (L*W*H)
● Weight: 11.5g
● Operating Voltage: 3.5-10V (recommend 3.7-8.4V)
● Operating Current: ≤110mA@5V
● Compatibility: Tandem series transmitter & TD protocol capable RF module
● 2.4G/900M antenna connector: IPEX1

Features

● Simultaneous working 2.4G&900M dual-band TD mode
● Dual-band antenna design for multi-directional coverage
● Compact lightweight design
● Black Box function
● 4ms race mode with telemetry
● Long control range (up to 50KM – 100KM)
● Over-The-Air (OTA) FW update
● 6 PWM channel ports
● FBUS / S.Port
● SBUS Out (Supports 16CH / 24CH mode)
FrSky Electronic Co., Ltd. www.frsky-rc.com
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
47.5 mm 10.9 mm
BUTTON
T D R 6
6/24 CH Long Range & Telemetry
Contact us : frsky@frsky-rc.com
Version
1.0
Registration & Automatic binding
Follow the step below to finish the Registration & binding procedure:
1. For TANDEM X20 as an example,enter into the Model, select RF System, turn on the internal module, select
status [ON] and TD MODE(Type). You can select Internal / External antenna and the power as you need, then
select [Register].
2. Connect the battery to the receiver while holding the button on the receiver. The RED LED and GREEN LED on
the receiver will be on, indicating into the [Reg] status.
3. When it shows the Register ID, RX name and UID,click [Register]. The RED LED and GREEN LED on the
receiver will flash, and the transmitter displays [Registration OK ].
4. Turn off the receiver.
5. Move the cursor to select any one of the 3 receivers [Bind].
6. Connect the battery to the receiver.
7. Select the RX, the GREEN will keep lit and the BLUE will flash. Then the transmitter displays [Bind successful].
Note: Once the receiver is registered, the button is not needed anymore in the binding process.

LED state

Green LED
On
Flash
On
On
On
Off

How to switch the S.Port/F.Port/FBUS (F.Port2)

Enter into the Set-Options, click the Telem.Port, and select S.Port/F.Port/FBUS (F.Port2).

How to switch SBUS channel mode

Enter into RX Settings, click [SBUS], then select SBUS-16 mode or SBUS-24 mode.

How to enter into the Race mode (down to 4ms)

Enter into Model-RF system, select the Channel Range as CH1-CH8. Click [Switch Positions] and select a switch to
start the race mode.

About OTA function

For TANDEM X20 as an example, go to the [File manager], and select the FW, press the enter button, select
[Flash RX by int.OTA].Power on the receiver, select the RX, go to the [ENTER], complete the flash process, the
transmitter will display [Success]. Wait for 3 seconds,the receiver works properly at the moment.
Note: Please do not do the binding operation in the near range while the firmware upgrading in progress.
Note: Update the firmware after the receiver getting registered (OTA).
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FrSky TD R6 Receiver
Blue LED Red LED
Off On
Off Flash
Off
On
Flash Off
Off
Flash
On
Off
www.frsky-rc.com Contact us : frsky@frsky-rc.com
Version
1.0
Status
Register
Register successfully
Bind
Bind successfully
Working normally
Failsafe
