FrSky ARCHER PLUS R6FB Instruction Manual

Introduction

The Archer line of receivers has been enhanced further with the addition of the new Archer Plus Series.
The Archer Plus Series receivers include some new features. Firstly an enhanced anti-RF-Interference capability
can offer a more solid RF performance, and this is in addition to the receivers with anti-interfere performance in
the spark ignition process. These Plus series receivers are also with both ACCESS and ACCST D16 modes,
where the RF protocol is smart matched during the binding process on the radio. With the Black-Box function,
some basic flight data (like Power & Signal related) can be well preserved.

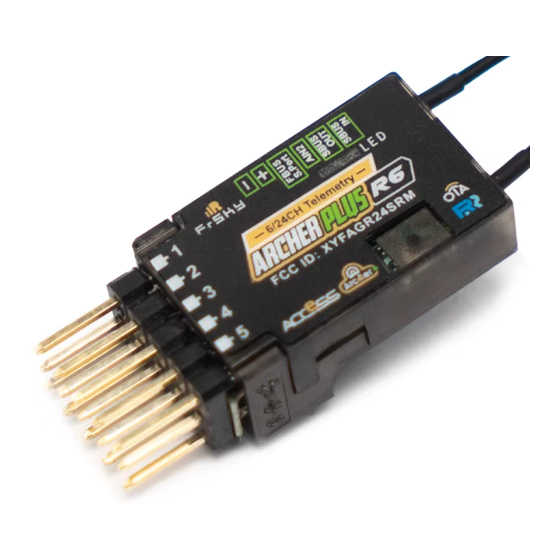

The Archer Plus R6FB/GR6FB 7 FBUS channel receivers is ideal for any types of glider pilot, it supports
full-range signal strength with dual detachable antennas and guarantees optimal antenna reception and range.
The R6FB /GR6FB can be used as a Primary receiver in a redundant solution by wiring the SBUS In port and
connecting to any other FrSky receiver equipped with an SBUS Out port. With the FBUS protocol, the Archer Plus
series receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (XACT servos,
ADV Sensors, etc.) as well as simplifying the builds setup.
The Archer Plus GR6FB are receivers with an upgraded high-precision variometer that gives pilots more accurate
and quicker altitude and vertical speed data, and also features its more accurate and quicker vario audio
feedback from your FrSky enabled transmitter.
(*Some features require the support of ACCESS and ETHOS.)
Overview

Specifications

● Dimension: 33*15*9.7mm (L*W*H)
● Weight: 4.2g (ARCHER PLUS R6FB) / 4.3g (ARCHER PLUS GR6FB)
● Number of Channels: 7 FBUS channels
● SBUS Out (Supports 16CH / 24CH mode)
● Operating Voltage Range: 3.5 -10V
● Operating Current: 65mA@5V
● Operating Range: ＞2km (Full range) (*Range may vary based on local conditions.)
● Variometer Measurement Range (ARCHER PLUS GR6FB)
Altimeter Range & Resolution: -700m to 10000m & 0.1m
Vertical Speed Range: ±10m/s
● Voltage Measurement Range via AIN2 (External device): 0-35V (Battery Voltage Divider Ratio: 1:10)
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FrSky ARCHER PLUS R6FB/GR6FB Receiver
33mm
1
2
6/24CH Telemetry
3
R6
4
FCC ID: XYFAGR24SRM
5
BUTTON
www.frsky-rc.com
1
2
6/24CH Telemetry & Variometer
3
GR6
4
FCC ID: XYFAGR24SRM
5
9.7mm
Contact us : frsky@frsky-rc.com
Version
1.0
BUTTON
