Summary of Contents for Schifler SWC 65 WT

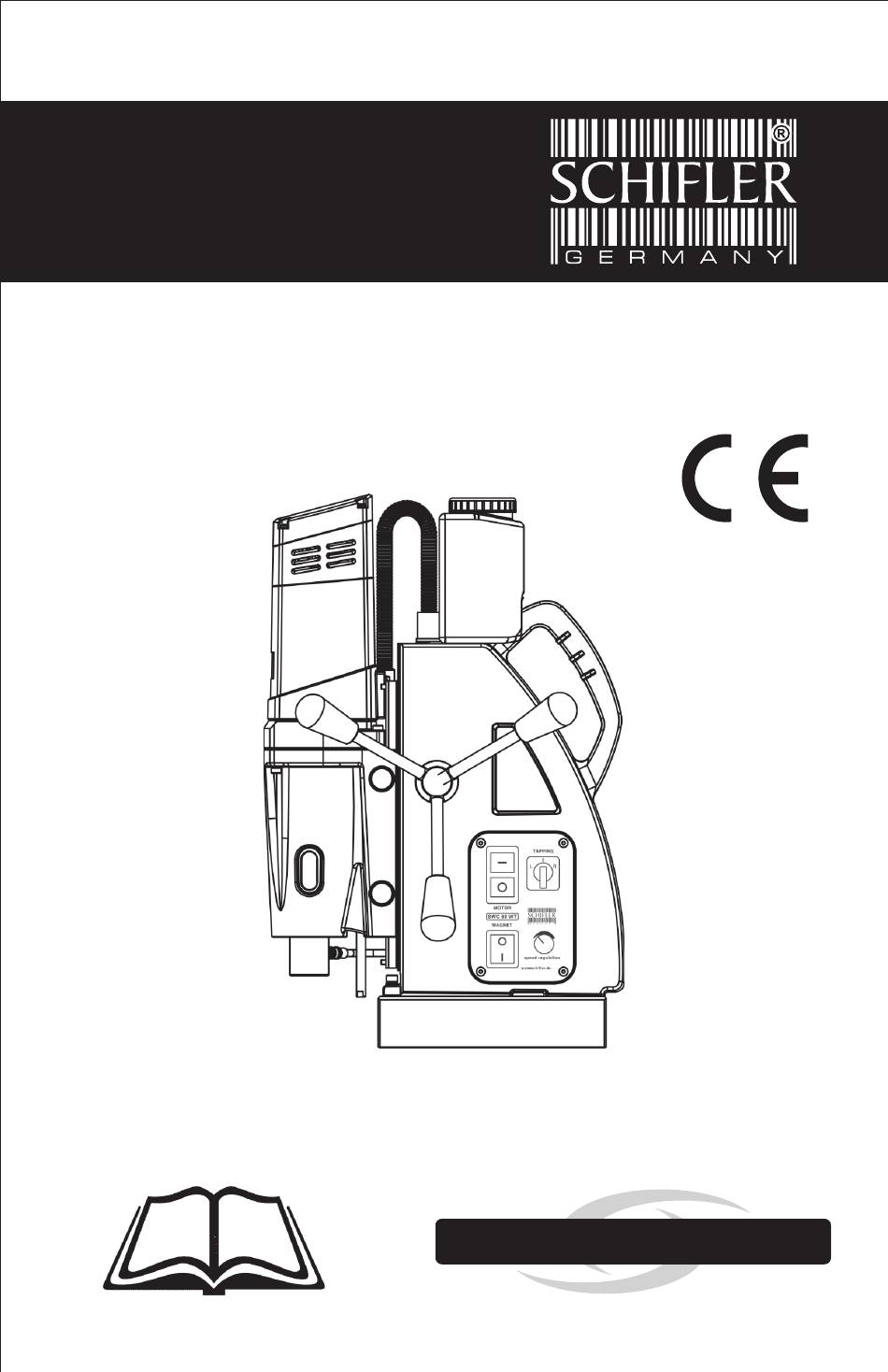

- Page 1 Magnetic Drilling Machine SWC 65 WT OPERATING MANUAL...
-
Page 2: Table Of Contents
5.6 Reaming/Counter-Sinking 6. Exploaded View 7. Helpful Tips 8. Troubleshooting This manual is for information only & not a legal document, the company has all SWC 65 WT rights to change, cancel, amend any designs, specifications etc. without any prior notice. - Page 3 Use ear Use safety Use eye Please read protection helmet protection the manual Pacemaker Wear appropriate Disconnect before Use safety warning clothing opening chain Dangerous Warning for Don’t use in environment electrical shock wet places SWC 65 WT...
- Page 4 WHEN ARC WELDING IS IN PROGRESS. D.C. CURRENT WILL EARTH BACK THROUGH THE MAGNET AND CAUSE IRREPARABLE DAMAGE. DO NOT USE MACHINE OUTSIDE OR IN WET ENVIRONMENT WITHOUT AN (RCD) RESIDUAL CIRCUIT DEVICE. RCD MUST BE USED. SWC 65 WT...
- Page 5 6. Nobody should be in the area where the Drill machine is being used by the Operator. MANDATORY RULES TO ENSURE SAFETY 1. Before you start using the Drill machine, make sure you inspect the condition of the power cord and the plug. Replace them immediately if you see any damage. SWC 65 WT...
- Page 6 Switch off the motor when it is not in use. 9. Add a certain amount of coolant to the equipment whenever you SWC 65 WT...
- Page 7 17. The generation of the magnetic field affects devices such as watches, mobile phones and pacemaker installed to regulate the heartbeat. Make sure that the operator takes of the watch and keeps the mobile phone before operating the drilling machine and doesn't have a pacemaker installed in him. SWC 65 WT...
- Page 8 EC Directive 2002/96/EC-WEEE, also known as Waste Electrical and Electronic Equipment. In case of doubts or queries, contact the Department of Waste Disposal. 2. Disposal of grease: Follow the instructions given by the lubricant's manufacturer. SWC 65 WT...
-
Page 9: Accessories
Magnetic Drilling Machine Operating Manual OPTIONAL TOOLS & ACCESSORIES Weldon Drill Chuck Adaptor Weldon Tapping Adaptor Drill Chuck Weldon Counter Sink MT 2 / MT 3 Arbour Core Drill Pilot Pin Taper Drift SWC 65 WT... -
Page 10: Description & Technical Data
Magnetic Drilling Machine SWC 65 WT Operating Manual DESCRIPTION & TECHNICAL DATA Motor power 1600 watt Spindle MT3, 19 mm Weldon Broach cutter ( 35 mm length) ø 12 mm - ø 65 mm Broach cutter (50 mm length) ø 12 mm - ø 65 mm Broach cutter (80 mm length) ø... -
Page 11: Operating Manual
After 2 mm, the groove of the cut will help the cutter maintain its place and you can increase the power. Still it is not necessary to use a lot of pressure. Too much pressure will cause damage and breakage. SWC 65 WT... -
Page 12: Drilling With Twist Drills
The drill has to find its way in to the material by itself. It is not necessary to use a lot of pressure. Too much pressure will cause damage and breakage. After the cutting is finished switch the machine off by pushing the red button. SWC 65 WT... -
Page 13: Speed Selection
TAPPING IS ONLY RECOMMENDED FOR THROUGH HOLES. Various tapping adaptors are used for thread cutting with your magnetic drilling machine SWC 65 WT These adapters will allow you to attach tap on the hole cutter arbor. Attach desired tap to the adaptor. -
Page 14: Reaming/Counter-Sinking
1. You can make use of the machine for the process of Reaming or Counter- sinking too, considering the machine's wide range of speed availability to operate. 2. In this process, always observe the limitations stated in the technical data for the tools to be made use of. SWC 65 WT... -
Page 15: Exploaded View
Magnetic Drilling Machine Exploded View SWC 65 WT Motor complete / Antriebseinheit SWC 65 WT... - Page 16 ø17 0709311707744 Main Shaft Gear Z45m1h15 0709311707751 Ball Bearing 6003 2RS 0709311707768 Inner Frame Rotary Lip Seal ø20xø32x6 0709311707775 Ball Bearing 6006 ZZ 0709311707782 Circlip ø55 0709311707799 B5x5x12 0709311707805 Spindle Drive Shaft ø34x145 MT3 SWC 65 WT...
- Page 17 Magnetic Drilling Machine Exploded View SWC 65 WT Magnetic frame / Magnetbohrständer SWC 65 WT Circuit Diagram / Schaltplan MOTOR SWITCH Field Coil Magnet ON / OFF SWC 65 WT SWITCH...
- Page 18 Magnetic Drilling Machine Magnetic Drilling Machine Exploded View Exploded View SWC 65 WT Magnetic frame / Magnetbohrständer Part no. Article Article Description 0709311695027 Main Body SWC 65 WT 0709311695034 PCB Box 66x52x30.5 0709311695041 screws M3x12 0709311695058 220V 0709311710126 Capacitor 0709311710133...
-
Page 19: Helpful Tips
TIP: Most situations which cause problems or question marks have already occurred for other users. Contact Schifler or your dealer to see if a solution exists for your situation. (example: for drilling into non-magnetic material with your magnetic drill, a special vacuum system has been designed). -
Page 20: Troubleshooting
The connecting nipple has gotten clogged. Do a deep cleaning of the tank and the nipple. The lubricant tap is jammed or has gotten closed. Open the tap. Contact the Customer Service immediately if the steps and remedies described above do not solve your problem. SWC 65 WT... - Page 21 Models : SWC 32, SWC 35, SWC 35AT, SWC 35 PD, SWC 40, SWC 50 MAX, SWC 50 MAX-T, SWC 50 PD, SWC 50, SWC 50 WT, SWC 50 PDT, SWC 50 WT SB, SWC 65, SWC 65 WT, SWC 65 WT SB, SWC 80, SWC 80 WT, SWC 100, SWC 100 WT, SWC 120, SWC 120 WT...
- Page 22 Fax.: +49 (0) 511 93639 300 Email: info@schifler.de Middle East Asia Pacific Schifler Werkzeuge & Co. Schifler Werkzeuge Middle East FZC B-24, 1st Floor, Street No.9, Anand Parbat UAQ Free Trade Zone, P.O. Box : 7073, Industrial Area, Delhi-110005, INDIA Umm Al Quwain, U.A.E.
