Summary of Contents for Schifler SWC 40

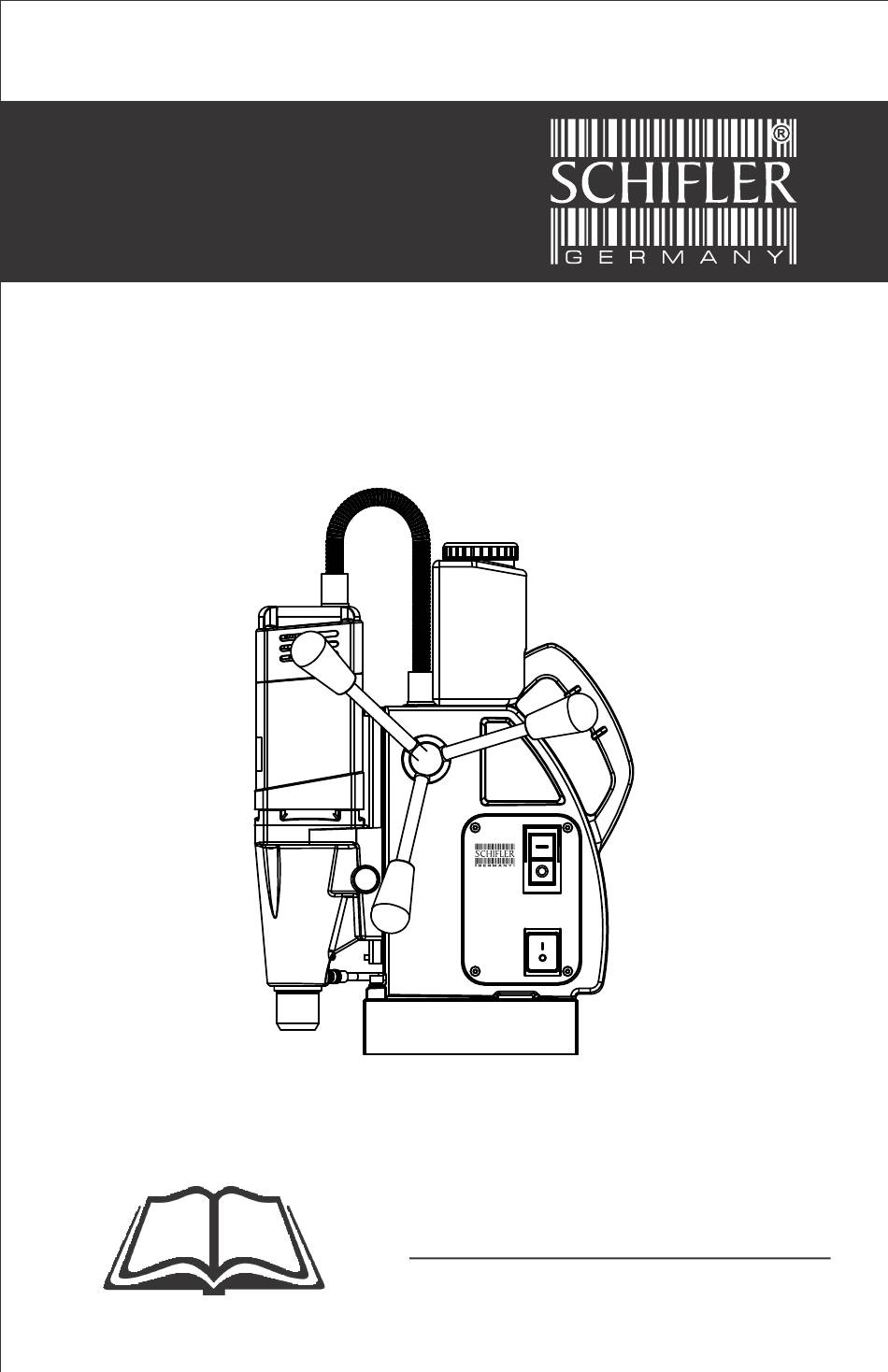

- Page 1 Magnetic Drilling Machine SWC 40 SWC 40 OPERATING MANUAL...
-
Page 2: Table Of Contents
6. Exploaded View 7. Helpful Tips 8. Troubleshooting 9. Warranty This manual is for information only & not a legal document, the company has all SWC 40 rights to change, cancel, amend any designs, specifications etc. without any prior notice. -
Page 3: Description & Technical Data
Magnetic Drilling Machine Operating Manual DESCRIPTION & TECHNICAL DATA SWC 40 SWC 40 Motor power 1100 watt Spindle 19 mm (3/4”) Weldon Broach cutter (35 mm length) ø 12 mm - ø 35 mm Broach cutter(50 mm length) ø 12 mm - ø 35 mm Twist drill Upto ø... -
Page 4: Components Content
6. 6,0 mm Allen Wrench 1 No. 7. Instruction Manual 1 No. 8. Magnetic Drill Machine 1 No. 9. Pilot Pin 6x50 1 No. 10. Pilot Pin 8x50 1 No. 11. Drill Chuck Adaptor 1 No. 12. Drill Chuck 1 No. SWC 40... - Page 5 Use ear Use safety Use eye Please read protection helmet protection the manual Use safety Wear appropriate Disconnect before Use safety gloves clothing opening chain Dangerous Warning for Don’t use in Pacemaker environment electrical shock wet places warning SWC 40...
- Page 6 WARNING : DO NOT USE YOUR MAGNETIC DRILL ON THE SAME STRUCTURE WHEN ARC WELDING IS IN PROGRESS. D.C. CURRENT WILL EARTH BACK THROUGH THE MAGNET AND CAUSE IRREPARABLE DAMAGE. SWC 40...
- Page 7 5. Children should never be allowed near the drill machine, especially when it is being operated. 6. Nobody should be in the area where the drill machine is being used by the Operator. SWC 40...
- Page 8 Turn off the switch and unplug immediately once you stop using the magnetic base. 8. Do not use drilling machine for not more than a total duration of 30 SWC 40...
- Page 9 17. The generation of the magnetic field affects devices such as watches, mobile phones and pacemaker installed to regulate the heartbeat. Make sure that the operator takes off the watch and keeps off the mobile phone before operating the drilling machine and doesn't have a pacemaker installed in him. SWC 40...
- Page 10 EC Directive 2002/96/EC-WEEE, also known as Waste Electrical and Electronic Equipment. In case of doubts or queries, contact the Department of Waste Disposal. 2. Disposal of grease: Follow the instructions given by the lubricant's manufacturer. SWC 40...
-
Page 11: Accessories
Magnetic Drilling Machine Operating Manual OPTIONAL TOOLS & ACCESSORIES Weldon Drill Chuck Adaptor Weldon Tapping Adaptor Drill Chuck Weldon Counter Sink MT 3 Arbour Core Drill Pilot Pin Taper Drift SWC 40... -
Page 12: Operating Manual
Ensure that the magnetic drilling unit is secure on the working piece. Fill the arbor with lubrication/cutting oil in the special meant holes. Always use cutting oil from your dealer. Start the motor by pressing the green motor start button (I). SWC 40... -
Page 13: Drilling With Twist Drills
These adapters will allow you to attach a drill chuck on to the hole cutter arbor. Also twist drills with a direct Weldon connection are available (ranging from Ø 6 – Ø 12 mm) Place the machine at the desired position Switch on the magnet SWC 40... - Page 14 The drill has to find its way in to the material by itself. It is not necessary to use a lot of pressure. Too much pressure will cause damage and breakage. After the cutting is finished switch the machine off by pushing the red button. SWC 40...
-
Page 15: Exploaded View
Magnetic Drilling Machine Exploded View SWC 40 Motor complete / Antriebseinheit SWC 40... - Page 16 Magnetic Drilling Machine Exploded View SWC 40 Motor complete / Antriebseinheit Part no. Article No. Article Description 0709311707812 Screw ST4.8x60 0709311707829 Motor cap SWC 40 0709311707836 Screw M4x12 0709311707843 Washer 0709311707850 Carbon brush 18x6.2x9.9 220V 0709311707867 Carbon brush holder 18x6.2x9.9...
- Page 17 Magnetic Drilling Machine Exploded View SWC 40 Magnetic frame / Magnetbohrständer SWC 40 Circuit Diagram / Schaltplan MAGNET Field Coil MOTOR ON/OFF SWITCH MAGNET SWITCH SWC 40...
- Page 18 Magnetic Drilling Machine Exploded View SWC 40 Magnetic frame / Magnetbohrständer Part No. Article Article Description 0709311708253 Fuselage (blue) 0709311708260 PCB Box 66x52x30.5 0709311708277 Cross screw M3x12 0709311708284 220V 0709311708291 PCB Box Cap 66x52x24 0709311708307 Screws M4x10 0709311708314 Washer 0709311710102...
- Page 19 TIP: Most situations which cause problems or question marks have already occurred for other users. Contact Schifler or your dealer to see if a solution exists for your situation. (example: for drilling into non-magnetic material with your magnetic drill, a special vacuum system has been designed).
-
Page 20: Troubleshooting
The connecting nipple has gotten clogged. Do a deep cleaning of the tank and the nipple. The lubricant tap is jammed or has gotten closed. Open the tap. Contact the Customer Service immediately if the steps and remedies described above do not solve your problem. SWC 40... -
Page 21: Warranty
Magnetic Drilling Machine Operating Manual WARRANTY The warranty period for Schifler Magnetic Drills equipment is 6 months as of the date of purchase. Damages due to wear and tear, overload or improper handling of the machine are excluded from warranty. Damages that are due to fault in material or defect in fabrication will be remedied free of cost by compensation delivery or repair. - Page 22 Magnetic Drilling Machine Operating Manual NOTES SWC 40 SWC 40...
- Page 23 Magnetic Drilling Machine Operating Manual NOTES SWC 40...
- Page 24 Fax.: +49 (0) 511 93639 300 Email: info@schifler.de Middle East Asia Pacific Schifler Werkzeuge & Co. Schifler Werkzeuge Middle East FZC B-24, 1st Floor, Street No.9, Anand Parbat UAQ Free Trade Zone, P.O. Box : 7073, Industrial Area, Delhi-110005, INDIA Umm Al Quwain, U.A.E.
