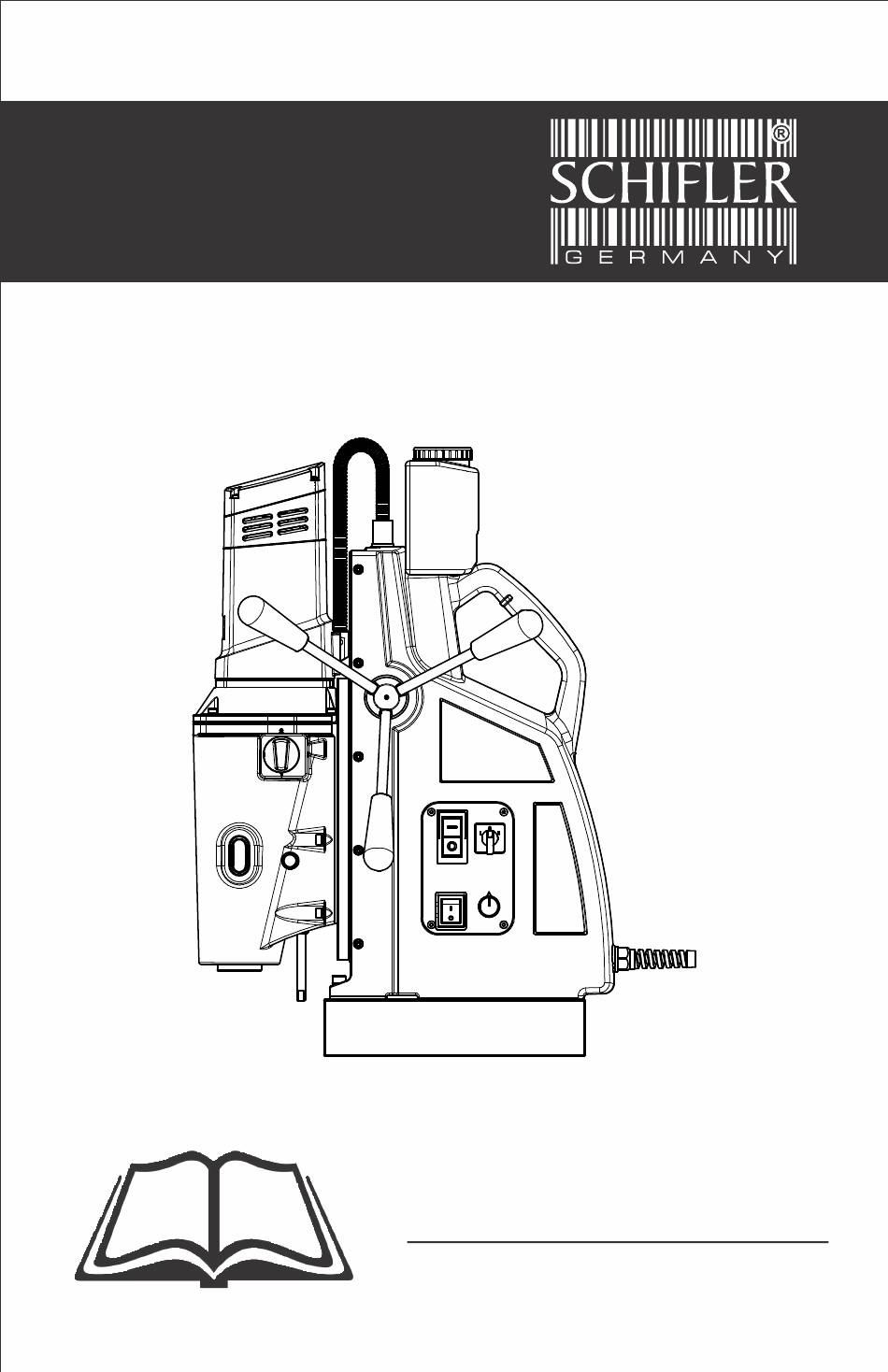

  • Page 1 Magnetic Drilling Machine SWC 120 WT SWC 120 WT OPERATING MANUAL...

  • Page 2: Table Of Contents

    6. Exploaded View 7. Helpful Tips 8. Troubleshooting 9. Warranty This manual is for information only & not a legal document, the company has all SWC 120 WT rights to change, cancel, amend any designs, specifications etc. without any prior notice.

  • Page 3: Description & Technical Data

    Magnetic Drilling Machine Operating Manual DESCRIPTION & TECHNICAL DATA SWC 120 WT SWC 120 WT Motor power 2500 watt Spindle MK-4 Broach cutter ( 35 mm length) ø 12 mm - ø 120 mm Broach cutter (50 mm length) ø 12 mm - ø 120 mm Broach cutter (80/100 mm length) ø...

  • Page 4: Components Content

    1 No. 8. Magnetic Drill Machine 1 No. 9. MT 4x32 Arbor 1 No. 10. 32 To 19.05 Adaptor 1 No. 11. Pilot Pin 6x50 1 No. 12. Pilot Pin 8x50 1 No. 13. Taper Drift 1 No. SWC 120 WT...
  • Page 5 Use ear Use safety Use eye Please read protection helmet protection the manual Use safety Wear appropriate Disconnect before Use safety gloves clothing opening chain Dangerous Warning for Don’t use in Pacemaker environment electrical shock wet places warning SWC 120 WT...
  • Page 6 WARNING : DO NOT USE YOUR MAGNETIC DRILL ON THE SAME STRUCTURE WHEN ARC WELDING IS IN PROGRESS. D.C. CURRENT WILL EARTH BACK THROUGH THE MAGNET AND CAUSE IRREPARABLE DAMAGE. SWC 120 WT...
  • Page 7 6. Nobody should be in the area where the Drill machine is being used by the Operator. MANDATORY RULES TO ENSURE SAFETY 1. Before you start using the Drill machine, make sure you inspect the condition SWC 120 WT...
  • Page 8 8. Do not overload the motor for than a total duration of 30 minutes. If done otherwise, it will lead to extreme heat getting generated that will result in a fire or explosion. Switch off the motor when it is not in use. SWC 120 WT...
  • Page 9 17. The generation of the magnetic field affects devices such as watches, mobile phones and pacemaker installed to regulate the heartbeat. Make sure that the operator takes of the watch and keeps the mobile phone before operating the drilling machine and doesn't have a pacemaker installed in him. SWC 120 WT...
  • Page 10 EC Directive 2002/96/EC-WEEE, also known as Waste Electrical and Electronic Equipment. In case of doubts or queries, contact the Department of Waste Disposal. 2. Disposal of grease: Follow the instructions given by the lubricant's manufacturer. SWC 120 WT...

  • Page 11: Accessories

    Magnetic Drilling Machine Operating Manual OPTIONAL TOOLS & ACCESSORIES Weldon Drill Chuck Adaptor Weldon Tapping Adaptor Drill Chuck Weldon Counter Sink MT 3 Arbour Core Drill Pilot Pin Taper Drift SWC 120 WT...

  • Page 12: Operating Manual

    Ensure that the magnetic drilling unit is secure on the working piece. Fill the arbor with lubrication/cutting oil in the special meant holes. Always use cutting oil from your dealer. Start the motor by pressing the green motor start button (I). SWC 120 WT...

  • Page 13: Drilling With Twist Drills

    These adapters will allow you to attach a drill chuck on to the hole cutter arbor. Also twist drills with a direct Weldon connection are available (ranging from Ø 6 – Ø 12 mm) Place the machine at the desired position Switch on the magnet SWC 120 WT...
  • Page 14 Gear 300 min 175 min max. Ф 25mm 35mm (300 min ) 1" 1-3/8" 45mm 50mm (175 min ) 1-3/4" 2" 60mm 80mm 2-3/8" 3-1/8" (125 min ) 125 min 80 min 100mm (80 min ) 4" SWC 120 WT...

  • Page 15: Thread Cutting

    TAPPING IS ONLY RECOMMENDED FOR THROUGH HOLES. Various tapping adaptors are used for thread cutting with your magnetic drilling machine SWC 120 WT These adapters will allow you to attach tap on the hole cutter arbor. Attach desired tap to the adaptor.

  • Page 16: Counter Sinking

    1. You can make use of the machine for the process of Reaming or Counter- sinking too, considering the machine's wide range of speed availability to operate. 2. In this process, always observe the limitations stated in the technical data for the tools to be made use of. SWC 120 WT...

  • Page 17: Exploaded View

    Magnetic Drilling Machine Exploded View SWC 120 WT Motor complete / Antriebseinheit SWC 120 WT...
  • Page 18 Magnetic Drilling Machine Exploded View SWC 120 WT Magnetic frame / Magnetbohrständer Part no. Article Article Description 0709311709335 Self Tapping Screw ST4.2×60 0709311709342 Motor Cover 100×100×54 0709311709359 Motor Air Inlet Cover 101×101×61 0709311709366 Screws ST2.9×10 0709311709373 Washer 0709311709380 Pcb – Olp 70×70 220V...
  • Page 19 Magnetic Drilling Machine Exploded View SWC 120 WT Magnetic frame / Magnetbohrständer SWC 120 WT Circuit Diagram / Schaltplan SWC 120 WT...
  • Page 20 Magnetic Drilling Machine Exploded View SWC 120 WT Magnetic frame / Magnetbohrständer Part no. Article Article Description 0709311708765 Main Body 100-450×283×116 0709311708772 Hex Screw M5×16 0709311708789 Hex Nuts 0709311708796 Pcb Box 66×52×30.5 0709311708802 60×48 220V 2500W 0709311708819 Magnet 116×260×54 220V...
  • Page 21 TIP: Most situations which cause problems or question marks have already occurred for other users. Contact Schifler or your dealer to see if a solution exists for your situation. (example: for drilling into non-magnetic material with your magnetic drill, a special vacuum system has been designed).

  • Page 22: Troubleshooting

    The connecting nipple has gotten clogged. Do a deep cleaning of the tank and the nipple. e. The lubricant tap is jammed or has gotten closed. Open the tap. Contact the Customer Service immediately if the steps and remedies described above do not solve your problem. SWC 120 WT...

  • Page 23: Warranty

    Magnetic Drilling Machine Operating Manual WARRANTY The warranty period for Schifler Magnetic Drills equipment is 6 months as of the date of purchase. Damages due to wear and tear, overload or improper handling of the machine are excluded from warranty. Damages that are due to fault in material or defect in fabrication will be remedied free of cost by compensation delivery or repair.
  • Page 24 Fax.: +49 (0) 511 93639 300 Email: info@schifler.de Middle East Asia Pacific Schifler Werkzeuge & Co. Schifler Werkzeuge Middle East FZC B-24, 1st Floor, Street No.9, Anand Parbat UAQ Free Trade Zone, P.O. Box : 7073, Industrial Area, Delhi-110005, INDIA Umm Al Quwain, U.A.E.
