Schifler SWC 50 WT Operating Manual

Magnetic drilling machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Magnetic Drilling Machine
SWC 50 WT
OPERATING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWC 50 WT and is the answer not in the manual?

Questions and answers

Related Manuals for Schifler SWC 50 WT

Summary of Contents for Schifler SWC 50 WT

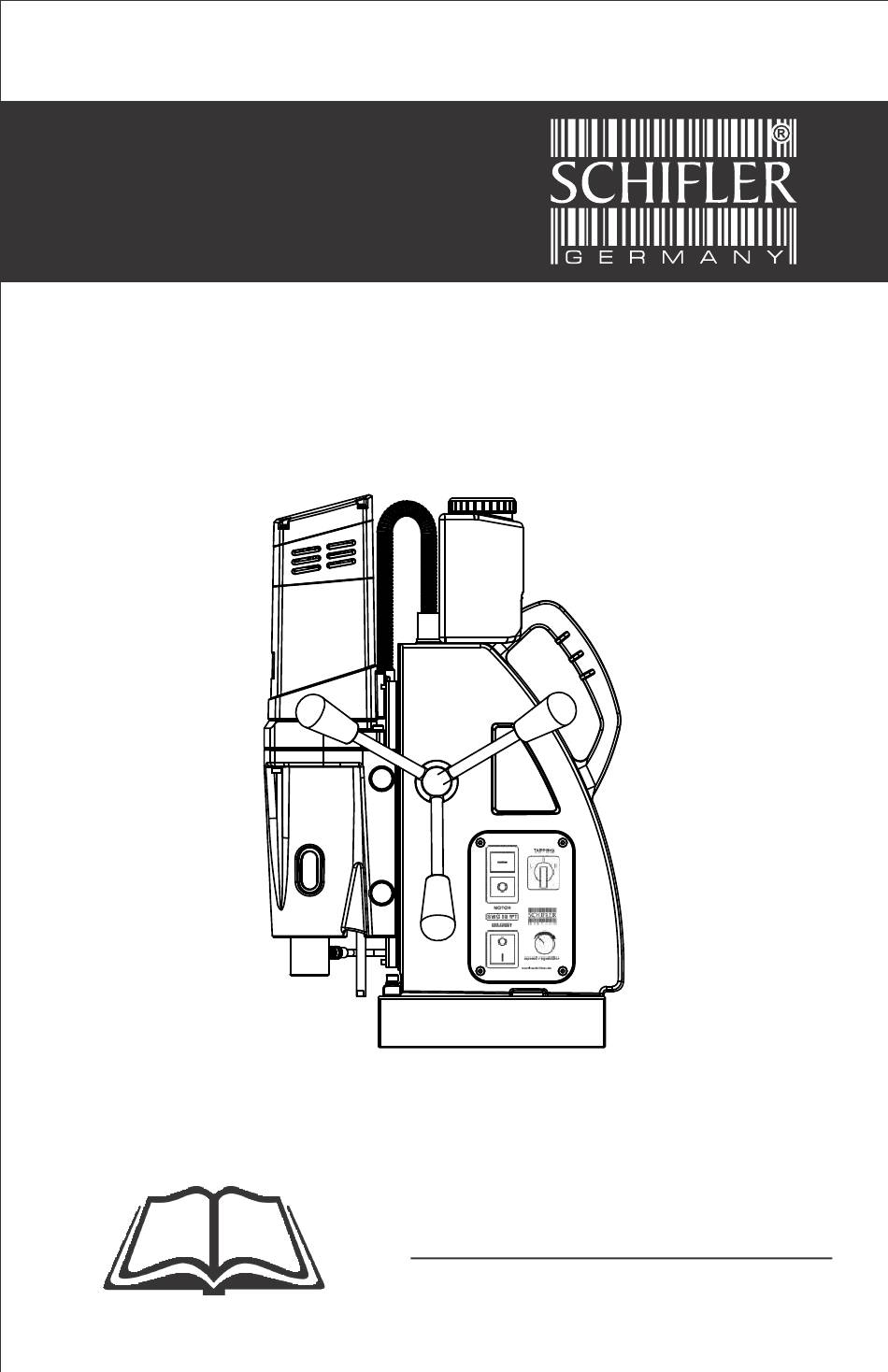

  • Page 1 Magnetic Drilling Machine SWC 50 WT OPERATING MANUAL...

  • Page 2: Table Of Contents

    6. Exploaded View 7. Helpful Tips 8. Troubleshooting 9. Warranty This manual is for information only & not a legal document, the company has all SWC 50 WT rights to change, cancel, amend any designs, specifications etc. without any prior notice.

  • Page 3: Description & Technical Data

    Magnetic Drilling Machine Operating Manual DESCRIPTION & TECHNICAL DATA SWC 50 WT Motor power 1500 watt Spindle MT3, 19 mm Weldon Broach cutter ( 35 mm length) ø 12 mm - ø 50 mm Broach cutter (50 mm length) ø 12 mm - ø 50 mm Broach cutter (80 mm length) ø...

  • Page 4: Components Content

    6. 6,0 mm Allen Wrench 1 No. 7. Instruction Manual 1 No. 8. Magnetic Drill Machine 1 No. 9. MT 3x19.05 Arbor 1 No. 10. Pilot Pin 6x50 1 No. 11. Pilot Pin 8x50 1 No. 12. Taper Drift 1 No. SWC 50 WT...
  • Page 5 Use ear Use safety Use eye Please read protection helmet protection the manual Use safety Wear appropriate Disconnect before Use safety gloves clothing opening chain Dangerous Warning for Don’t use in Pacemaker environment electrical shock wet places warning SWC 50 WT...
  • Page 6 WARNING : DO NOT USE YOUR MAGNETIC DRILL ON THE SAME STRUCTURE WHEN ARC WELDING IS IN PROGRESS. D.C. CURRENT WILL EARTH BACK THROUGH THE MAGNET AND CAUSE IRREPARABLE DAMAGE. SWC 50 WT...
  • Page 7 5. Children should never be allowed near the drill machine, especially when it is being operated. 6. Nobody should be in the area where the drill machine is being used by the Operator. SWC 50 WT...
  • Page 8 Turn off the switch and unplug immediately once you stop using the magnetic base. 8. Do not use drilling machine for not more than a total duration of 30 SWC 50 WT...
  • Page 9 17. The generation of the magnetic field affects devices such as watches, mobile phones and pacemaker installed to regulate the heartbeat. Make sure that the operator takes off the watch and keeps off the mobile phone before operating the drilling machine and doesn't have a pacemaker installed in him. SWC 50 WT...
  • Page 10 EC Directive 2002/96/EC-WEEE, also known as Waste Electrical and Electronic Equipment. In case of doubts or queries, contact the Department of Waste Disposal. 2. Disposal of grease: Follow the instructions given by the lubricant's manufacturer. SWC 50 WT...

  • Page 11: Accessories

    Magnetic Drilling Machine Operating Manual OPTIONAL TOOLS & ACCESSORIES Weldon Drill Chuck Adaptor Weldon Tapping Adaptor Drill Chuck Weldon Counter Sink MT 3 Arbour Core Drill Pilot Pin Taper Drift SWC 50 WT...

  • Page 12: Operating Manual

    Ensure that the magnetic drilling unit is secure on the working piece. Fill the arbor with lubrication/cutting oil in the special meant holes. Always use cutting oil from your dealer. Start the motor by pressing the green motor start button (I). SWC 50 WT...

  • Page 13: Drilling With Twist Drills

    These adapters will allow you to attach a drill chuck on to the hole cutter arbor. Also twist drills with a direct Weldon connection are available (ranging from Ø 6 – Ø 12 mm) Place the machine at the desired position Switch on the magnet SWC 50 WT...
  • Page 14 It might be possible that while shifting the gears it could have stuck with the already selected speed gear, adjust spindle of the machine by moving it clockwise and anti clockwise direction simultaneously moving the speed knob. SWC 50 WT...

  • Page 15: Thread Cutting

    TAPPING IS ONLY RECOMMENDED FOR THROUGH HOLES. Various tapping adaptors are used for thread cutting with your magnetic drilling machine SWC 50 WT These adapters will allow you to attach tap on the hole cutter arbor. Attach desired tap to the adaptor.

  • Page 16: Counter Sinking

    1. You can make use of the machine for the process of Reaming or Counter- sinking too, considering the machine's wide range of speed availability to operate. 2. In this process, always observe the limitations stated in the technical data for the tools to be made use of. SWC 50 WT...

  • Page 17: Exploaded View

    Magnetic Drilling Machine Exploded View SWC 50 WT Motor complete / Antriebseinheit SWC 50 WT...
  • Page 18 ø17 0709311707744 Main Shaft Gear Z45m1h15 0709311707751 Ball Bearing 6003 2RS 0709311707768 Inner Frame Rotary Lip Seal ø20xø32x6 0709311707775 Ball Bearing 6006 ZZ 0709311707782 Circlip ø55 0709311707799 B5x5x12 0709311707805 Spindle Drive Shaft ø34x145 MT3 SWC 50 WT...
  • Page 19 Magnetic Drilling Machine Exploded View SWC 50 WT Magnetic frame / Magnetbohrständer SWC 50 WT Circuit Diagram / Schaltplan MOTOR SWITCH Field Coil Magnet ON / OFF SWC 50 WT SWITCH...
  • Page 20 Magnetic Drilling Machine Magnetic Drilling Machine Exploded View Exploded View SWC 50 WT Magnetic frame / Magnetbohrständer Part no. Article Article Description 0709311695027 Main Body 50-344x215x94 0709311695034 PCB Box 66x52x30.5 0709311695041 screws M3x12 0709311695058 220V 0709311710126 Capacitor 0709311710133 Transistor 0709311695065...
  • Page 21 TIP: Most situations which cause problems or question marks have already occurred for other users. Contact Schifler or your dealer to see if a solution exists for your situation. (example: for drilling into non-magnetic material with your magnetic drill, a special vacuum system has been designed).

  • Page 22: Troubleshooting

    The connecting nipple has gotten clogged. Do a deep cleaning of the tank and the nipple. The lubricant tap is jammed or has gotten closed. Open the tap. Contact the Customer Service immediately if the steps and remedies described above do not solve your problem. SWC 50 WT...

  • Page 23: Warranty

    Magnetic Drilling Machine Operating Manual WARRANTY The warranty period for Schifler Magnetic Drills equipment is 6 months as of the date of purchase. Damages due to wear and tear, overload or improper handling of the machine are excluded from warranty. Damages that are due to fault in material or defect in fabrication will be remedied free of cost by compensation delivery or repair.
  • Page 24 Fax.: +49 (0) 511 93639 300 Email: info@schifler.de Middle East Asia Pacific Schifler Werkzeuge & Co. Schifler Werkzeuge Middle East FZC B-24, 1st Floor, Street No.9, Anand Parbat UAQ Free Trade Zone, P.O. Box : 7073, Industrial Area, Delhi-110005, INDIA Umm Al Quwain, U.A.E.
