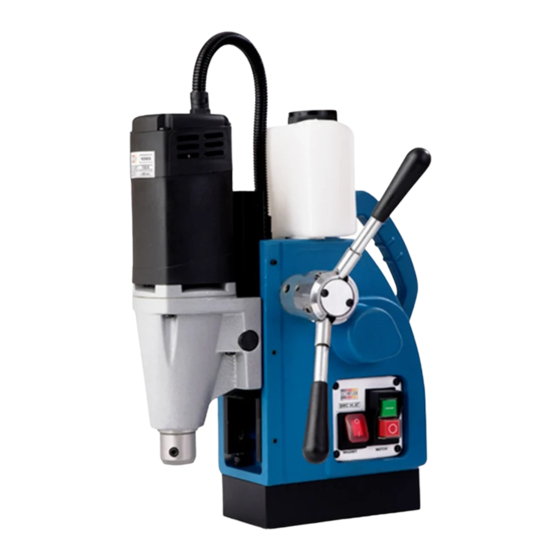

Magnetic Drilling Machine
AT
FULLY
AUTOMATIC
SWC 35 AT
SWC 35 AT
OPERATING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWC 35 AT and is the answer not in the manual?

Questions and answers

Related Manuals for Schifler SWC 35 AT

Summary of Contents for Schifler SWC 35 AT

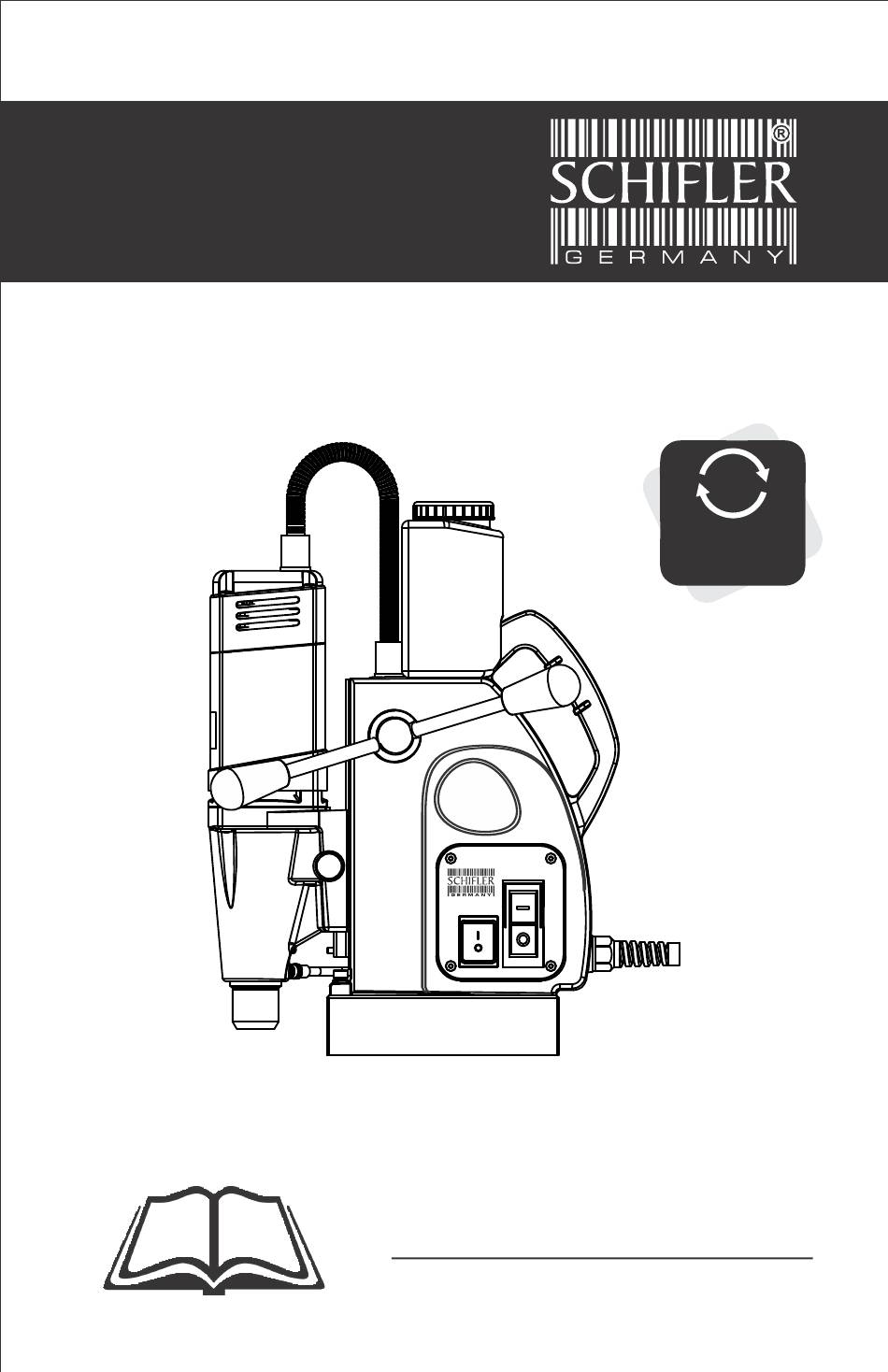

  • Page 1 Magnetic Drilling Machine FULLY AUTOMATIC SWC 35 AT SWC 35 AT OPERATING MANUAL...

  • Page 2: Table Of Contents

    6. Exploaded View 7. Helpful Tips 8. Troubleshooting 9. Warranty This manual is for information only & not a legal document, the company has all SWC 35 AT rights to change, cancel, amend any designs, specifications etc. without any prior notice.

  • Page 3: Description & Technical Data

    Magnetic Drilling Machine Operating Manual DESCRIPTION & TECHNICAL DATA SWC 35 AT SWC 35 AT 1100 watt Motor power Spindle 19 mm (3/4”) Weldon Broach cutter (35 mm length) Ø12 mm - Ø35 mm Ø12 mm - Ø35 mm Broach cutter(50 mm length) Twist drill Upto Ø13 mm...

  • Page 4: Components Content

    6. 6,0 mm Allen Wrench 1 No. 7. Instruction Manual 1 No. 8. Magnetic Drill Machine 1 No. 9. Pilot Pin 6x50 1 No. 10. Pilot Pin 8x50 1 No. 11. Drill Chuck Adaptor 1 No. 12. Drill Chuck 1 No. SWC 35 AT...
  • Page 5 Use ear Use safety Use eye Please read protection helmet protection the manual Use safety Wear appropriate Disconnect before Use safety gloves clothing opening chain Dangerous Warning for Don’t use in Pacemaker environment electrical shock wet places warning SWC 35 AT...
  • Page 6 WARNING : DO NOT USE YOUR MAGNETIC DRILL ON THE SAME STRUCTURE WHEN ARC WELDING IS IN PROGRESS. D.C. CURRENT WILL EARTH BACK THROUGH THE MAGNET AND CAUSE IRREPARABLE DAMAGE. SWC 35 AT...
  • Page 7 5. Children should never be allowed near the drill machine, especially when it is being operated. 6. Nobody should be in the area where the drill machine is being used by the Operator. SWC 35 AT...
  • Page 8 Turn off the switch and unplug immediately once you stop using the magnetic base. 8. Do not use drilling machine for not more than a total duration of 30 SWC 35 AT...
  • Page 9 17. The generation of the magnetic field affects devices such as watches, mobile phones and pacemaker installed to regulate the heartbeat. Make sure that the operator takes off the watch and keeps off the mobile phone before operating the drilling machine and doesn't have a pacemaker installed in him. SWC 35 AT...
  • Page 10 EC Directive 2002/96/EC-WEEE, also known as Waste Electrical and Electronic Equipment. In case of doubts or queries, contact the Department of Waste Disposal. 2. Disposal of grease: Follow the instructions given by the lubricant's manufacturer. SWC 35 AT...

  • Page 11: Accessories

    Magnetic Drilling Machine Operating Manual OPTIONAL TOOLS & ACCESSORIES Weldon Drill Chuck Adaptor Weldon Tapping Adaptor Drill Chuck Weldon Counter Sink MT 3 Arbour Core Drill Pilot Pin Taper Drift SWC 35 AT...

  • Page 12: Operating Manual

    Ensure that the magnetic drilling unit is secure on the working piece. Fill the arbor with lubrication/cutting oil in the special meant holes. Always use cutting oil from your dealer. Start the motor by pressing the green motor start button (I). SWC 35 AT...
  • Page 13 8. Let machine reverse automatically to its original position in order to get grease rotate and motor to cool down. 9. SWC 35 AT is equipped with over load protection, machine stops automatically sensing over load avoiding cutter breakages. 10. If the slug gets stuck in the cutter, move the machine to a flat surface. Switch on the magnet and gently bring the cutter down in contact with the surface.

  • Page 14: Drilling With Twist Drills

    The drill has to find its way in to the material by itself. It is not necessary to use a lot of pressure. Too much pressure will cause damage and breakage. After the cutting is finished switch the machine off by pushing the red button. SWC 35 AT...

  • Page 15: Exploaded View

    Magnetic Drilling Machine Exploded View SWC 35 AT Motor complete / Antriebseinheit SWC 35 AT...
  • Page 16 Magnetic Drilling Machine Exploded View SWC 35 AT Motor complete / Antriebseinheit Part no. ARTICLE NO. Article Description 0709311710775 Screw ST4.8x60 0709311710782 Motor cap SWC 35 AT 0709311710799 Screw M4x12 0709311710805 Washer 0709311710812 Carbon brush 18x6.2x9.9 220V 0709311710829 Carbon brush holder 18x6.2x9.9...
  • Page 17 Magnetic Drilling Machine Exploded View SWC 35 AT Magnetic frame / Magnetbohrständer SWC 35 AT...
  • Page 18 Magnetic Drilling Machine Exploded View SWC 35 AT Magnetic frame / Magnetbohrständer 29 28 27 26 25 24 23 21 20 31 30 SWC 35 AT Circuit Diagram / Schaltplan...
  • Page 19 Magnetic Drilling Machine Exploded View SWC 35 AT Magnetic frame / Magnetbohrständer Part No. Article Description 0709311710126 MAIN BODY 0709311710133 0709311710140 Screws 0709311710157 Washer 0709311710164 Magnetic base 0709311710171 Spring Washer 0709311710188 Hex Screws 0709311710195 Hex Screws 0709311710201 Hex Screws 0709311710218...
  • Page 20 TIP: Most situations which cause problems or question marks have already occurred for other users. Contact Schifler or your dealer to see if a solution exists for your situation. (example: for drilling into non-magnetic material with your magnetic drill, a special vacuum system has been designed).

  • Page 21: Troubleshooting

    The connecting nipple has gotten clogged. Do a deep cleaning of the tank and the nipple. The lubricant tap is jammed or has gotten closed. Open the tap. Contact the Customer Service immediately if the steps and remedies described above do not solve your problem. SWC 35 AT...

  • Page 22: Warranty

    Magnetic Drilling Machine Operating Manual WARRANTY The warranty period for Schifler Magnetic Drills equipment is 6 months as of the date of purchase. Damages due to wear and tear, overload or improper handling of the machine are excluded from warranty. Damages that are due to fault in material or defect in fabrication will be remedied free of cost by compensation delivery or repair.
  • Page 23 Magnetic Drilling Machine Operating Manual NOTES SWC 35 AT SWC 35 AT...
  • Page 24 Fax.: +49 (0) 511 93639 300 Email: info@schifler.de Middle East Asia Pacific Schifler Werkzeuge & Co. Schifler Werkzeuge Middle East FZC B-24, 1st Floor, Street No.9, Anand Parbat UAQ Free Trade Zone, P.O. Box : 7073, Industrial Area, Delhi-110005, INDIA Umm Al Quwain, U.A.E.
