Service Manual
This service information is designed for experienced repair technicians only and is not designed for use by
the general public. It does not contain warnings or cautions to advise non-technical individuals of potential
dangers in attempting to service a product. Products powered by electricity should be serviced or repaired
only by experienced professional technicians. Any attempt to service or repair the product or products dealt
with in this service information by anyone else could result in serious injury or death.
There are special components used in this equipment which are important for safety. These parts are
marked by
in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential
that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire
or other hazards. Do not modify the original design without the manufacturer's approval.
Please have a static electricity depletion process in place before handling these components.
Please use gloves when handling PCB parts during the repair process.
CONTENTS
1.Specification
2.Parts Identification
3.Wiring Diagram
4.Parts List
FV-0511VQCL1
WARNING
IMPORTANT SAFETY NOTICE
PESMX1710001CE
Version:1902

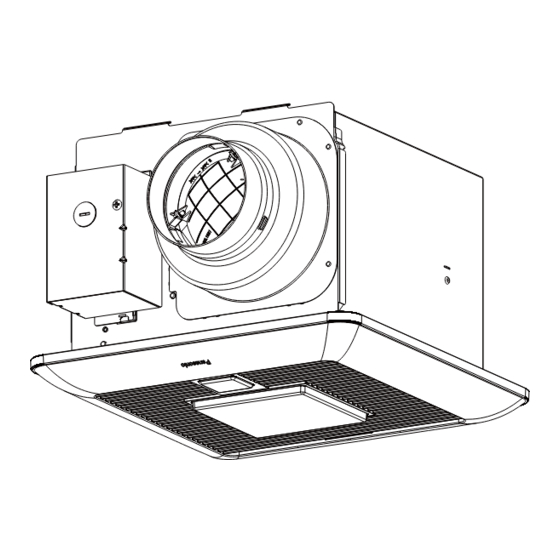

Ventilating Fan
(North America Market)
.
.
PAGE
1
2 ~ 4
5
6 ~ 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Panasonic FV-0511VQCL1
Summary of Contents for Panasonic FV-0511VQCL1
- Page 1 Service Manual Ventilating Fan (North America Market) FV-0511VQCL1 WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
- Page 2 (Hz) (sones) (rpm) lb. (kg) (Inches) (CFM) < 0.3 FV-0511VQCL1 Exhaust 4 or 6 < 0.3 10.1 (4.6) 1016 11.0 HVI Certified performance based on HVI Procedures 915, 916, and 920. Remark: We divide this model into Version A & Version B, because of different motor and Main PCB Section, please put attention with identification of parts when you request a service parts.
- Page 3 2. Parts Identification FV-0511VQCL1 Main Body Section Name Plate 24 B 24 A 80501M 80501 New Motor New PCB (3pcs) 8 A / 8 B (5pcs) (2pcs) 13 A / 13 B Main PCB Section (2pcs)
- Page 4 2. Parts Identification FV-0511VQCL1 Main PCB Section (3pcs) Main Label Part for Version A Part for Version B 80501 80501M 8 Means Year: 2018 8 Means Year: 2018 05 Means Month 05 Means Month 01 Means Day 01 Means Day...
- Page 5 2. Parts Identification FV-0511VQCL1 Packing Section...
- Page 6 Fan body Junction box White Neutral Main control circuit AC120V 60Hz Live (Fan) Black (Power supply) Motor Main control circuit Humidity sensor Green (Ground wire) Selector Motion sensor Humidity Timer setting Live (N.Light) Ｂlue AC120V Neutral White 60Hz Black Live (Light) (Power supply) WHITE Conduit...
- Page 7 4. Parts List FV-0511VQCL1 Main Body Section Part No. Part Name Q'ty Remark FFV11QCL1900C Frame Assembly FFV11QCL1910 Adapter Assembly FFV11QCL1913 Connector Plate FFV11QCL1331 Ground Wire FFV11QCL1301A Connector Assy FFV11QCL1341A Connector Assy (L) FFV11QCL1912A Junction Cover 8A FFV11QCL1M20A Motor Version A...
- Page 8 4. Parts List FV-0511VQCL1 Main Label Part No. Part Name Q'ty Remark 22 FFV11QCL1011A Switch Label 23 FFV11QCL1012A CFM Label 24A FFV11QCL1050 Name Plate Version A 24B FFV11QCL1050M Name Plate Version B 25 FFV0810011S Caution Label 1 26 FFV0810010S Caution Label...
Need help?
Do you have a question about the FV-0511VQCL1 and is the answer not in the manual?
Questions and answers
Light not going off after timer expired. Brand new installation
The Panasonic FV-0511VQCL1 fan has a timer preset selector that controls how long the fan operates. If the light does not turn off after the timer expires, possible reasons include:
1. Incorrect Timer Setting – The timer may be set to a longer duration than expected. The factory setting is 20 minutes, but it can be adjusted between 0.5 to 60 minutes.
2. Faulty Motion or Humidity Sensor – The fan responds to motion and humidity sensors. If these sensors detect movement or high humidity, the fan and light may continue to operate.
3. Wiring Issue – The wiring connections should be checked to ensure the light is correctly wired to the junction box and control circuit.
4. Defective Main Control Circuit – If the control circuit is malfunctioning, the timer function may not work properly.
Checking the timer settings, ensuring no motion or humidity is triggering continuous operation, and verifying wiring connections can help resolve the issue. If the problem persists, servicing or replacing the control circuit may be necessary.
This answer is automatically generated
