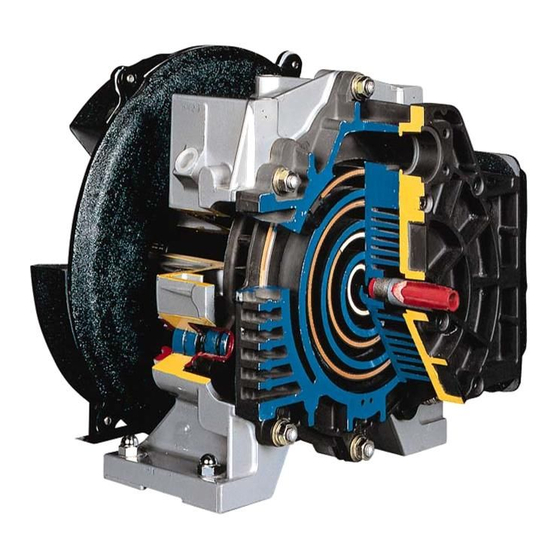

INSTRUCTION MANUAL
OIL-FREE SCROLL AIR COMPRESSOR
SL-140EB-US
SL-165E-US
SL-1651E-US
Thank you for purchasing our Oil-free Scroll air compressor.
●Before operation, be sure to read this instruction manual thoroughly for safe
and efficient use for a long operating lifetime.
●After reading it, store in a convenient place for immediate and future
reading.
Before use, be sure to fill in the blank spaces below for future repair and after service.
MODEL
SERIAL No.
Purchased from
Date of purchase
Date of use
Advertisement
Table of Contents
Related Manuals for Anest Iwata SL-140EB-US
Summary of Contents for Anest Iwata SL-140EB-US
- Page 1 INSTRUCTION MANUAL OIL-FREE SCROLL AIR COMPRESSOR SL-140EB-US SL-165E-US SL-1651E-US Thank you for purchasing our Oil-free Scroll air compressor. ●Before operation, be sure to read this instruction manual thoroughly for safe and efficient use for a long operating lifetime. ●After reading it, store in a convenient place for immediate and future reading.
-
Page 2: Important Information And Safety Precautions
Important information and Safety precautions ▪ Important information Read all important information and safety precautions before use. The operator shall be fully knowledgeable of the requirements stated within this instruction manual, including important warnings, cautions and operation. Read manual before performing any maintenance. Keep this booklet in an appropriate place for immediate reference. -
Page 3: Safety Precautions
Important information and Safety precautions ▪ Safety precautions WARNING Install in a safe area. To prevent a fire or explosion, install in an area free of flammable gases or organic solvents. Never install outdoors. To prevent fire or electric shock, never install outdoors. Turn off the main electric source. - Page 4 Important information and Safety precautions WARNING Use genuine parts. Be sure to use our genuine parts during maintenance to prevent unit failure or shortened lifespan. Do not touch. To prevent serious injuries, never attempt to touch the fan, pulley or belts while unit is operating.
- Page 5 Important information-Safety precautions CAUTION Use at ambient temperature of 36°F to 104°F. Using less than 36°F will freeze the drain and cause failure. Using over 104°F will damage or shorten the life of the unit. Use in an area free of dirt and dust. Failure to do so may result in equipment failure.
-
Page 6: Table Of Contents
Contents Important information and Safety precautions ▪ Important information ------------------------------1 ▪ Safety precautions------------------------------------2 Contents ▪ Contents ------------------------------------------------5 Before use ▪ Inspect the product ----------------------------------6 Installation ▪ Precautions about installation -----------------------7 Maintenance and Inspection ▪ Maintenance standards --------------------------------8 Operating Range ▪ Operating range -------------------------------------------10 Warranty ▪... -
Page 7: Before Use
Before use ▪ Inspect the product to be sure you have the model you ordered. • Check for any deformities or damages which occurred during shipment. Any shipping damages must be immediately filed with the freight carrier. • The following accessories are included: o Pump instruction manual o Attention sheet o Elbow 3/8”... -
Page 8: Installation
Installation ▪ Precautions about installation WARNING Do not use in an area which is exposed to rain, steam or high humidity. High humidity can cause electric shock or fire. Do not install in an area with corrosive gas (ammonia, acid, salinity, ozone gas and sulfur dioxide) preventing a shorter lifespan of the unit. -
Page 9: Maintenance Standards
Maintenance The following maintenance is required at specific intervals. These intervals are based on conditions where the ambient temperature is around 86°F. If your location is warmer or running condition is more severe, maintain within a shorter period. During warmer conditions, shorten the period approximately 70% from our recommendation at every 9°F. If the operating hour is over 15 hours per day, please shorten 70% from our recommended maintenance period. - Page 10 Maintenance • For 145psi model (SL-140EB and SL-1651E) Maintenance is to be done according to operating hours, or period, whichever comes first. Maintenance period (every hours or period) Every Every 5,000 Every 15,000 Item Detail Every 2,500 Every 10,000 Daily Every 1.5 Every 4.5 Every...
-
Page 11: Operating Range
Operating range ▪ Operating range • 2HP Item SL-140EB Operating pressure Operating RPM 2200 1850 Operating temperature °F 36 to 104 • 3HP Item SL-140EB Operating pressure Operating RPM 3140 2770 Operating temperature °F 36 to 104 • 5HP Item SL-165E SL-1651E Operating pressure... -
Page 12: Warranty
Anest Iwata Air Engineering, or such claim shall be barred. Upon timely receipt of a claim, Anest Iwata Air Engineering shall inspect the product claimed to have a defect, and Anest Iwata Air Engineering shall repair, or, at its option, replace, free of charge, any product which it determines to have had a defect at the time of shipment from Anest Iwata Air Engineering;... - Page 13 ANEST IWATA AIR ENGINEERING, Inc. www.anestiwata.com inquiry@anestiwata.com Toll Free (800)440-0282 No.SL165E-99_rev8.0...
