Baxton Studio 367C Assembly Instruction

ASSEMBLY INSTRUCTION
Read this instruction carefully. Remove all wrapping material, staples and straps from the carton.
See hardware and furniture part list
For guidance. Be sure you have all wooden furniture parts on a clean and flat soft surface, such as
a carpet or rug, to prevent from being scratched.Follow the figure to start assembling.
CAUTION :
1. Do not FULLY - TIGHTEN the nut or screw untill all is ready to assemble.
2. Do not OVER - TIGHTEN the nut or screw to avoid causing damages to the thread.
3. Keep all hardware part out reach of children.

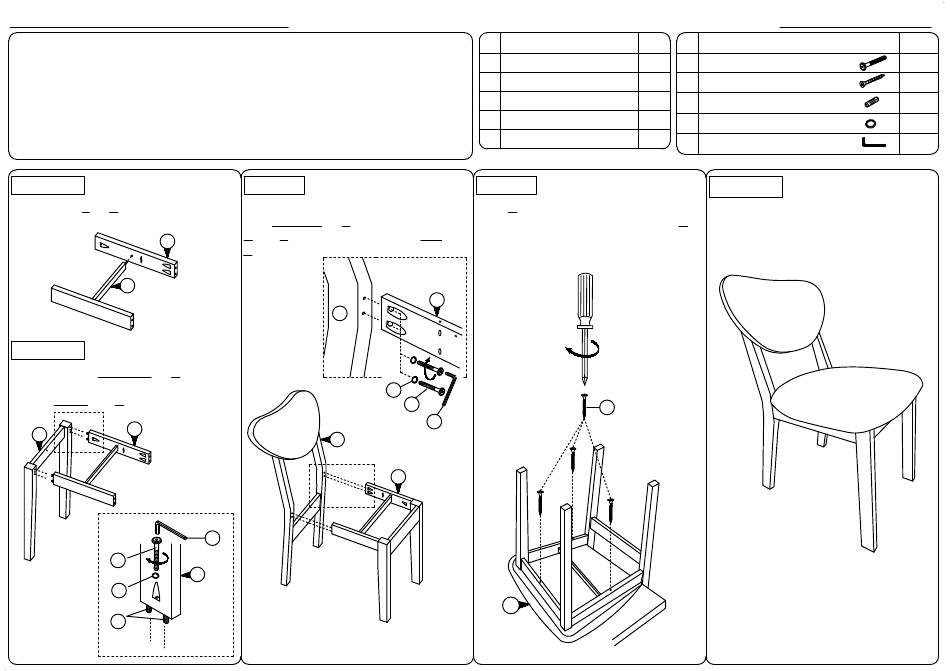

STEP 1.1

Firstly, stick E to C for both left and
right side.
C
E

STEP 1.2

Then, attached STEP 1.1 to B according
to the hole and lock using hardware
number 1,3,4 and 5.
C
B
1
4
3

STEP 2

Proceed with combine the whole part
from STEP1.2 to A . Tighten the part of
C and A using hardware number 1,4 and
5 .
A
A
5
C
NO

PART LIST

A BACK REST
FRONT LEG
B
SIDE RAIL
C
D CUSHION SEAT
E CENTER SUPPORT

STEP 3

Stick D to the whole assemble part and
fully-tighten it with hardware number 2 .
C
4
1
5
C
D
MODEL : 367C
QTY NO DESCRIPTION
1 PC 1 JCBC SCREW M6 X 50MM
1 PC
2
CSK SCREW M4 x 30MM
2 PCS
3 WOOD DOWEL Ø8 x 30MM
1 PC
4 SPRING WASHER
1 PC
5 5 M4 ALLEN KEY

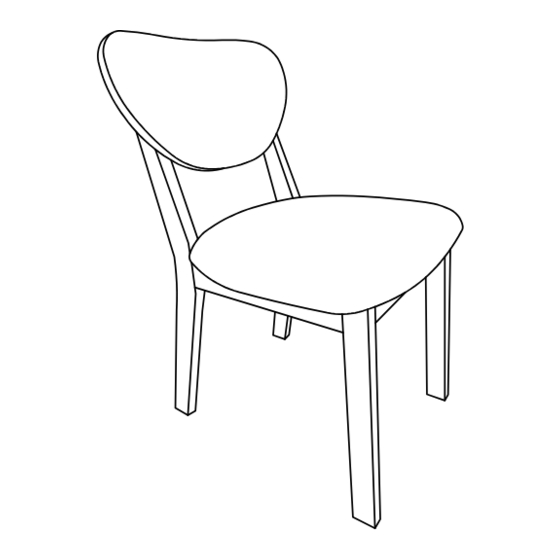

STEP 4
2 X 3PCS
CUSHION
SEAT
COMPELETE
ASSEMBLE
QTY
6 PCS
3 PCS
4 PCS
6 PCS
1 PC
