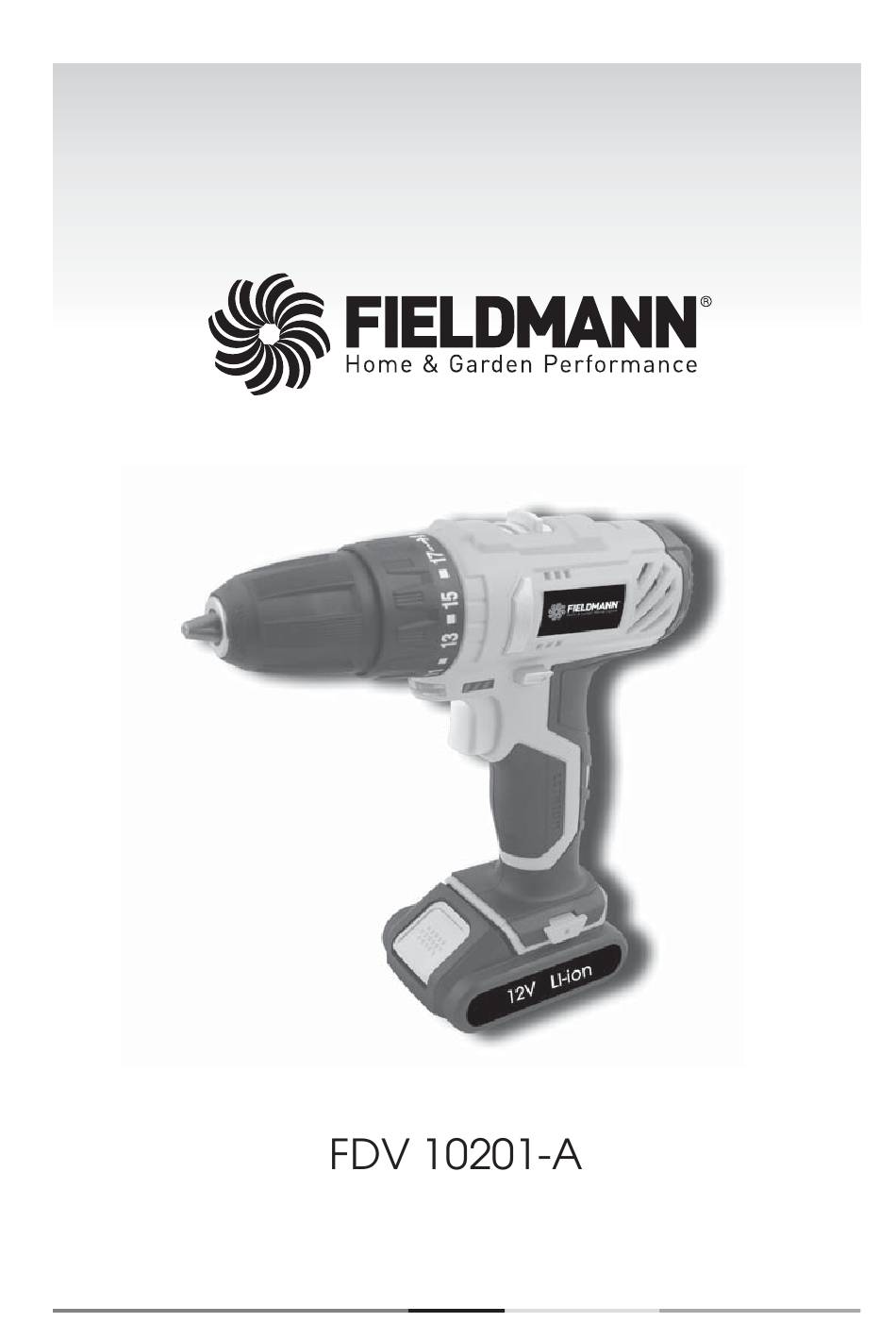

  • Page 2 CORDLESS DRILLS OPERATING INSTRUCTIONS...

  • Page 4: Table Of Contents

    Contents Cordless Drill USER'S MANUAL Thank you for purchasing this cordless drill. Before you start using it, please, carefully read this user's manual and save it for possible future use. CONTENTS ILLUSTRATED ATTACHMENT ..........................3 1. GENERAL SAFETY REGULATIONS ......................... 6 Important safety notices Packaging Operating instructions...

  • Page 5: Packaging

    General safety instructions 1. GENERAL SAFETY INSTRUCTIONS WARNING! Carefully read the instruction manual before use. Important safety warnings Unpack the product carefully and be sure not to throw away any part of the package before having found all components of the product. Keep the product in a dry place out of reach of children.
  • Page 6 General safety instructions GENERAL SAFETY INSTRUCTIONS Carefully read, remember and keep these safety instructions WARNING! In the use of electric machines and power tools, it is necessary to respect and follow the following safety instructions for the reasons of protection against electric shock, personal injury and danger of fire.
  • Page 7 General safety instructions If an extension cord is used, always check whether its technical parameters match the information specified in the type label of the power tool. When operating a power tool outdoors, use an extension cord suitable for outdoor use. If extension drums are used, these must be rolled out to prevent overheating of the cord.
  • Page 8 General safety instructions Power Tool Use and Maintenance Always disconnect the power tool from the mains in case of any problem during the work, before cleaning the power tool or its maintenance, during each transportation and after the completion of the work! Never operate a power tool if it is damaged in any way. Immediately stop working if the power tool generates abnormal noise or smell.
  • Page 9 General safety instructions Handle the batteries with care. Rough handling could result in leak of chemical substance from the battery. Avoid contact with such substance and if, nonetheless, any contact occurs wash the affected area under running water. If eyes get into contact with the chemical substance seek immediately medical aid.

  • Page 10: Symbols

    Symbols 2. SYMBOLS The product complies with the applicable standards and regulations. Read the Instruction Manual attentively prior to use. Use ears protectiove equipment Use eyes protective equipment Use ears protectiove equipment Thread of jig.

  • Page 11: Machine Description And Included Contents

    Machine description and included contents | Putting into operation 3. MACHINE DESCRIPTION AND INCLUDED CONTENTS Supplied contents Carefully take the machine out of the packaging and check whether all the following parts are present: Cordless drill with battery Battery charger station User's manual If there are parts missing or they are damaged, please contact the vendor from whom you bought the machine.

  • Page 12: Drill Chuck

    Putting into operation 5. As soon as the battery is fully charged, the green indicator light will stay on and the red indicator light will turn off. 6. After fully charging, disconnect the charger from the power socket. Before fi rst use the battery must be fully charged.

  • Page 13: Instructions For Proper Use

    Instructions for proper use 5. INSTRUCTIONS FOR PROPER USE Fully charge the battery before fi rst use. Ensure that the used drill bits and extension pieces are designed for the given task and that they are securely fastened. Check that the direction switch is set in the position for the desired rotation direction.

  • Page 14: Overload

    Instructions for proper use | Operating instructions More advice about drilling 1. We recommend to secure the workpiece to the workbench so that you achieve the best results and safely operate the tool. 2. Use only sharpened drill bits. Blunt drill bits put an unnecessary load on the drill and may cause the motor to burn.

  • Page 15: Purpose Of Use

    Operating instructions Pay constant attention, watch what your are doing and think when working with power tools. Do not use power tools if you are tired or under the infl uence of drugs, alcohol or medication. A moment of carelessness when working with power tools may lead to serious injury.

  • Page 16: Electrical Safety

    Operating instructions Do not place the product near heaters, open fi res or other appliances or equipment that are sourcesof heat. Do not spray the product with water or any other liquid. Do not pour water or any other liquids into the appliance.

  • Page 17: Safety Instructions For The Battery And Charger

    Operating instructions Safety instructions for the battery and charger Use only the battery and charger supplied with this tool. Connect the charger only to a mains power socket with a voltage of 230V. Protect the battery and charger from moisture. Do not use the device in an outdoor environment. Disconnect the charger from the mains power socket when the charger is not being used, before cleaning the charger or before performing repairs on it.

  • Page 18: Maintenance And Storage

    Mainetance and storage 7. MAINTENANCE AND STORAGE Maintenance ATTENTION: Disconnect the charger if you will not be using it for a long time, if you are changing the tool or performing maintenance on the tool. This tool does not require any special maintenance. The same applies to the electrical parts of the tool. Check whether the device is showing signs of wear.

  • Page 19: Storage

    Mainetance and storage Use hearing protection. Excessive noise levels may cause hearing damage. When performing tasks, where the working tools may come into contact with hidden electrical conductors, hold the electric power tool by the insulated part that is intended to be held. A work tool that comes into contact with a "live"...

  • Page 20: Technical Specifications

    Technical specifications 8. TECHNICAL SPECIFICATIONS Cordless Drill: Nominal voltage Idling speed 0 / 0 - 1 0rpm Battery 1.3Ah, Li-ion Torque positions + (drilling position) Max. diameter Ø1 mm Level of acoustic pressure dB, K = 3dB Level of acoustic power dB, K = 3dB Charger: Input voltage...
  • Page 21 Technical specifications （ ） CORDLESS DRILLS OPERATING INSTRUCTIONS...

  • Page 22: Disposal

    Disposal 9. DISPOSAL INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste.

  • Page 23: Declaration Of Conformity

    Declaration of conformity Prage Ing. Zdeněk Pech Chairman of the Board . .2017...
