Summary of Contents for Fieldmann FASTPOWER 20V Series

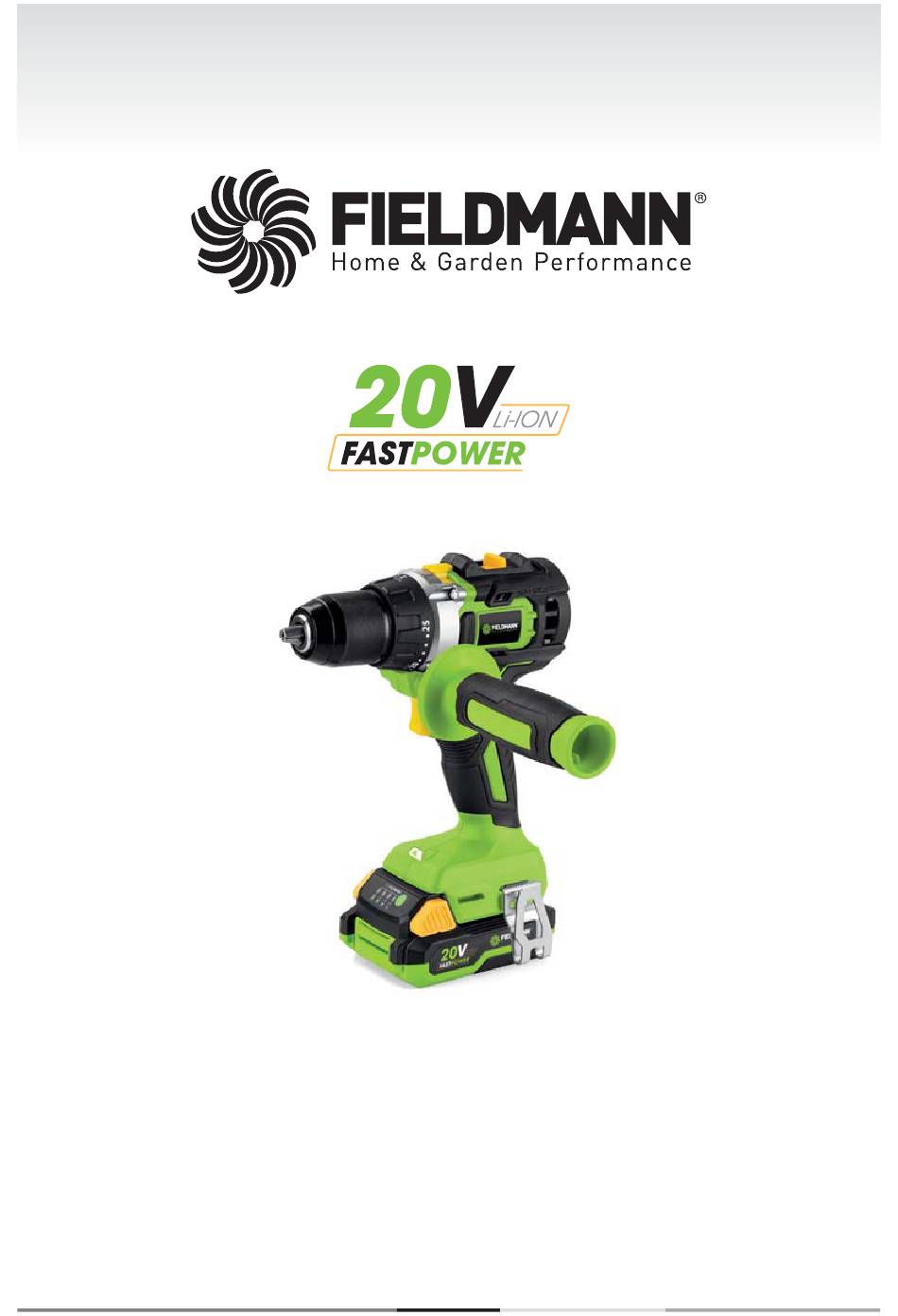

  • Page 1 FDUV 70215-0...
  • Page 2 BRUSHLESS CORDLESS DRILL USER’S MANUAL...
  • Page 3 FDUV 70215-0...
  • Page 4: Table Of Contents

    Table of Contents Brushless Cordless Drill USER'S MANUAL Thank you for purchasing this Brushless Cordless Drill. Before you start using it, please carefully read this user's manual and save it for possible future use. CONTENTS 1. GENERAL SAFETY INSTRUCTIONS .......................... 6 2.
  • Page 5: General Safety Instructions

    General safety instructions 1. GENERAL SAFETY INSTRUCTIONS WARNING! Carefully read the instruction manual before use. Important safety warnings Unpack the product carefully and be sure not to throw away any part of the package before having found all components of the product. Keep the product in a dry place out of reach of children.
  • Page 6: Symbols

    Symbols 2. SYMBOLS The product complies with the applicable standards and regulations. Read the Instruction Manual attentively prior to use. Use eyes protective equipment Use ears protective equipment BRUSHLESS CORDLESS DRILL USER’S MANUAL...
  • Page 7: Product Description And Specifications

    Product description and specifications | Operation 3. PRODUCT DESCRIPTION AND SPECIFICATIONS 1. Trigger 2. LED 3. Keyless chuck 4. Torque selector collar 5. Speed selector 6. Control switch 7. Handle 8. Auxiliary Handle 4. OPERATION WARNING! Always remove battery pack before changing or removing accessories. Only use accessories specifically recom- mended for this tool.
  • Page 8 Operation Selecting Hammer, Drill or Drive Action 1. To use the hammer-drilling mode, rotate the application selector collar until the hammer symbol appears in line with the arrow. Apply pressure to the bit to engage the hammering mechanism. Note: The number selected on the torque selector collar has no effect on operation of the drill in hammer mode.
  • Page 9 Operation Selecting Speed The speed selector is on top of the motor housing. Allow the tool to come to a complete stop before changing speeds. See “Applications” for recommended speeds under various conditions. 1. For Low speed, push the speed selector to display “1”. 2.
  • Page 10: Applications

    Applications 5. APPLICATIONS WARNING! To reduce the risk of electric shock, check work area for hidden pipes and wires before drilling or driving screws. Drilling in Wood, Composition Materials and Plastic When drilling in wood, composition materials and plastic, select the drill-only operating mode.
  • Page 11: Operating Instructions

    Operating instructions 6. OPERATING INSTRUCTIONS Operation This product must not be used by children and persons with physical or mental impairments or by inexperienced persons, unless properly trained or schooled in the safe use of the product, or unless they have been properly supervised by a qualifi...
  • Page 12 Operating instructions Use tools in good working condition for tasks for which they are designed. Work only during good visibility or ensure suffi cient artifi cial lighting. Work in a clean and tidy working environment. Make sure that while working you maintain a fi rm and stable stance. Do not forget that falls represent one of the major causes of injuries during accidents.
  • Page 13 Operating instructions Do not expose the electrical tool to rain or a moist environment. The entry of water into the electrical tool increases the risk of injury by electrical shock. Handle the power cord with care. Never use the power cord to carry or move the tool and do not pull on it when you want to disconnect the tool from the power grid.
  • Page 14: Maintenance And Storage

    Maintenance and storage 7. MAINTENANCE AND STORAGE Maintenance ATTENTION! Disconnect the charger if you will not be using it for a long time, if you are changing the tool or performing maintenance on the tool. This tool does not require any special maintenance. The same applies to the electrical parts of the tool. Check whether the device is showing signs of wear.
  • Page 15 Maintenance and storage When performing tasks, where the working tools may come into contact with hidden electrical conductors, hold the electric power tool by the insulated part that is intended to be held. A work tool that comes into contact with a “live” electrical conductor, will cause the uninsulated parts of the tool to become live and may subsequently cause injury by electrical shock to the operator.
  • Page 16: Technical Data

    Technical data 8. TECHNICAL DATA Model FDUV 70215-0 Rated voltage 20 V Lood speed 0–405 RPM, 0–1 900 RPM Max torque 60 Nm Max. diameter 10 mm Impact function Keyless chuck LED light Torque Accessories Item number Accessory FDUZ 79020 Battery pack 2 Ah FDUZ 79040 Battery pack 4 Ah...
  • Page 17: Troubleshooting

    Troubleshooting 9. TROUBLESHOOTING Suspected malfunctions are often due to causes the user can fix themselves. Therefore check the product using this section.In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorized service centre or a similarly qualified specialist if you cannot solve the problem yourself! Problem...
  • Page 18: Disposal

    Disposal 10. DISPOSAL The machine, rechargeable batteries, accessories and packaging should be sorted for environmentalfriendly recycling. Do not dispose of power tools and batteries/rechargeable batteries into household waste! Only for EC countries: According to the European Guideline 2012/19/EU, power tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.
  • Page 19: Declaration Of Conformity

    Declaration of Conformity 11. DECLARATION OF CONFORMITY EU DECLARATION OF CONFORMITY Product / brand: Cordless Drill / FIELDMANN Type / model: FDUV 70215-0 as factory model J0Z-WYT03BLB-18Li DC 20V (battery powered), speed 0-450/0-1900 rpm, diameter max. 13 mm = 83,78-94,06 dB(A), L...
  • Page 22 Jótállási jegy A termék gyártója: FAST ČR, a.s. (U Sanitasu elállásnak nincs helye. A fogyasztó a választott A 151/2003. (IX.22.) Korm.rendeletben meg- 1621, Říčany u Prahy 251 01, Csehország) jogáról másikra térhet át. Az áttéréssel okozott határozott tartós fogyasztási cikk meghibáso- A FAST Hungary Kft.
  • Page 23 A kereskedő tölti ki Megnevezés:................................Típus:................ Gyártási szám: ……………………………………………. A termék azonosításra alkalmas részeinek meghatározása (ha alkalmazható):…………………………………… Vásárlást igazoló bizonylat száma:………………………………………………………………………………. A vásárlás (üzembe helyezés) időpontja: 20......hó.....nap. Kereskedő bélyegzője: Kereskedő aláírása: ………………………………… Kereskedő címe: ……………………………………………… Javítás esetén alkalmazandó A kereskedő vagy szerviznél történő közvetlen bejelentés esetén a szerviz tölti ki A jótállási igény bejelentésének időpontja: ……………………………………………………………………….
