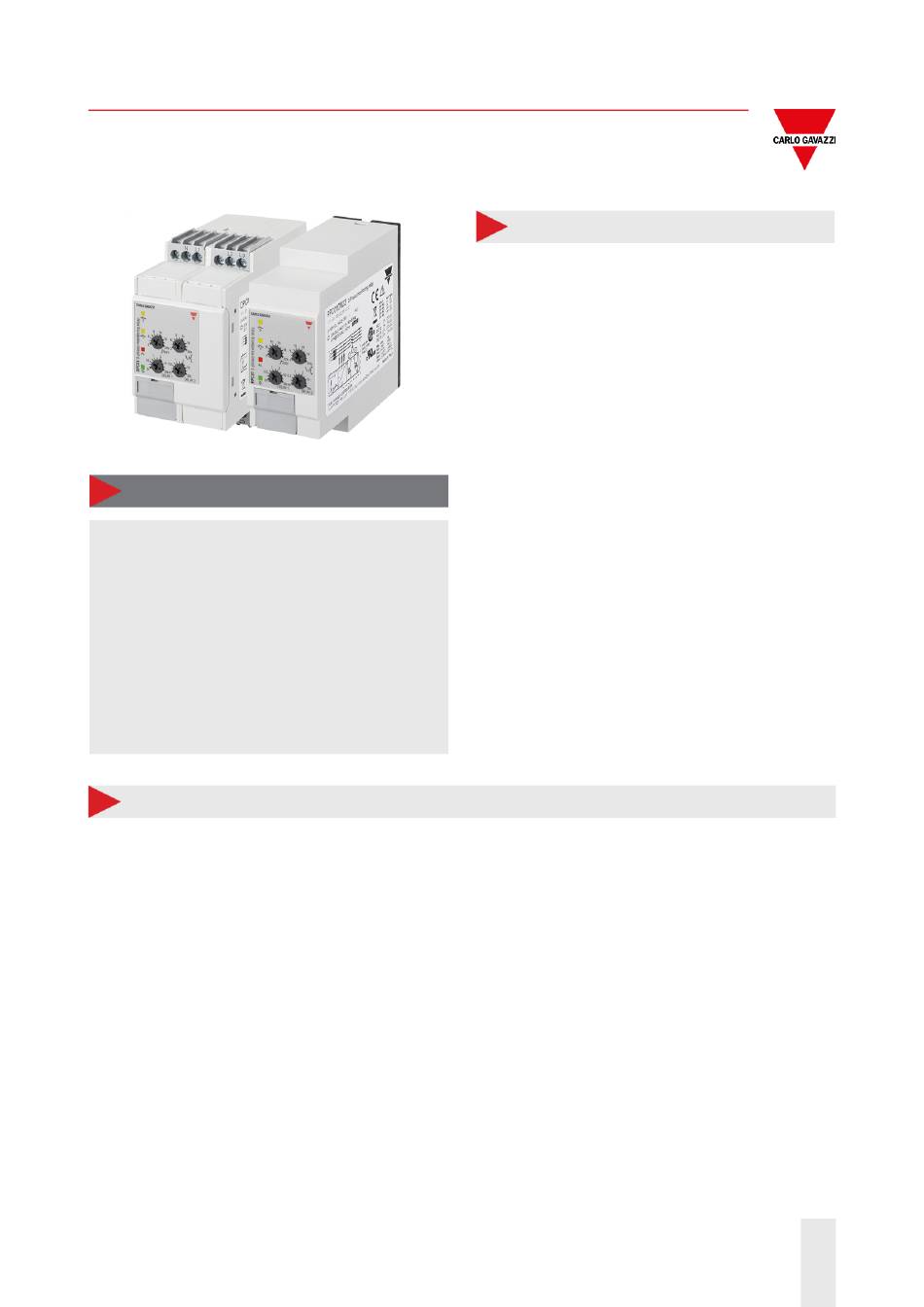

True rms 3-phase voltage monitoring relay

Advertisement

Quick Links

DPC01, PPC01
True RMS 3-Phase voltage monitoring relay
Description
DPC01 and PPC01 are 3-phase mains monitoring
relays.
They operate on 3P and 3P+N systems,
monitoring phase loss and phase sequence,
overvoltage and undervoltage, voltage asymmetry
and tolerance.
Power supply provided by the monitored mains.
Two independent delay functions, up to 30 s, for
over / under voltage and asymmetry / tolerance
alarms.
Main features
Monitoring 3-phase mains with 3 wires (3P) or 4 wires (3P+N).
Detection of the correct phase sequence, phase loss, asymmetry and tolerance.
Front dial adjustable overvoltage, undervoltage, asymmetry and tolerance setpoints.
Time delay.
Two changeover relay outputs.
14/10/2022 DPC01_PPC01_DS_ENG
Benefits
Wide voltages and frequency ranges. Working in
systems from 100 to 690 VAC and 50 to 400 Hz.
Adjustable voltage levels, asymmetry, tolerance
and time delay. To allow a correct response to real
alarm conditions.
Output and status LED indication. For quick
troubleshooting.
Two mounting versions. Available for DIN-rail
(DPC01) and Plug-in (PPC01) mounting.
Adjustable power ON delay. To avoid nuisance
tripping at start-up.
Ultra-high harmonic immunity. For very noisy
environments.
