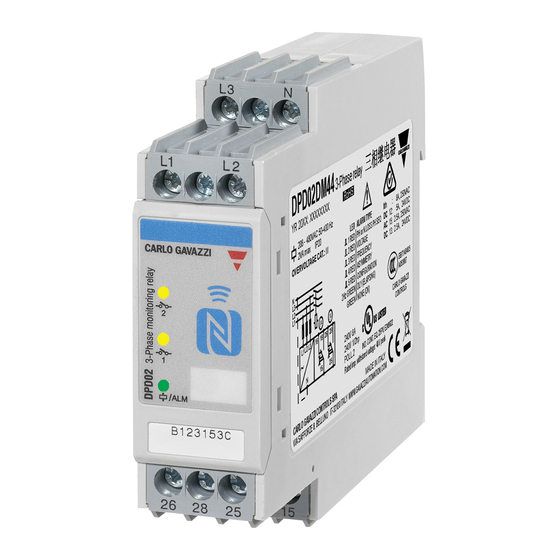

CARLO GAVAZZI DPD02DM44B User Manual

Dpd manager, windows desktop app for dpd setup via nfc communication
Hide thumbs

Advertisement

Quick Links

Download this manual
DPD Manager
Windows Desktop App
for DPD setup via NFC communication
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the DPD02DM44B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CARLO GAVAZZI DPD02DM44B

Summary of Contents for CARLO GAVAZZI DPD02DM44B

  • Page 1 DPD Manager Windows Desktop App for DPD setup via NFC communication User Manual...
  • Page 2 DPD is a three-phase multifunction configurable monitoring relay with NFC communication suitable for both Delta and Star mains. It protects loads from wrong phase sequence, neutral and phase loss, additionally voltage, frequency and asymmetry setpoints can be set and provide output signals.

  • Page 3: Table Of Contents

    Summary DPD Manager Installation ..........................4 Create DPD Configurations .......................... 6 Load Configuration from another DPD ....................14 Actions on the Configuration File ......................16 DPD locking/unlocking ..........................18 Real Time Reading ............................21 Country Default Settings ..........................24...

  • Page 4: Dpd Manager Installation

    Select the 32-bit or 64-bit driver based on your system requirements. Start the Setup file for installing the NFC reader driver. App download: Download the Windows Desktop App from Carlo Gavazzi web site: http://gavazziautomation.com/images/PIM/OTHERSTUFF/Setup_DPD.exe Launch the Setup file Launch the DPD App from desktop or start menu.
  • Page 5 Before proceeding with the specific action to do with the app, in the settings environment, check for available updates, choose the language to use, the NFC reader/writer associated with the PC and if to enable or disable the serial number confirmation popup. The serial number confirmation popup feature is useful when more than one device is sitting side by side to confirm which device is going to be used.

  • Page 6: Create Dpd Configurations

    Create DPD Configurations Select "Create new configuration" from the middle screen button or from "+ Configuration" in the top left menu.
  • Page 7 In the “General” page, enter name (max 64 characters) and description (max 500 characters) of the configuration. Select the line type: • three-phase with neutral (3 PH + N), • three-phase without neutral (3 PH). Then, select the line nominal voltage within the range: •...
  • Page 8 Each of the 10 non-priority alarms can be set as above. Select among "Voltage", "Frequency" or "Asymmetry". Select if the alarm is "Over" or "Under". In case of asymmetry alarm, it is enough to set the percentage. Set the setpoint values, based on the following ranges: •...
  • Page 9 Set the hysteresis value in the range: • voltage and asymmetry, 1 to 5%, • frequency, 0.1 to 5%. Set the delay values in the range: • delay ON alarm, 0 to 60s, • alarm OFF delay, 0 to 600s. The configured alarms show the type and value of the measurement.
  • Page 10 In the “Alarm” page it is possible to enable or disable the phase loss, neutral loss, phase sequence and measurements out of range priority alarms. Considering phase loss alarm, select the “Phase Loss Threshold“ in the range: 60 to 90% of the rated voltage set in the page “GRID TYPE”.
  • Page 11 The purpose is to signal the condition in which the input signals to the device are out of the range in which the DPD is able to make a correct measurement with the required accuracy. IMPORTANT NOTICE! IT IS NOT RECOMMENDED TO CHANGE THE DEFAULT SETTINGS FOR EACH PRIORITY ALARM IF YOU ARE NOT AWARE OF THEIR FUNCTION In the “OUTPUT 1”...
  • Page 12 The overview summarizes the project configuration settings. If the configuration is correct, tap "Apply Configuration" to upload it to the target DPD. When the popup appears, place the ACR1252U next to the DPD front face. If serial number confirmation is enabled, the popup appears.
  • Page 13 As there may be more than one DPD next to the target one, check if it is the correct target DPD. Check it with the one marked on the front face of the DPD. If the DPD is correct, tap "Confirm Relay", otherwise tap "Change Relay” and try again. If serial number confirmation is disabled, the configuration is immediately applied.

  • Page 14: Load Configuration From Another Dpd

    Load Configuration from another DPD The configuration can be downloaded from an already configured DPD to replicate it to another DPD or modify it before using it. To apply this operation, select from the main page "Load from a device" or "+ Configuration" then "Load from a device".
  • Page 15 If serial number confirmation is enabled, the popup shown above appears. Check the serial number of the source DPD. If serial number confirmation is disabled, the configuration is immediately loaded. When the popup shown above appears, the download is completed and the configuration is saved.

  • Page 16: Actions On The Configuration File

    Actions on the Configuration File Configuration files can be exported. Tap “Export Configuration” as shown above. The file can be saved on the PC or sent by email, Skype etc. The configuration can be modified by pressing "Edit Configuration" or the pencil at the top right.
  • Page 17 The configuration can be imported as a file on the PC by pressing "+ Configuration", then "Import from file".

  • Page 18: Dpd Locking/Unlocking

    DPD locking/unlocking When commissioned, the DPDs can be locked to prevent tampering with the configuration. Select "Lock device" or "Unlock device", as shown above. Place the ACR1252U next to DPD front face.
  • Page 19 If serial number confirmation is enabled, the popup shown above appears. Check the serial number of the source DPD. If serial number confirmation is disabled, the app immediately proceeds to the next step. Enter a 4-digit numeric password, then press "Lock" or “Unlock”.
  • Page 20 AFTER THE DPD HAS BEEN LOCKED IT IS NOT POSSIBLE TO UNLOCK IT WITHOUT POWER SUPPLY In case the password has been lost, contact Carlo Gavazzi customer support and follow the steps below: 1) provide the serial number printed on the front face of the DPD to be unlocked.

  • Page 21: Real Time Reading

    Real Time Reading Real time reading is only possible when the DPD is operating. The real time allows reading all the alarms status, the last alarm triggered and the measurement values: voltages L1, L2 and L3, frequency and asymmetry. Tap “Real Time”. Place the ACR1252U next to DPD front face.
  • Page 22 If serial number confirmation is enabled, the popup shown above appears. Confirm if the tracked relay is the correct one. If serial number confirmation is disabled, the real time pages are immediately displayed. In the “Real time” page there are 2 folders: “Alarm status” and “Electrical values”. The “Alarm status”...
  • Page 23 When the line selected is 3P, tapping on the “Electrical Values” folder the top part of the page displays the Line to Line voltages. When the line selected is 3P + N, a second set of measurements is displayed with the Line to neutral voltages.

  • Page 24: Country Default Settings

    Country Default Settings Three different defaults are available to restore the DPD to country settings: • “Generic Default” are those commonly used in Europe, • “Default USA” are those commonly used in USA, • “Default Australian” are those commonly used in Australia. If serial number confirmation is enabled, the popup shown above appears.
  • Page 25 ALARM 2 NORMALLY NORMALLY NORMALLY OUTPUT 2 LOGIC ENERGIZED ENERGIZED ENERGIZED LOGIC NONE NONE NONE OPERATORS The factory settings of the DPD02DM44 are those commonly used in Europe. The factory settings of the DPD02DM44B are those commonly used in USA.
