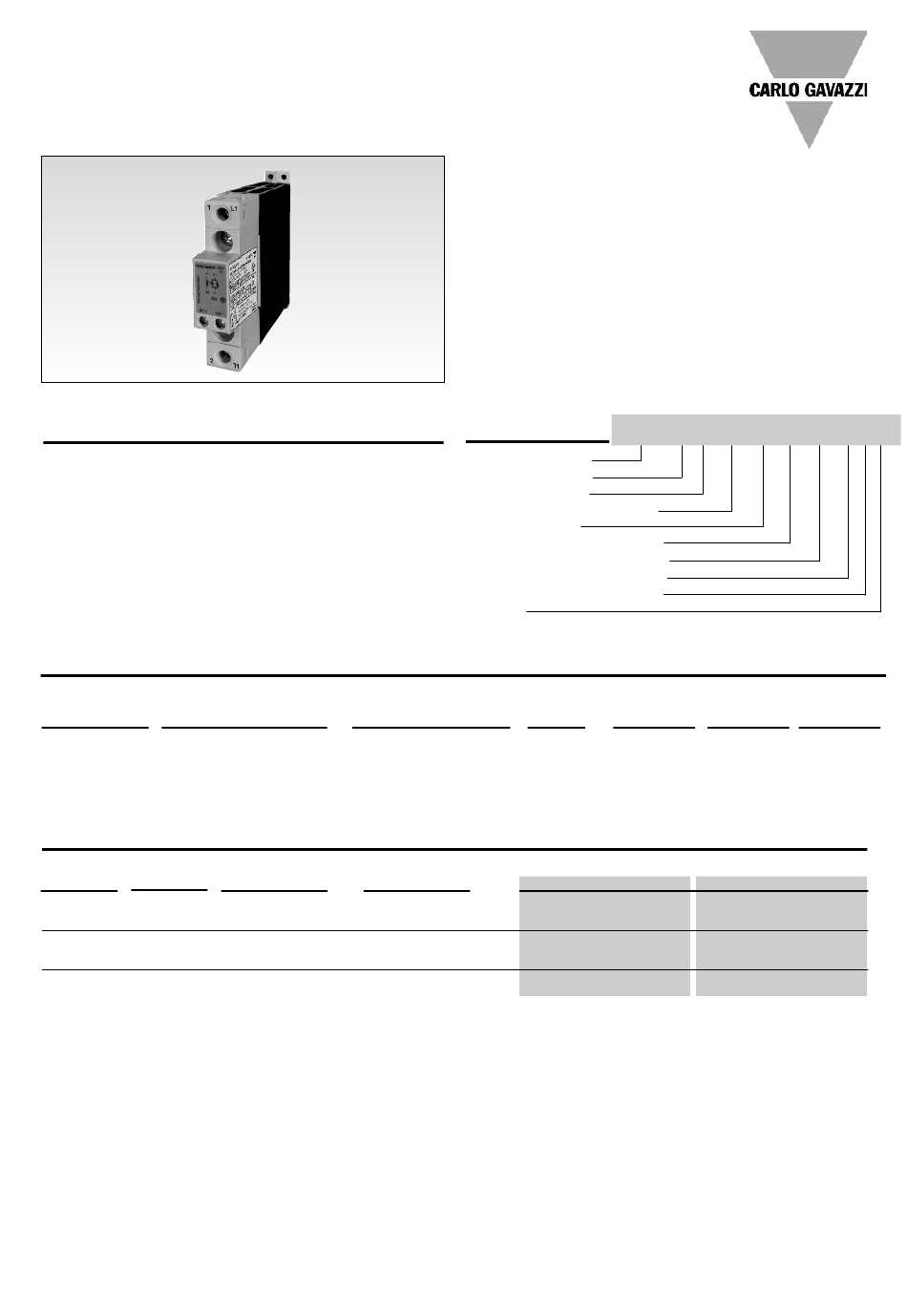

CARLO GAVAZZI RGC1A Quick Start Manual

Solid State Relays
Zero Switching
Types RGC Solid State Contactor 'E' (Contactor) Connection
Product Description
This new range of solid state
contactors presents a unique
opportunity to maximize effi-
ciency in panel space and is an
evolution of solid state switch-
es for which Carlo Gavazzi is
very well known.
The latest technologies in elec-
tronic and power semicondcu-
tor design allows a slim design
Ordering Key
1Phase SSR Rated Voltage
with heatsink
RGC1A: ZC 23: 230V +10% - 15%, 800Vp
RGC1B: IO 60: 600V +10% -15%, 1200Vp
Selection Guide
Rated Output Blocking
Voltage Voltage
230 VAC, ZC 800Vp
600 VAC, ZC 1200Vp
600 VAC, IO 1200Vp
Specifications are subject to change without notice (14.04.2010)
incorporating product ratings
at a surrounding temperature
of 40°C. The smallest width is
17.5mm and is rated at
20 AAC. Power and control
teminals allow for safe looping
of cables. Voltage transient
protection is standard across
the output with a varistor.
Specifications are stated at
25°C unless otherwise noted.
Control Voltage
D: 3 or 4-32VDC
A: 20 - 275VAC, 24-190 VDC
(ZC: Zero Cross Switching, IO = Instant-On Switching)
Connection Control Voltage
Control/ Power
Screw/Screw 3 - 32 VDC
20 - 275 VAC, 24-190 VDC
Screw/Screw 4 - 32 VDC
20 - 275VAC, 24-190 VDC
Screw/Screw 4 - 32 VDC
• Zero Crossing or Instant-On (Random) Switching
• Product Width 17.5mm, 22.5mm
• Rated Operational voltage: Up to 600Vrms
• Rated Operational Current: Up to 30Arms
• Up to 1800A²s for I²t and 1200Vp for blocking voltage
• Control voltages: 3-32 VDC, 20-275 VAC (24-190 VDC)
• IP20 protection
• Design according to IEC60947-4-2, IEC60947-4-3,
IEC62314, UL508, CSA 22-2 No. 14-05
• Integrated voltage transient protection with varistor
• RoHS compliant
Ordering Key
RGC 1 A 60 A 30 K K E _
Solid State Relay
Number of poles
Switching Mode
Rated Operational Voltage
Control voltage
Rated Operational current
Connection type for control
Connection type for power
Connection configuration
Option
Rated Connection
Current Control
20: 20AAC K: Screw
30: 30AAC
Rated Operational Current
20 AAC
RGC1A23D20KKE
RGC1A23A20KKE
RGC1A60D20KKE
RGC1A60A20KKE
RGC1B60D20KKE
Connection Connection
Output configuration
K: Screw E: Contactor
30 AAC
RGC1A23D30KKE
RGC1A23A30KKE
RGC1A60D30KKE
RGC1A60A30KKE
RGC1B60D30KKE
