Project Source ROMAN FR0BD102CP Manual page 5

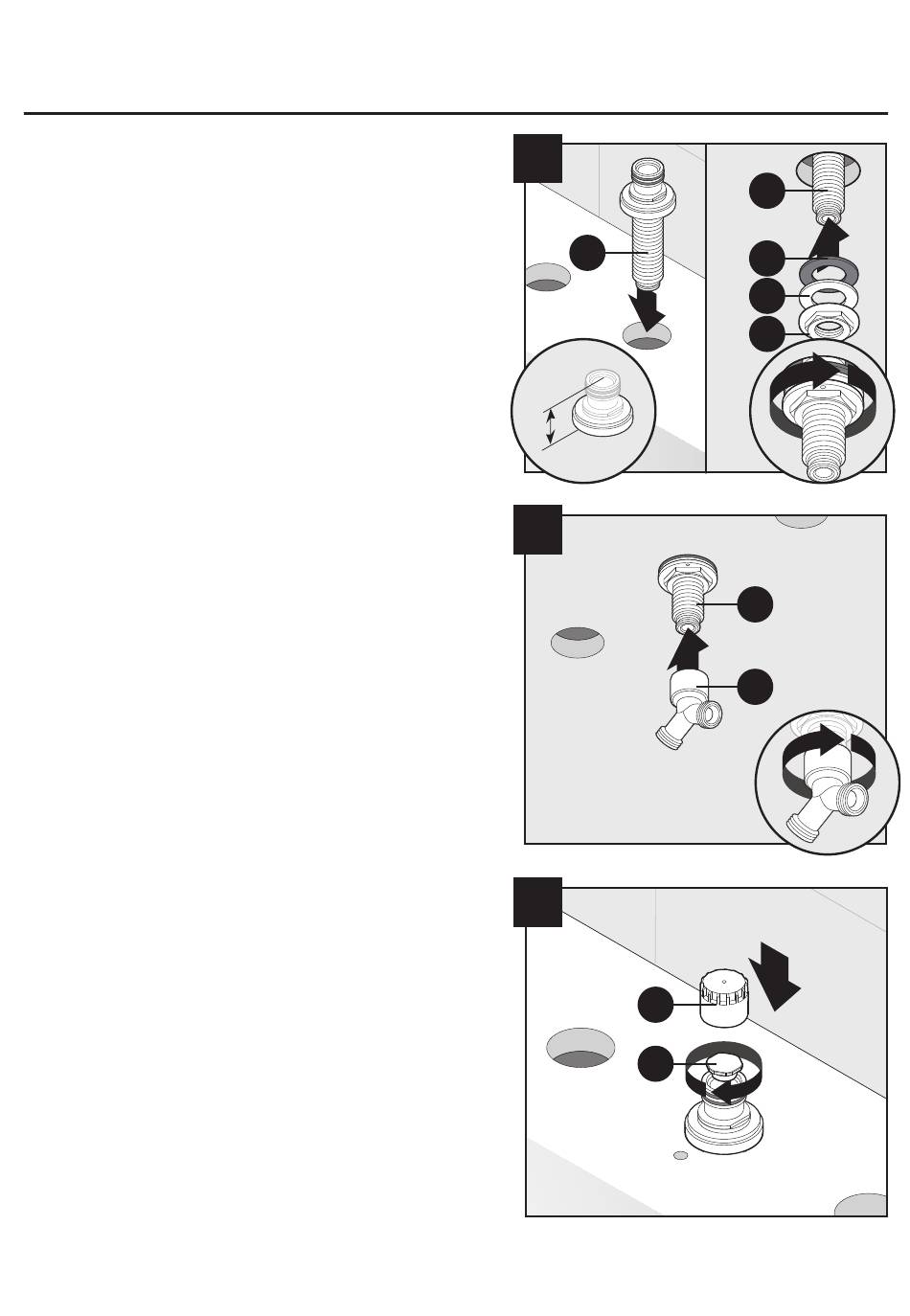

ASSEMBLY INSTRUCTIONS
4. Install spout base (M) through center hole. Adjust
until top of spout base (M) is 1-7/16 in. from the
tub. From below, install spout rubber washer (N)
and spout metal washer (O) and tighten spout
locknut (P).
5. Install "Y" adapter (Q) to spout base (M).
6. Install Test Plug (T) and spout rough in cap (U).
