Project Source ROMAN FR0BD102CP Manual page 4

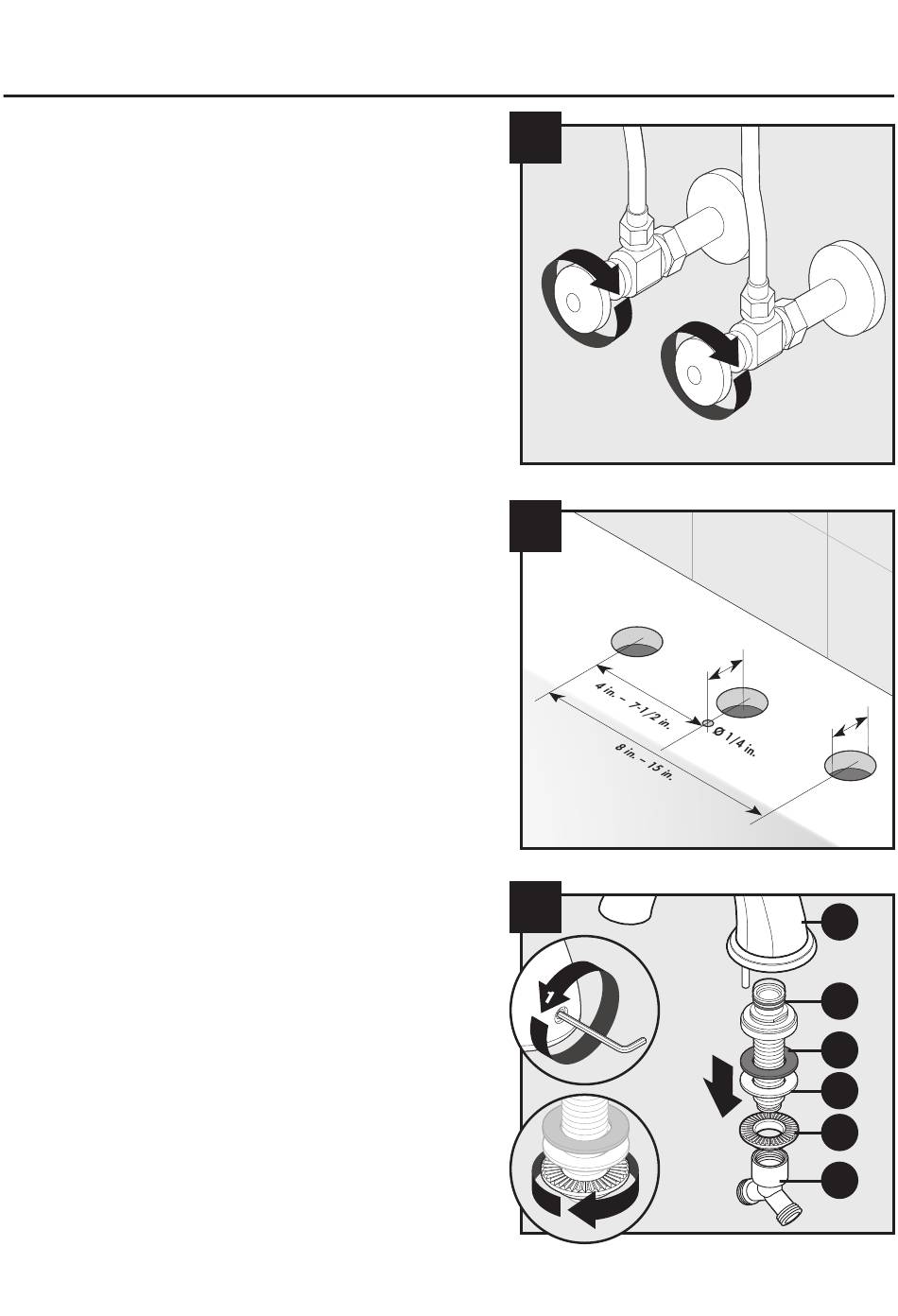

ASSEMBLY INSTRUCTIONS
1. Turn off water supply. Remove existing faucet if
necessary.
2. For proper installation, pre-cut faucet holes
on the tub (not included) should match the
dimensions in this illustration.
NOTE: The Ø1/4 in. hole in front of the spout
mounting hole is for using the spout locating
pin (V) to prevent spout from rotating after
installation. The use of this pin (V) is not
required. To remove this pin (V), simply pull it
out from the bottom of spout trim ring (H).
3. Remove spout base (M) from spout (B) by
loosening screw on spout with hex wrench
(CC) and remove "Y" adapter(Q). Loosen spout
locknut (P) and remove spout rubber washer
(N) and spout metal washer (O) from spout
base (M).
1 1
1
2
2
3
3-1
3
3-2
2
4
i n .
/ 8
1 - 1
i n .
1 1 6
- 5 /
i n .
Ø 1
/ 2
1 - 1
B
M
N
O
3
P
Q
–
